Brother MFC-J6510DW

3-77
Confidential
ADF drive unit and ADF motor

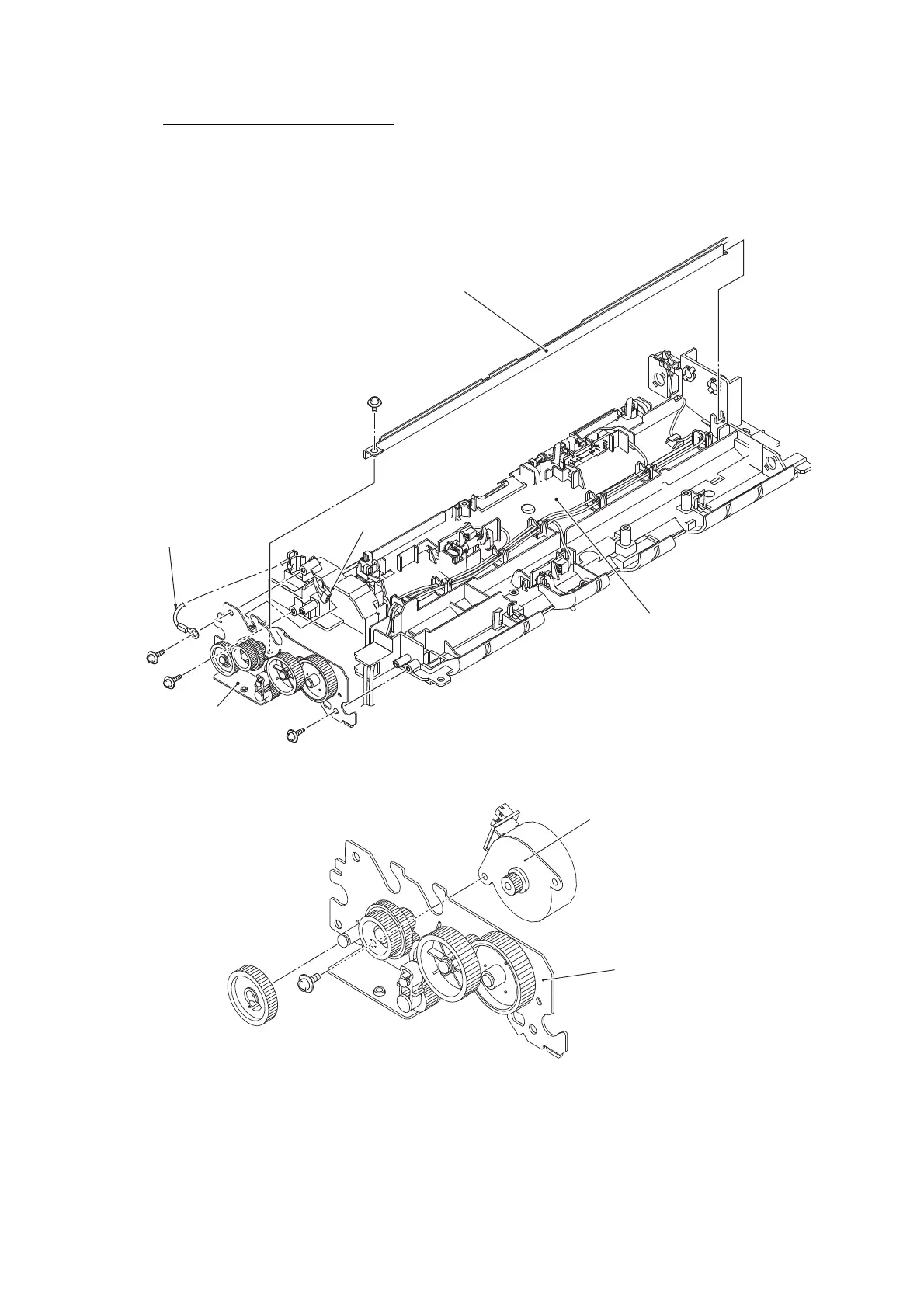

(36) Remove the screw and take up the reinforcement plate.
(37) Remove the three screws (one of them secures the grounding wire together) from the ADF
drive unit. Remove the ADF drive unit from the lower ADF chute while disconnecting the
ADF motor harness from the motor.
(38)Remove the gear and the screw as shown below, and take the motor off the ADF drive unit.
Assembling Note: When mounting the ADF motor on the ADF drive unit, connect the ADF
motor harness to the motor beforehand.
(3_041)
Lower ADF chute
ADF drive unit
Taptite, cup B M3x10
Reinforcement plate
Taptite, cup S M3x6
ADF motor
harness
Grounding wire
(3_042)
ADF drive unit
ADF motor
Screw pan
(s/p washer)
M3x6
