Brother MFC-J6510DW

3-78
Confidential
Document detection actuator, document scanning position detection actuators (for first
side scanning and second side scanning*), and document width detection actuator
*For duplex scanning models

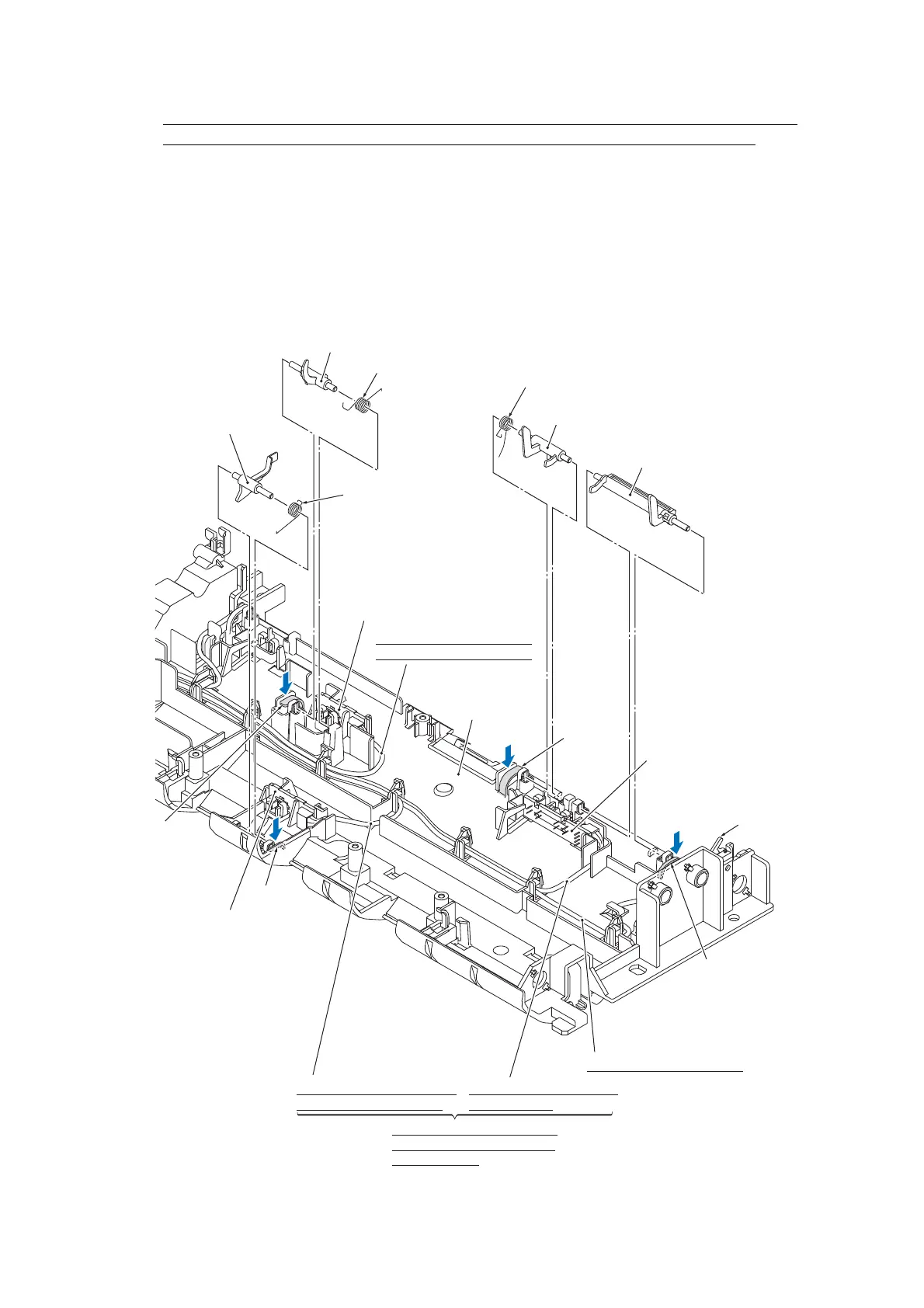

(39) To remove the document detection actuator and the document scanning position detection
actuators (for first side scanning and second side scanning*), lightly press down the lock
arm of each actuator, slide the actuator towards the lock arm, then remove the actuator
together with its spring.
(40) To remove the document width detection actuator, lightly press down the lock arm, slide
the actuator towards the lock arm, then remove it.
(3_043)
* For duplex scanning models
Document scanning
position detection actuator
(for first side scanning)
Actuator spring
Actuator spring
Lower ADF
chute
Lock arm
(Front)
(Document scanning
position sensor PCB
(first side))
(ADF cover
switch)
(ADF cover switch harness)
Actuator spring*
Lock arm
Lock arm
Lock arm
(Document scanning position
sensor PCB (second side))*
Document scanning position detection actuator
(for second side scanning)*
(Document scanning position
sensor harness (second side))*
(Document detection/
width sensor PCB)
Document width detection
actuator
Document detection
actuator
Document scanning position
sensor harness (first side)
Document detection/width
sensor harness
Document detection/width &
scanning position (first side)
sensors harness
