Brother MFC-J6510DW

3-80
Confidential

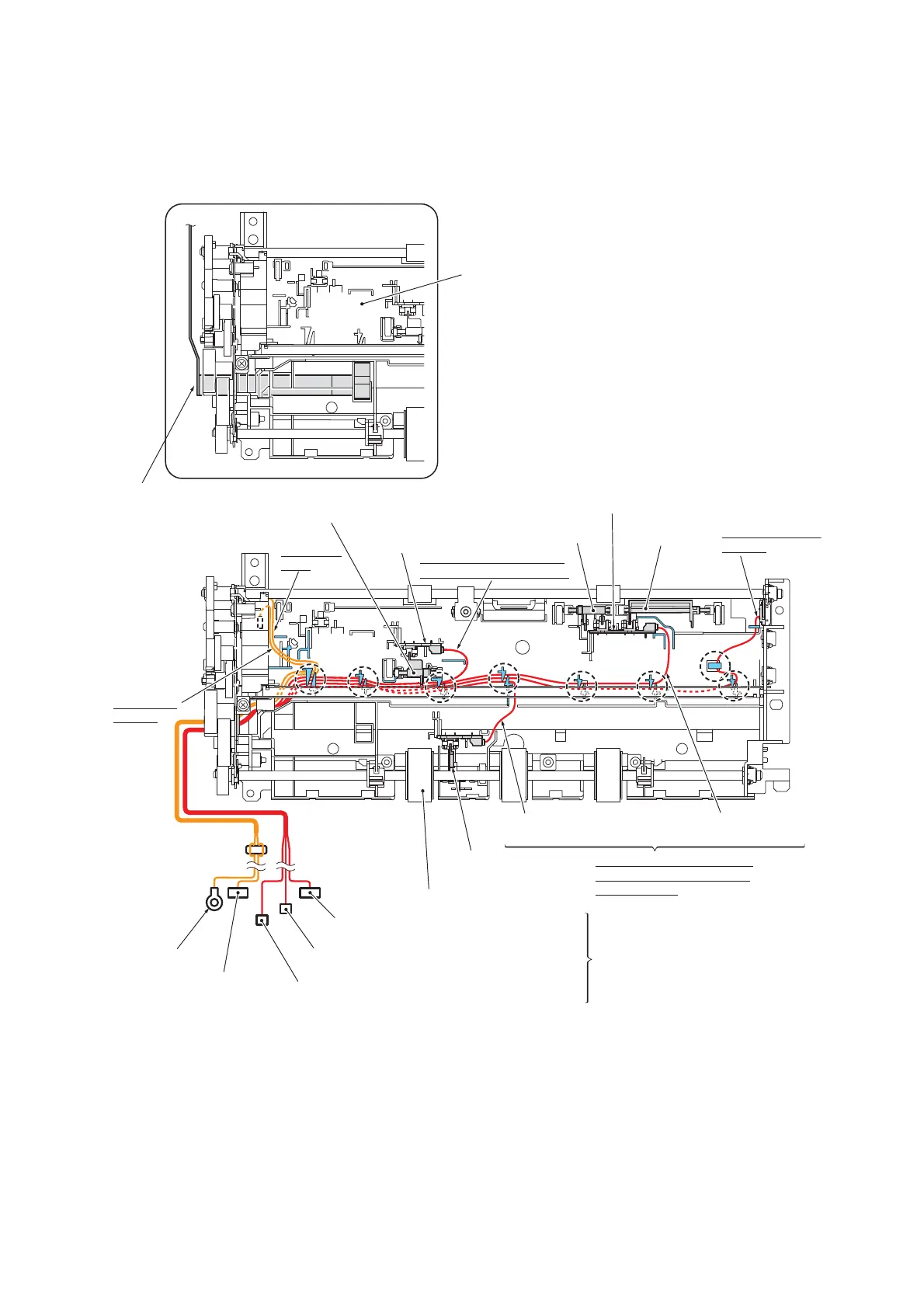

Assembling Note: Route the harnesses of the document detection/width sensor PCB, document
scanning position sensor PCBs (for first side scanning and second side scanning*) and ADF
cover switch on the lower ADF chute, referring to the figures given on page 3-78 and below.
(3_045)
ADF motor
harness
Grounding wire
ADF motor harness
ADF cover switch harness
Document feed roller
(Left)
(Document scanning
position detection actuator
(for first side scanning))
Document scanning position
sensor harness (first side)
Document detection/width
sensor harness
ADF cover switch
harness
(Document width
detection actuator)
Document detection/
width sensor PCB
(Document
detection actuator)
Grounding
wire
* For duplex scanning models
Lower ADF chute
CIS flat cable (white) for
second side scanning*
Document detection/width &
scanning position (first side) sensors harness
Document detection/width &
scanning position (first side)
sensors harness
Document scanning position sensor harness
(second side)*
Document scanning position
sensor harness (second side)*
(Document scanning position detection actuator
(for second side scanning))*
Document scanning position
sensor PCB (second side)*
ADF harness unit
