Brother MFC-J6510DW

3-84
Confidential
Models with touch panel

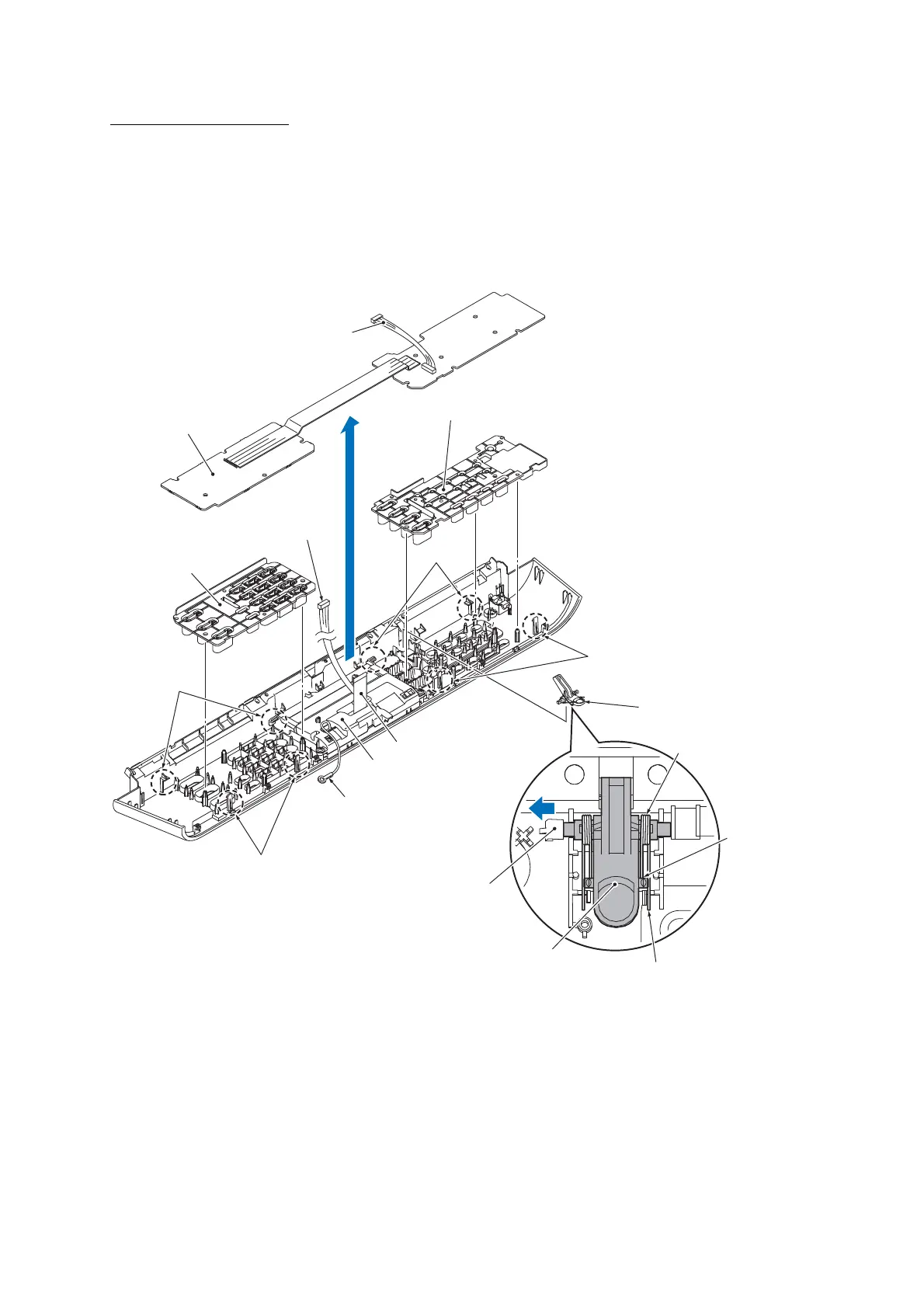

(1) Place the control panel ASSY upside down.
(2) Release the four latches and remove the control panel PCB ASSY (consisting of two
PCBs).
(3) Remove the two rubber keypads.
(4) Unlatch the scanner cover sensor actuator and remove it together with its spring.
(3_049)
Panel-main harness
Control panel PCB
ASSY
Rubber keypad
Touch panel harness
Tabs
Latches
Latches
Tabs
Grounding wire
Control panel base
LCD flat cable
Actuator
spring
Scanner cover
sensor actuator
(Rear)
Rubber keypad
Scanner cover
sensor actuator
Latch
Spring's long end
on the control panel base
Spring's short
end on the boss
of the sensor
actuator
