Brother MFC-J6510DW

3-85
Confidential
Assembling Notes:
• After mounting the scanner cover sensor actuator, check that the actuator springs back if
pressed with a finger.
• When mounting the control panel PCB ASSY, first fit it below the four tabs on the control
panel base and then secure it with the four latches (see the previous page). Make sure that the
cable linking the two PCBs is threaded through the cable guide as shown below.

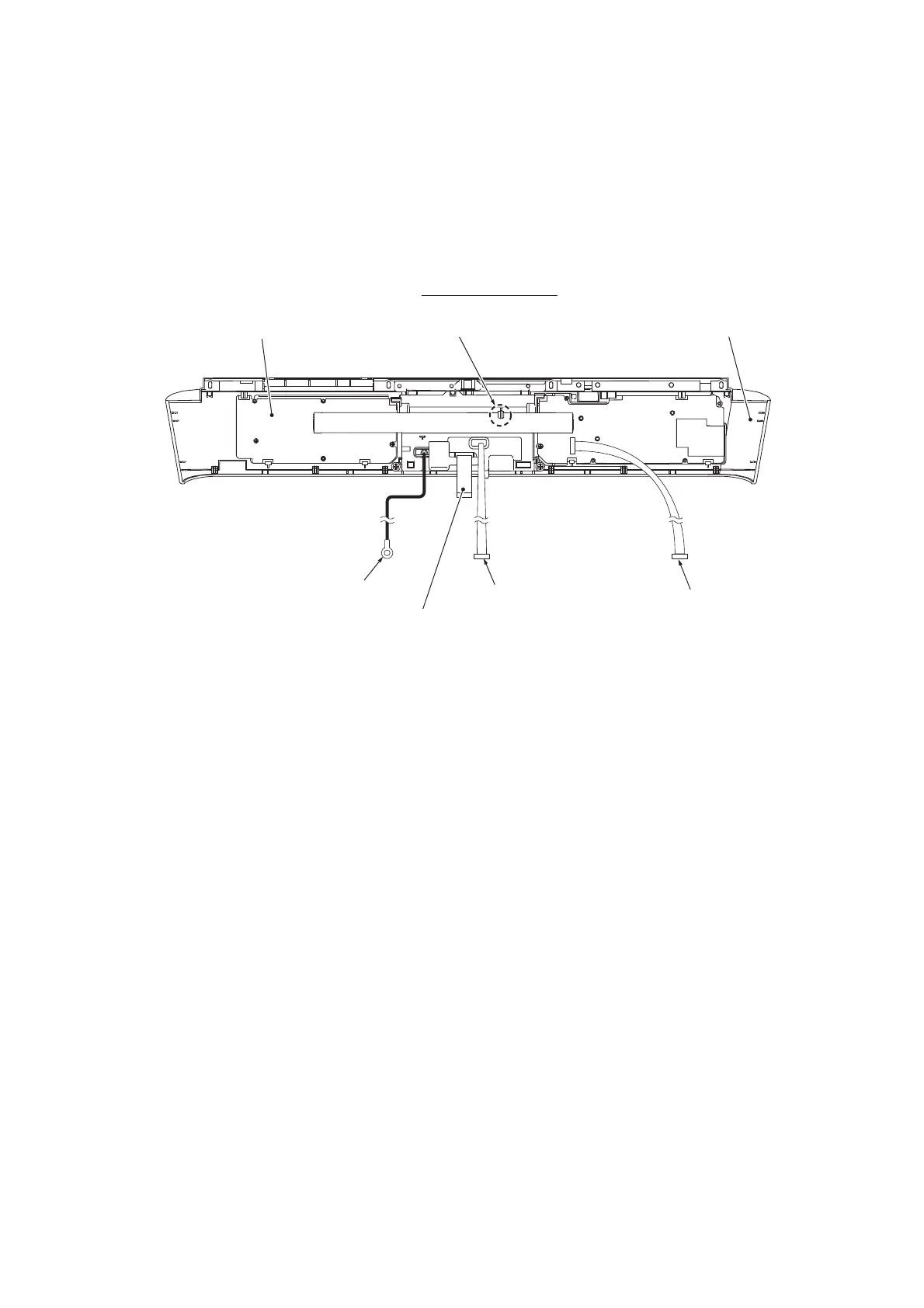

(3_052)
Cable guide
Viewed from the bottom
Control panel PCB ASSY
Grounding wire
LCD flat cable
Touch panel harness
Panel-main harness
Control panel base
