MFC-J6510DW/MFC-J6710DW *1 For models destined for countries except Japan
*2 For Japanese models
MFC-J6910DW

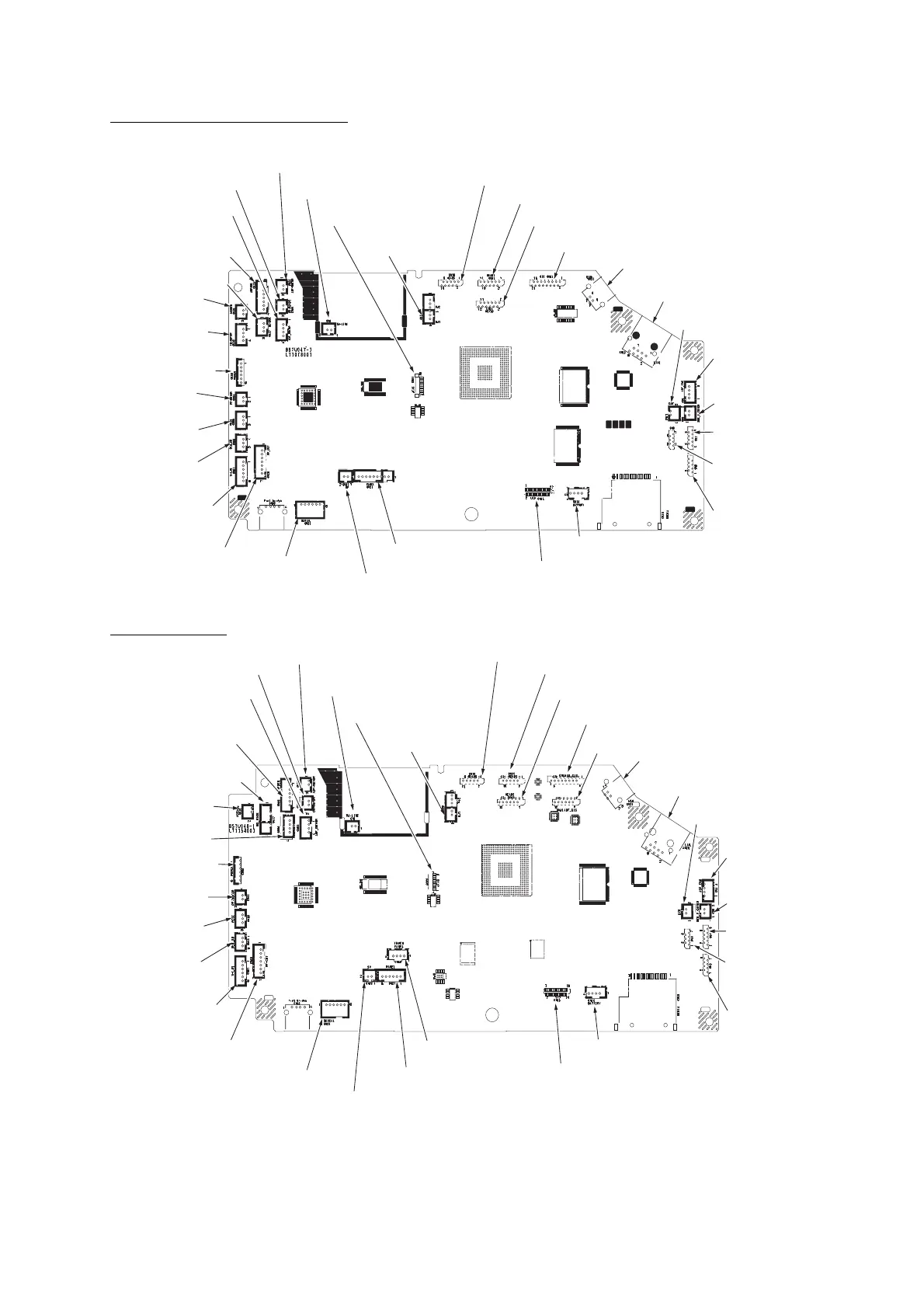

(MainPCB_6510_6710)
Main PCB
Main-MJ (LINE) harness
(2-wire, yellow)
ASF motor harness
(2-wire)
Carriage motor harness
(2-wire)
For debugging at the factory.
Do not disturb it.
(ADF motor harness)
(4-wire)
(Document detection/
width & scanning position
(first side) sensors harness)
(7-wire)
Power supply harness
(6-wire)
Paper feed
motor harness
(2-wire)
Registration
sensor harness
(3-wire)
Switchback paper
detection sensor harness
(3-wire)
(Wireless LAN PCB
harness)
(5-wire in 6-wire
connector housing)
PF encoder/
PF sensor harness
(7-wire)
For debugging
at the factory.
Do not disturb it.
(LCD flat cable)
(25-wire)
(Battery harness)
(4-wire)
Ink cartridge
detection sensor
flat cable
(8-wire)
High-yield ink
cartridge sensor
flat cable
(7-wire)
Ink remaining sensor
flat cable
(9-wire)
Ink cartridge cover
switch harness
(2-wire)
ASF encoder
harness
(4-wire)
Purge cam switch harness
(2-wire)
(LAN interface)
(USB interface)
Head flat cable 2
(12-wire)
Head flat cable 1
(11-wire)
Head flat cable 3
(10-wire)
Main-MJ (EXT) harness
(2-wire*
1
, 6-wire*
2
,
black)
(Panel-main harness)
(6-wire)
(CIS flat cable)
(16-wire)
(CIS motor harness)
(4-wire)
(Document width
sensor harness for B4)*
2
(ADF cover
switch harness)
(2-wire)
(Speaker harness)
(2-wire)
(M11_mainPCB_wlan)
Main PCB
Main-MJ (LINE) harness
(2-wire, yellow)
ASF motor harness
(2-wire)
Carriage motor harness
(2-wire)
For debugging at the factory.
Do not disturb it.
(ADF motor harness)
(4-wire)
(Document scanning position
sensor harness (second side))
(3-wire*
1
, 6-wire*
2
)
(ADF cover
switch harness)
(2-wire)
(CIS motor harness)
(4-wire)
Power supply harness
(6-wire)
Paper feed
motor harness
(2-wire)
Registration
sensor harness
(3-wire)
Switchback paper
detection sensor harness
(3-wire)
PF encoder/
PF sensor harness
(7-wire)
For debugging
at the factory.
Do not disturb it.
(Speaker harness)
(2-wire)
(Panel-main harness)
(6-wire)
(Touch panel harness)
(4-wire)
(LCD flat cable)
(25-wire)
(Battery harness)
(4-wire)
Ink cartridge
detection sensor
flat cable
(8-wire)
High-yield ink
cartridge sensor
flat cable
(7-wire)
Ink remaining sensor
flat cable
(9-wire)
Ink cartridge cover
switch harness
(2-wire)
ASF encoder
harness
(4-wire)
Purge cam switch harness
(2-wire)
(LAN interface)
(USB interface)
(CIS flat cable (white) for second side scanning)
(12-wire)
(CIS flat cable (black) for first side scanning)
(16-wire)
Head flat cable 2
(12-wire)
Head flat cable 1
(11-wire)
Head flat cable 3
(10-wire)
Main-MJ (EXT) harness
(2-wire*
1
, 6-wire*
2
,
black)
(Wireless LAN PCB
harness)
(5-wire in 6-wire
connector housing)
(Document detection/
width & scanning position
(first side) sensors harness)
(7-wire)
