Assembling Notes:
• After mounting the MJ/PS shield unit on the lower cover, check that lock "x" is caught on
pawl "y" provided on the lower cover.

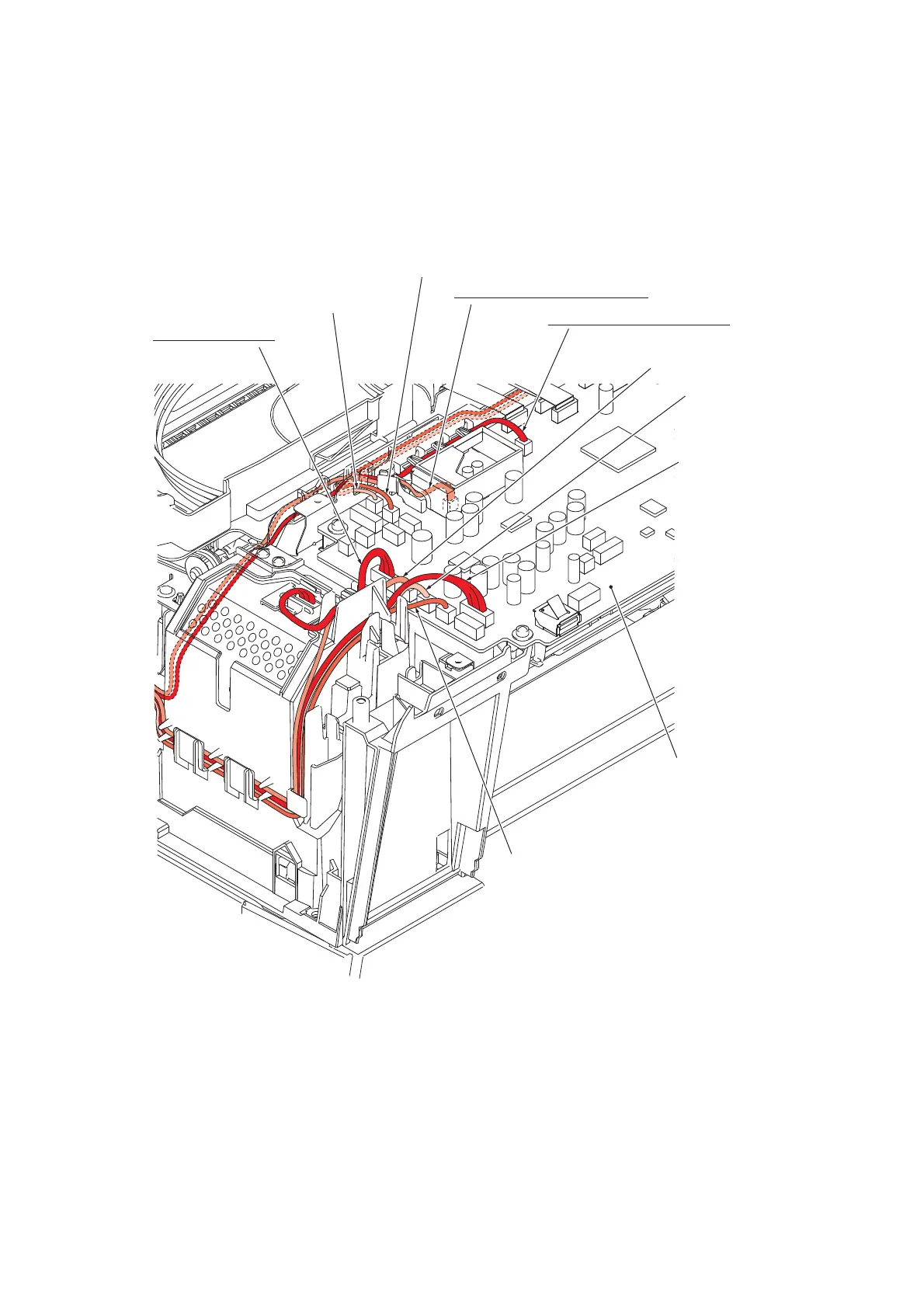

• After mounting the MJ/PS shield unit, route the power supply harness, main-MJ (LINE)
harness and main-MJ (EXT) harness through the cable guides as shown below.
(3_071)
Switchback paper sensor
harness
Power supply harness
ASF motor harness
Carriage motor harness
Paper feed motor harness
PF encoder/PF sensor
harness
Main PCB
Main-MJ (EXT) harness (black)
Main-MJ (LINE) harness (yellow)
Registration sensor
harness
(Front)
