Tube support plate and tube support wire
(8) Pull up the tab on the tube support plate to release the boss on the underside from the lower
cover, slide the plate to the left, and take it up and off the lower cover together with the tube
support wire.
(9) Remove the tube support wire from the tube support plate.

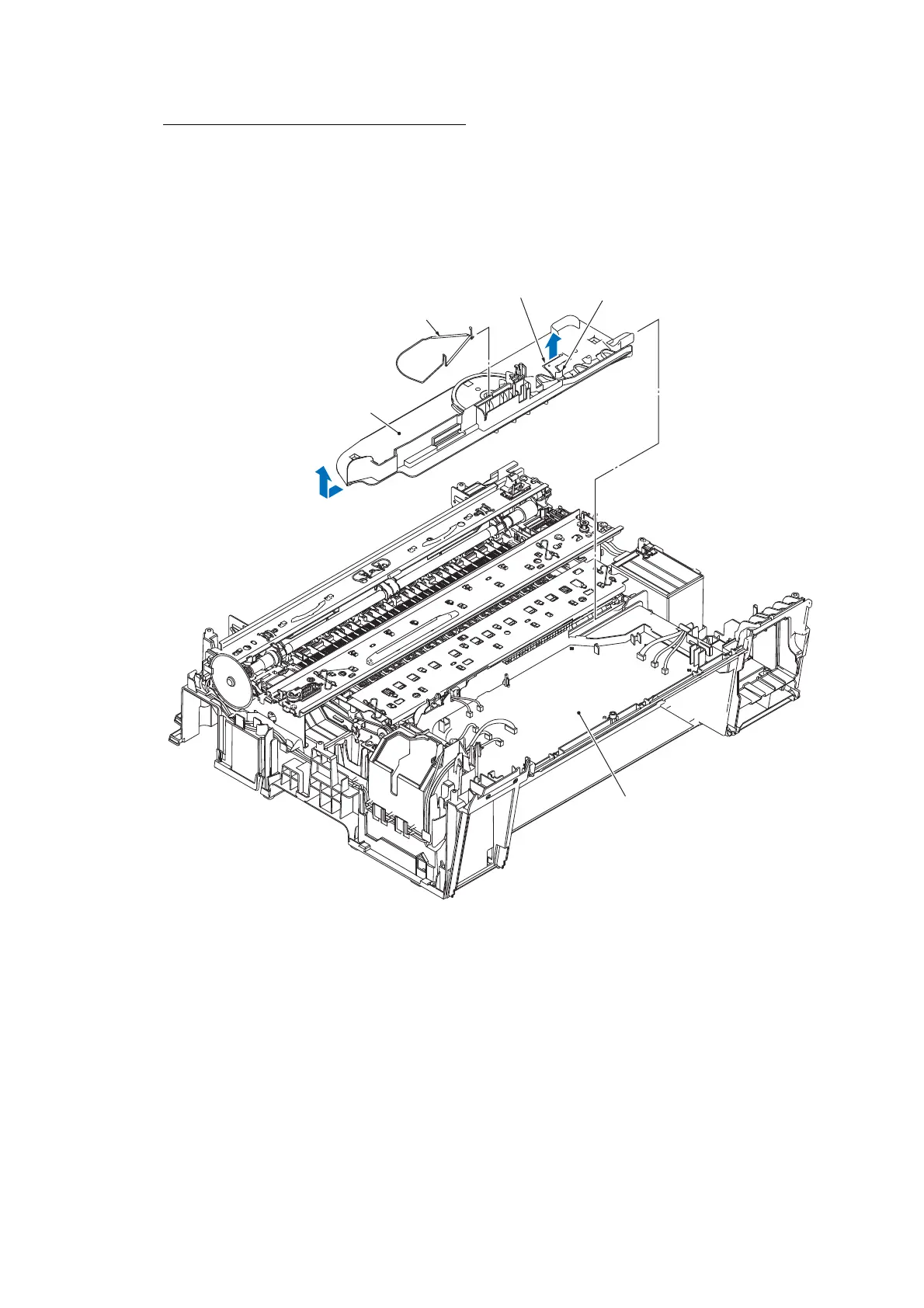

(3_077)
Lower cover
Tube support plate
Tube support wire
Tab
Boss provided on the
underside of this plate
