Brother MFC-J6510DW

3-123
Confidential

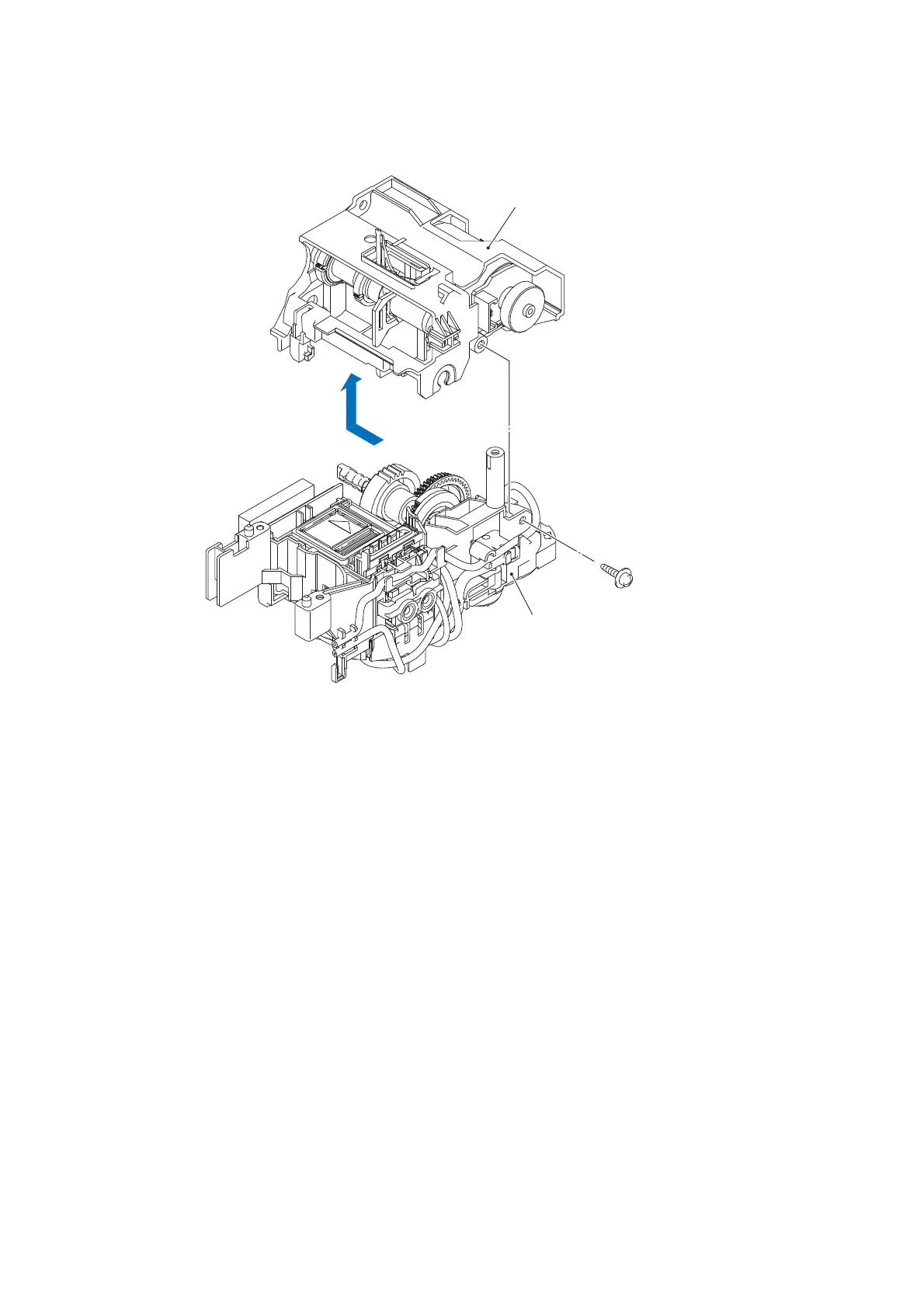

(5) Remove the screw from the maintenance unit, slightly slide the ASF drive ASSY to the left
and lift it up to detach it from the maintenance unit.
(3_093)
ASF drive ASSY
Taptite, cup B
M3x10
Maintenance unit
(Front)
