Intermediate roller
(10)At the right and left ends of the intermediate roller (viewed from the rear), pull the lock
arms of bushings R and L outwards to release their bosses and turn them in the direction of
the arrows shown below.
(11) Slightly pull out bushing R towards you and remove the intermediate roller to the left.

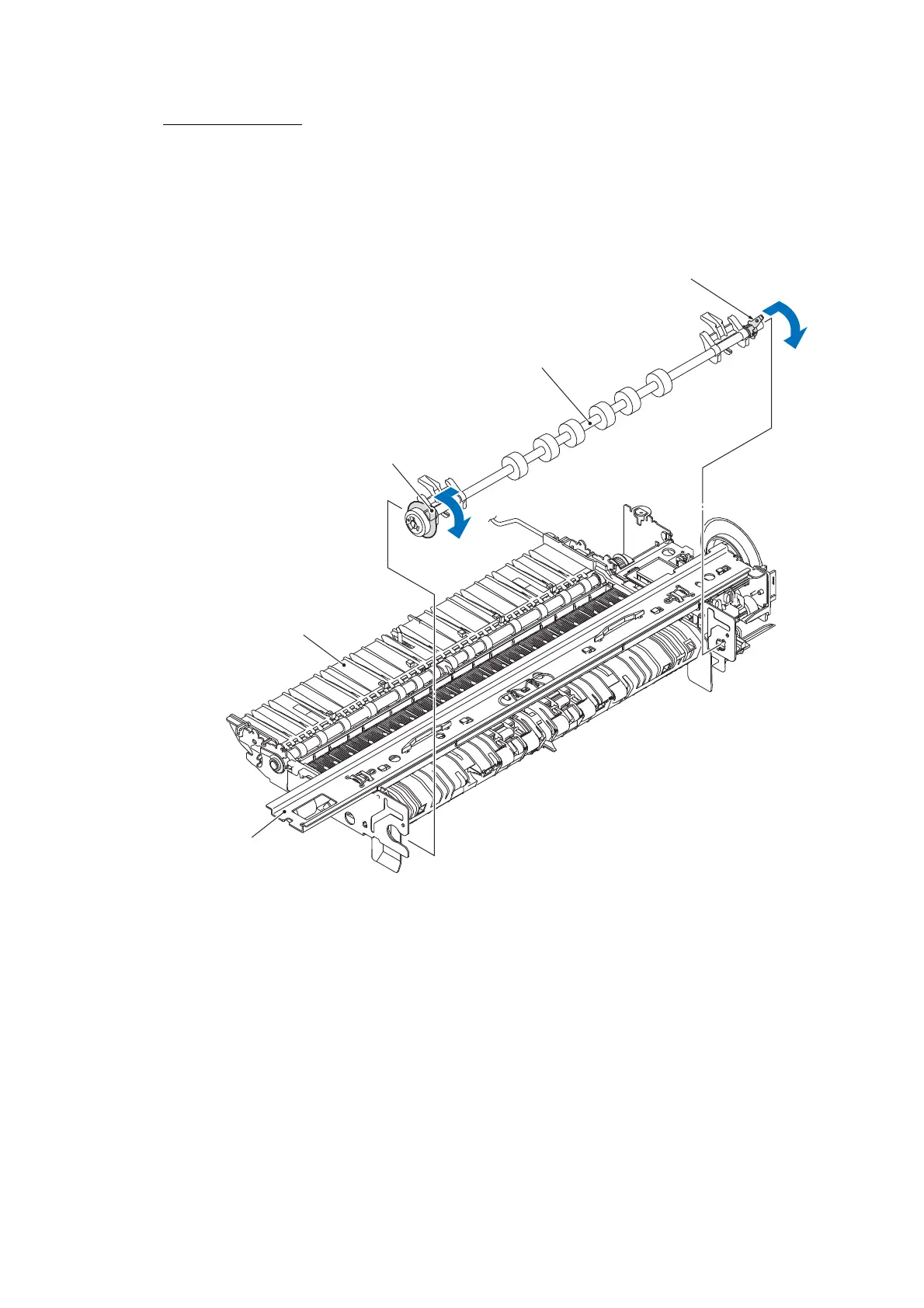

(3_097)
Lock arm of bushing L
Intermediate roller
Lock arm of bushing R
(Rear)
CR guide rail
Inner paper guide
