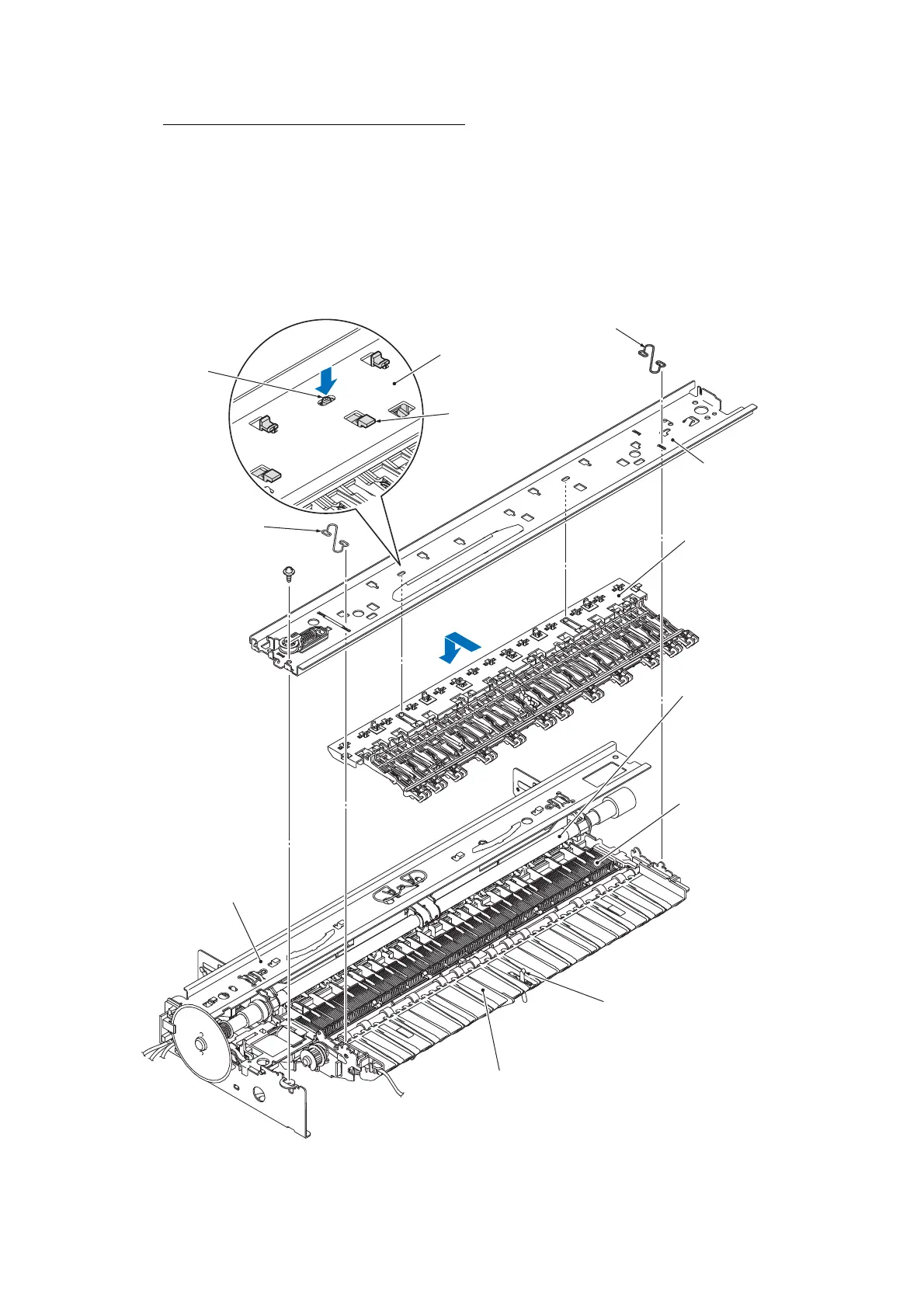

CR support chassis and star wheel holder
(7) Remove two frame lock springs from the CR support chassis.
(8) Remove the screw from the left end of the CR support chassis and lift up the chassis
together with the star wheel holder.
(9) While lightly pressing down the two bosses that fit in the oval holes provided in the CR
support chassis, slide the star wheel holder to the rear to release its small tabs from the
square holes in the CR support chassis, and detach it from the CR support chassis.
(3_096)
Switchback paper detection
sensor actuator
Boss
Frame lock spring
Screw, bind M3x6
CR guide rail
Inner paper guide
(Front)
Platen
Paper feed roller
Star wheel holder
CR support chassis
Frame lock spring
Tab
CR support chassis
