Brother MFC-J6510DW

3-130
Confidential

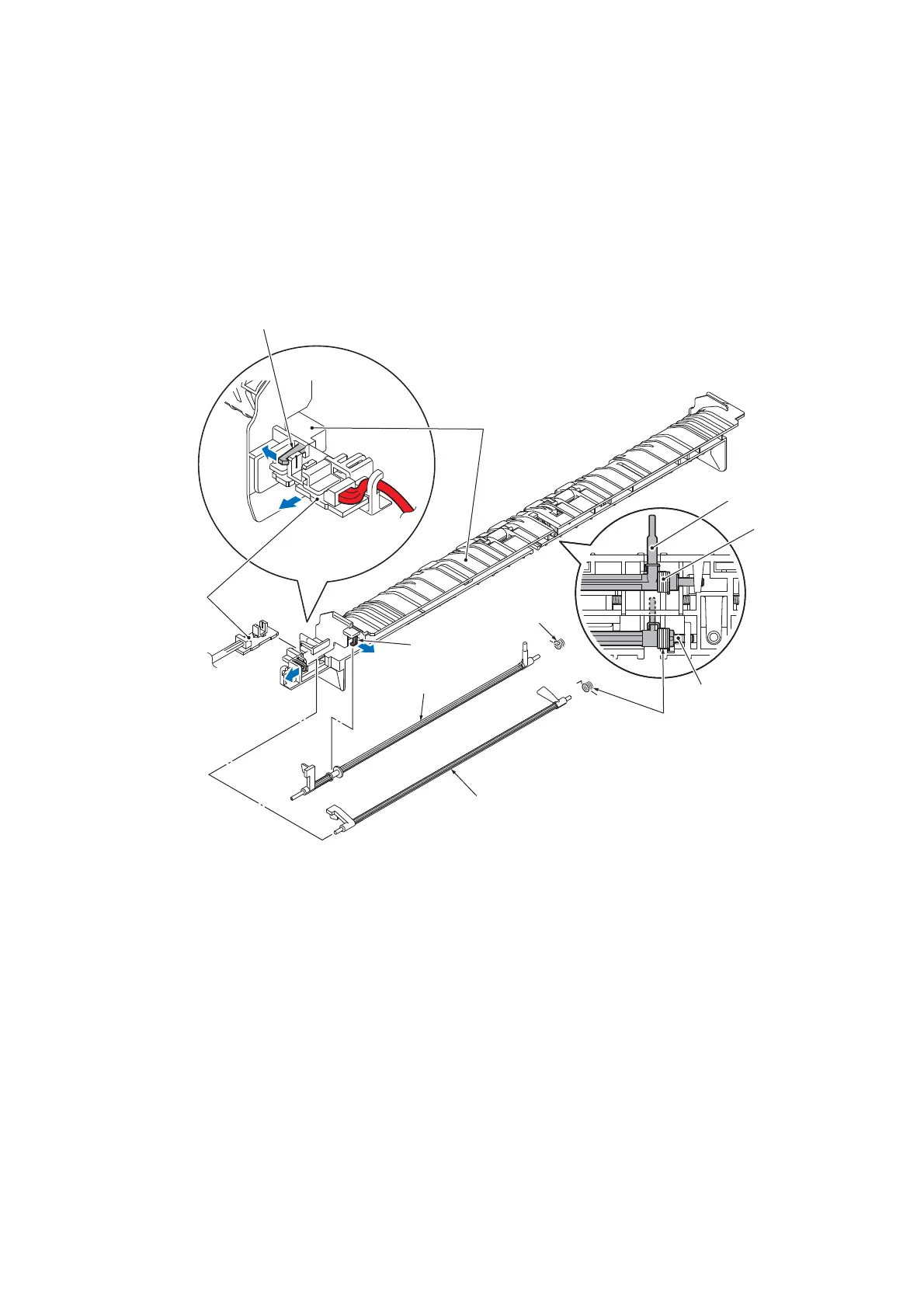

(20)Release the paper feed (PF) sensor PCB from the support arm and take it out of the inner
chute ASSY.
Note: The PF sensor PCB and the PF encoder PCB are assembled with their harnesses. To
completely release the PF sensor PCB from the engine unit, therefore, you need to remove
the PF encoder PCB by performing steps (21) through (27).
(21)Remove the registration sensor actuator and its spring.
(22)Remove the paper feed sensor actuator and its spring.
(3_102)
Inner chute ASSY
Support arm
Paper feed (PF)
sensor PCB
Latch
Registration
sensor actuator
Paper feed
sensor actuator
Sensor
actuator
spring
Sensor actuator
spring
Paper feed
sensor actuator
Paper feed
sensor actuator
Sensor
actuator
spring
(Rear)
