(23)If the PF encoder disk needs to be replaced, peel it off from the PF roller gear L.
Note: Once removed, the PF encoder disk will become unusable and a new disk will have
to be put back in.
Note: Remove any adhesive remaining left on the PF roller gear L.
Performing steps (24) through (28) requires removing the PF encoder disk, so make a new disk
ready for use.
(24)Press the latch on the bottom of the flushing unit outwards and take the unit up and off the
PF motor frame.
(25)At the left end of the paper feed roller, pull the lock arm of the bushing outwards and
upwards to release the boss from the PF motor frame.
(26)Remove the screw and detach the PF motor frame.
Assembling Note: When attaching the PF encoder disk to the PF roller gear L, using a spatular
tool makes the job easier. Put on clean gloves to protect the disk surface from dust or
fingerprints.

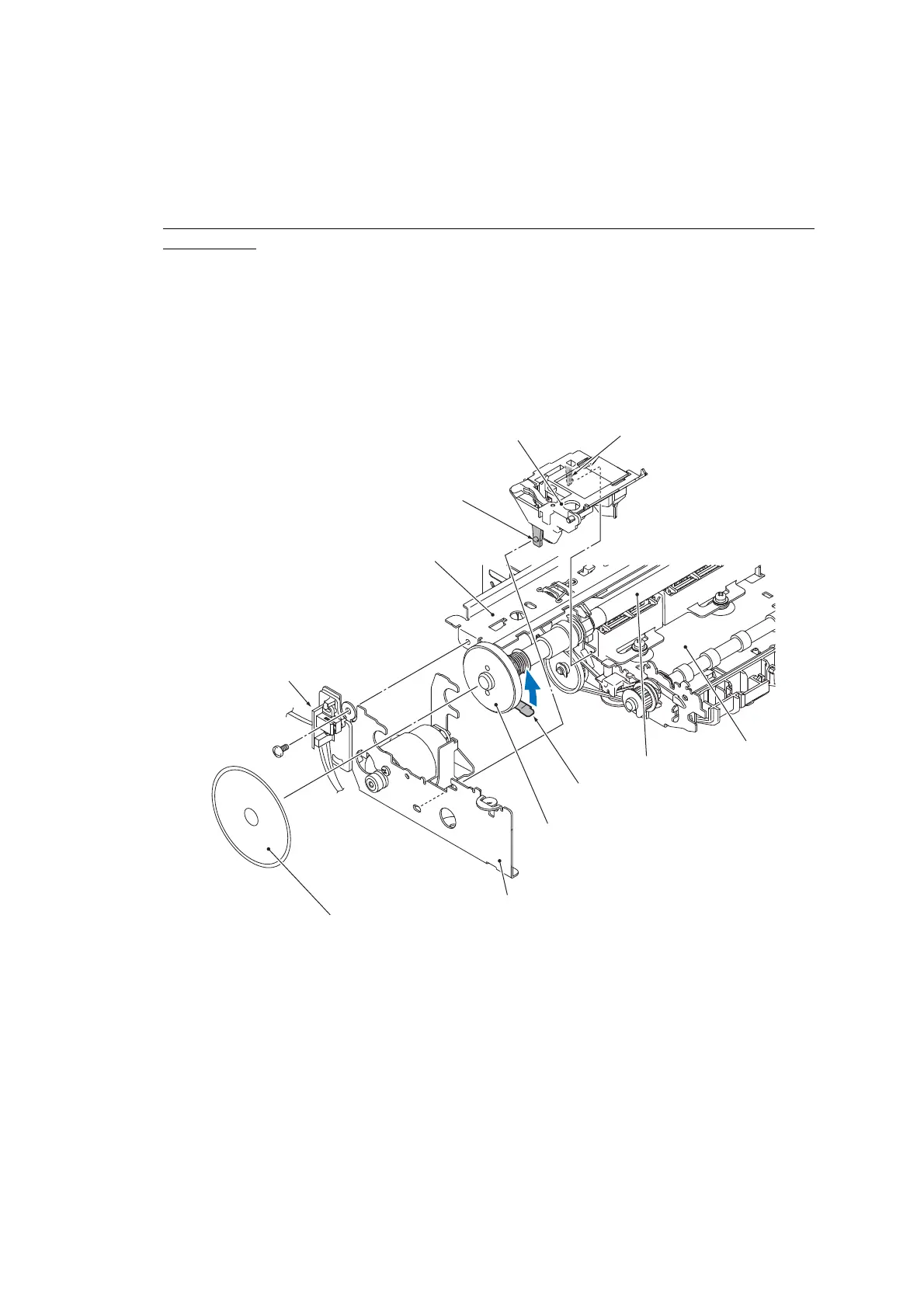

(3_103)
Paper feed roller
CR guide rail
Boss
Latch
PF encoder
sensor PCB
Screw, bind M3x6
(Left)
PF encoder disk
PF motor frame
PF roller gear L
Lock arm of bushing
Engine unit
Flushing unit
To Next Page
