Brother MFC-J6510DW

3-132
Confidential

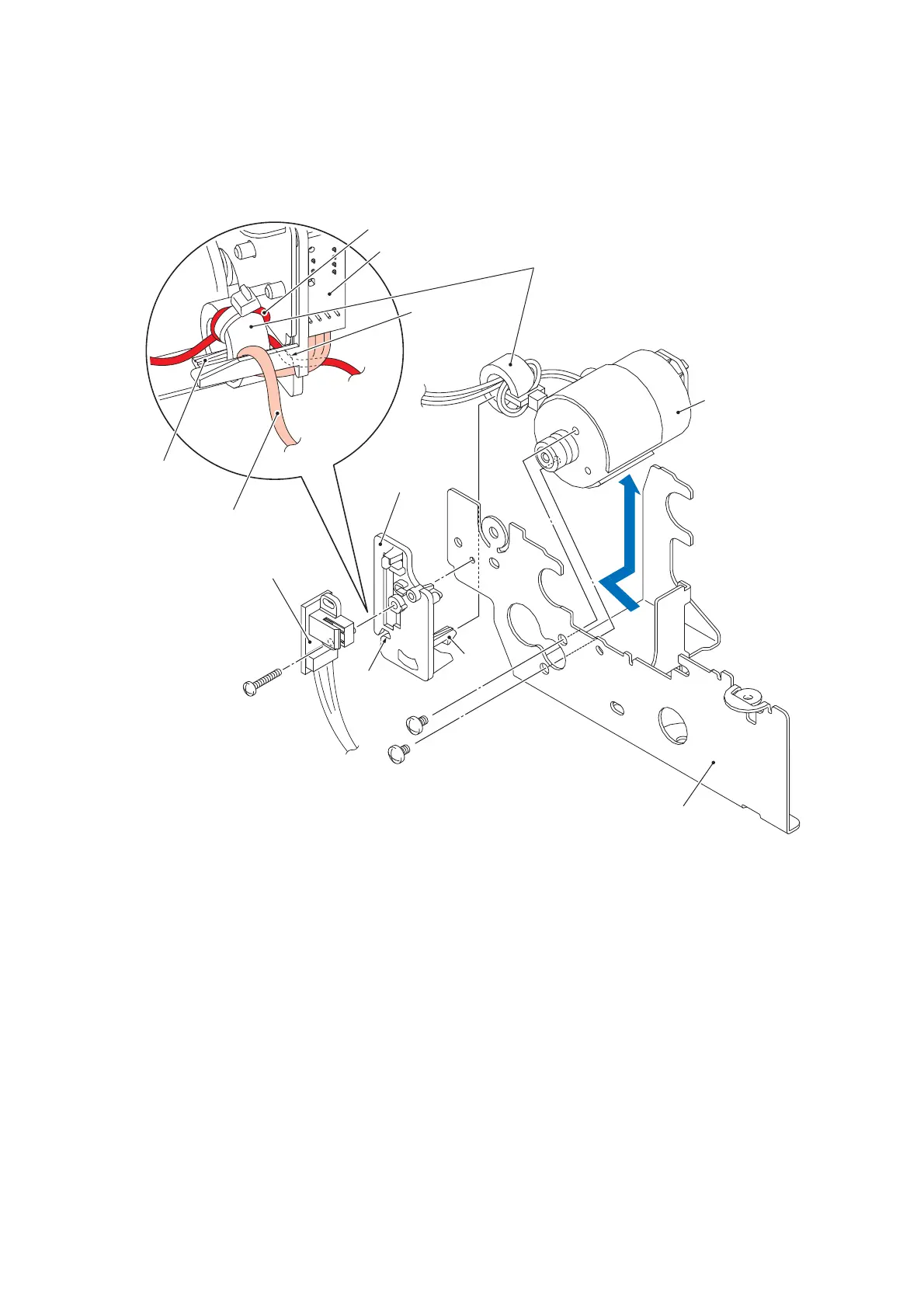

(27)Remove the screw that secures the PF encoder sensor PCB and its support. This completely
separate the PF encoder/PF sensor harness unit from the engine unit.
(28)Remove the two screws and remove the paper feed motor from its frame.
PF motor frame
(3_104)
Paper feed motor
Ferrite core
Encoder PCB
support
Screw, bind
M2x12
Screw, bind
M2.6x4
Paper feed motor
harness threaded
through the cutout
provided in the
encoder PCB
support
Paper feed motor harness
PF encoder sensor PCB
PF encoder sensor PCB
PF encoder
sensor harness
Latch
Cutout
Latch
