Brother MFC-J6520DW

To Next Page

To Previous Page

3-30

Confidential

(7) Remove the one screw (TAPTITE CUP S M3x6) to release the ADF FG wire and

FB FG wire.

(8) Disconnect the six Connectors from the Main PCB ASSY.

(9) Disconnect the two Flat cables from the Main PCB ASSY.

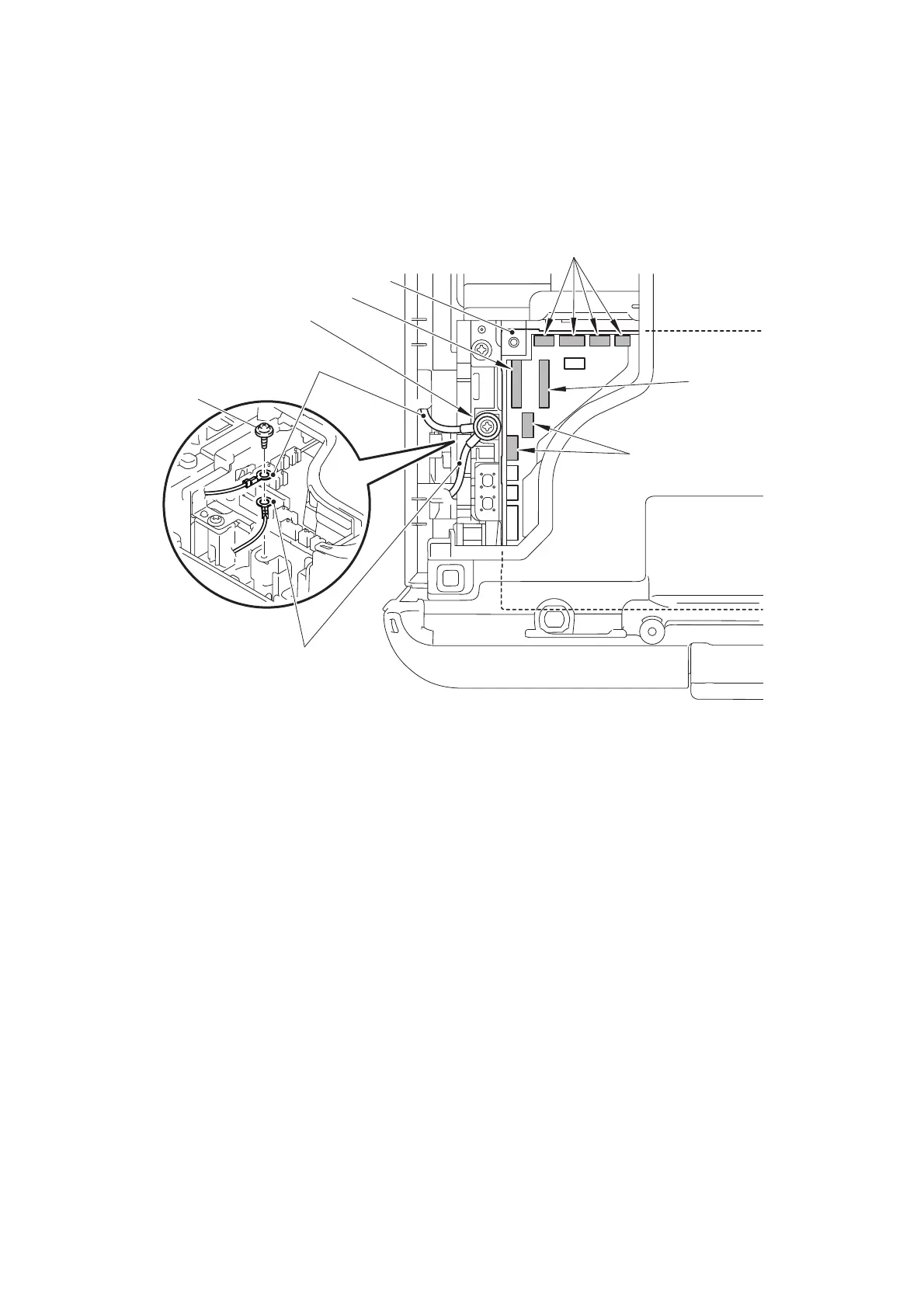

Fig. 3-6

TAPTITE CUP S M3x6

Connectors

ADF FG wire

FB FG wire

TAPTITE CUP S M3x6

Main PCB ASSY

Flat cable

Connectors

Flat cable
