Brother MFC-J6520DW

To Next Page

To Previous Page

3-31

Confidential

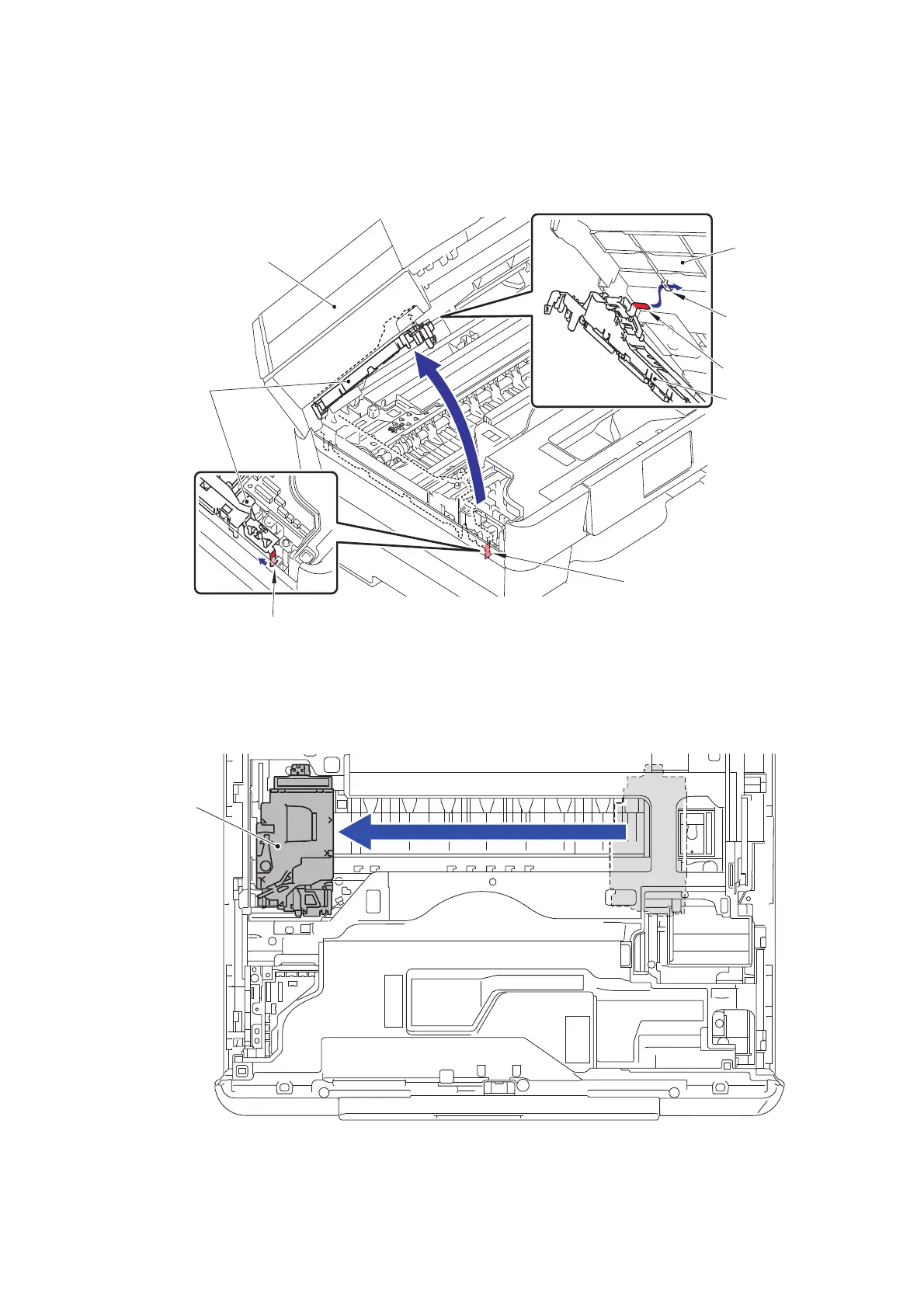

(10)Release the Hook of the Scanner harness holder.

(11)Lift up the Scanner harness holder.

(12)Insert the section “A” into the Hole of the Document scanner unit.

Fig. 3-7

(13)Move the Head/carriage unit manually to the position shown in the figure.

Fig. 3-8

“A”

Document

scanner unit

Hole

Scanner

harness

holder

Document scanner unit

harness holder

Hook

Head/carriage unit
