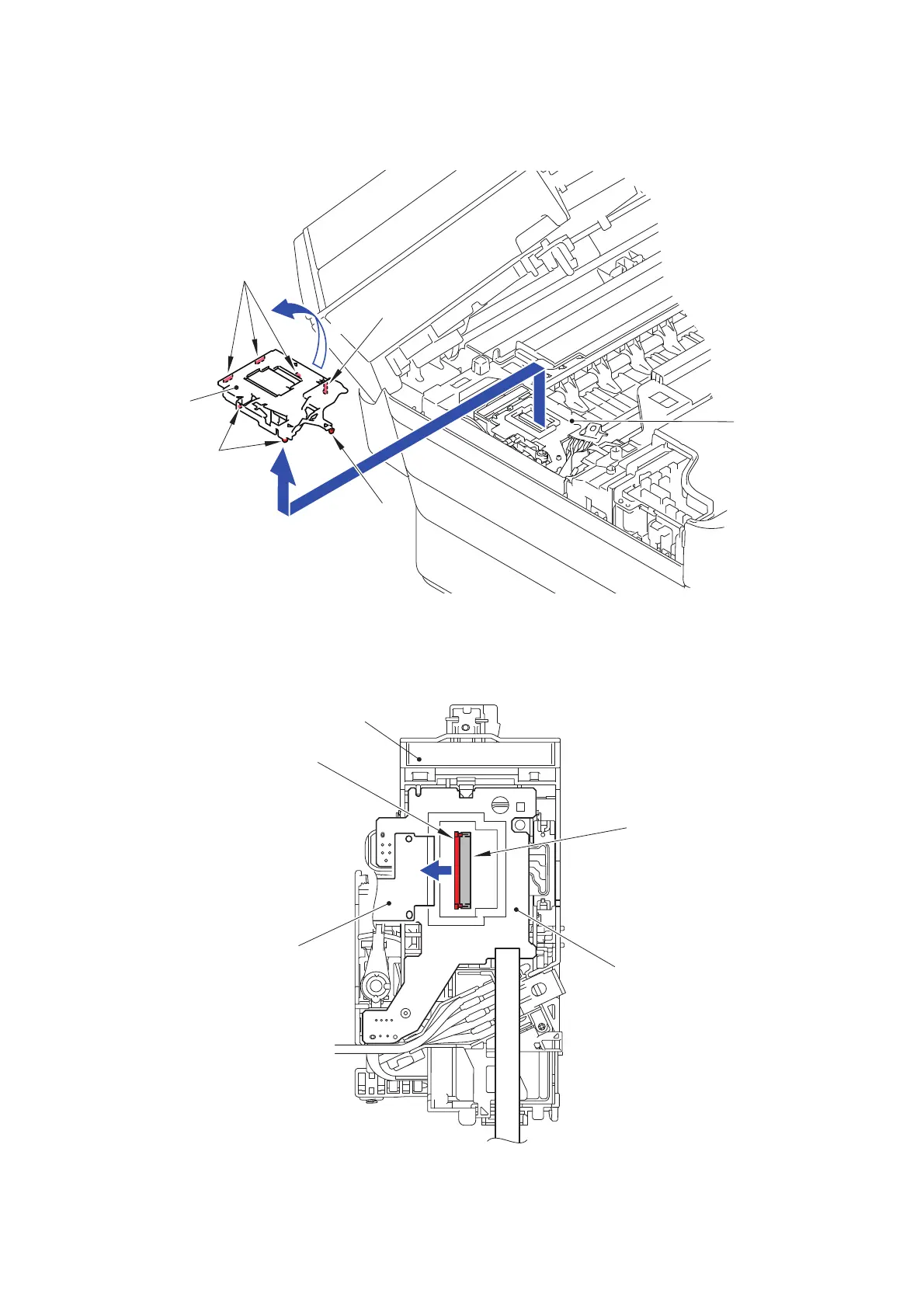

(14)Release the Hook 1. Release other six Hooks as rotating the Head cover in the

direction of the arrow 14a and remove the Head cover from the Head/carriage unit.

Fig. 3-9

(15)Unlock the Connector and disconnect the Flat cable from the Carriage PCB.

Fig. 3-10

Hooks

Hook

Hooks

Head/

carriage unit

Head cover

Hook 1

14a

14b

Connector

Carriage PCB

Lock

Head/carriage unit

Flat cable
