Brother MFC-J6520DW

To Next Page

To Previous Page

3-72

Confidential

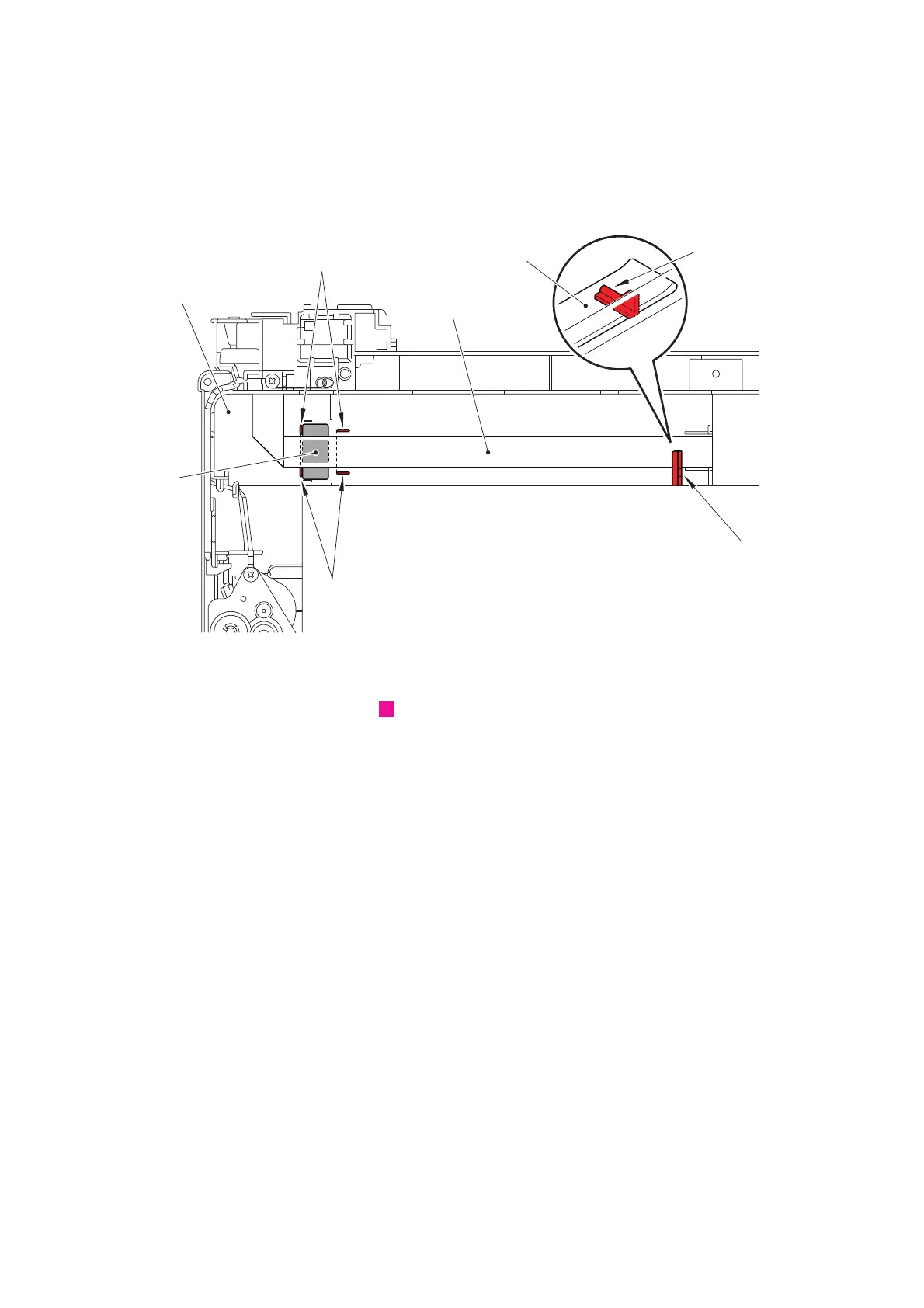

Assembling Note:

- Attach the FFC film to the First side CIS flat cable referring to the figure below.

- Attach the First side CIS flat cable to the Document scanner base ASSY referring to

the figure below.

Fig. 3-75

Harness routing: Refer to " ADF unit and document scanner unit"

Ribs

FFC film

First side CIS flat cable

Hook

First side CIS flat cable

Document scanner

base ASSY
