Brother MFC-J6920DW Service Manual

3-13
Confidential

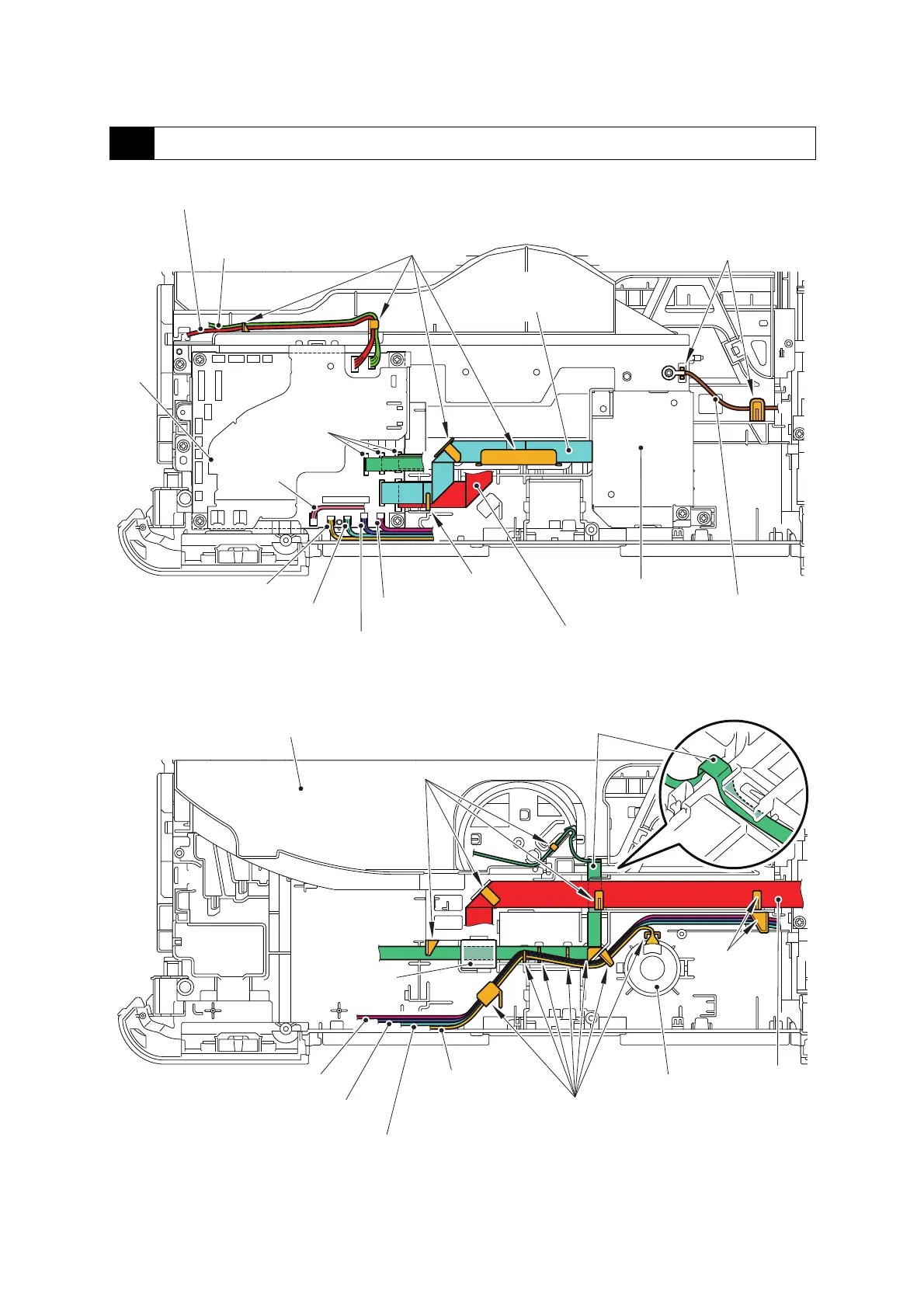

2 Main PCB ASSY and MJ PCB ASSY
Switchback sensor harness
Cable guides
Cable guides
Main
ASSY
Speaker harness
Ink cartridge cover sensor harness
Purge cam sensor harness
Registration
sensor harness
Cable guide
Ink sensor flat cable
MJ PCB flat cable
MJ PCB ASSY
Tube support plate
Cable guides
PCB
Speaker harness
Registration sensor harness
Purge cam sensor harness
Ink cartridge cover sensor harness
Cable guides
Cable guides
Carriage
Ferrite core
Speaker
Ink sensor
flat cable
flat cable
PF encoder/registration sensor harness
Engine FG wire
Carriage flat cable
Document scanner
sensor
harness

Brother MFC-J6920DW Specifications

General

Type	all in one
Tray Capacity	500
Automatic Document Feeder Capacity	35 sheets
Paper Size	11" x 17"
Paper Handling	up to 500 sheets
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 6000 x 1200
Print Resolution Color	up to 6000 x 1200
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 2400 x 1200
Copier Resolution Color	up to 2400 x 1200
Fax Function	yes
Cartridges	lc103bk/c/m/y
Number Of Cartridges	4
Internal Memory	no
Memory Card	yes
Network	wireless
Connectivity	usb
OS Compatibility	pc: windows server 2003, server 2003 r2, server 2008, server 2008 r2, server 2012, xp home, xp professional, vista, 7 or 8, mac: os x v10.6x, 10.7x or 10.8x
Mobile Devices Connection	yes

Weight and Dimensions

Height	21.9 inches
Width	17 inches
Net Weight	36.4 pounds
