Brother MFC-J6920DW Service Manual

3-87
Confidential

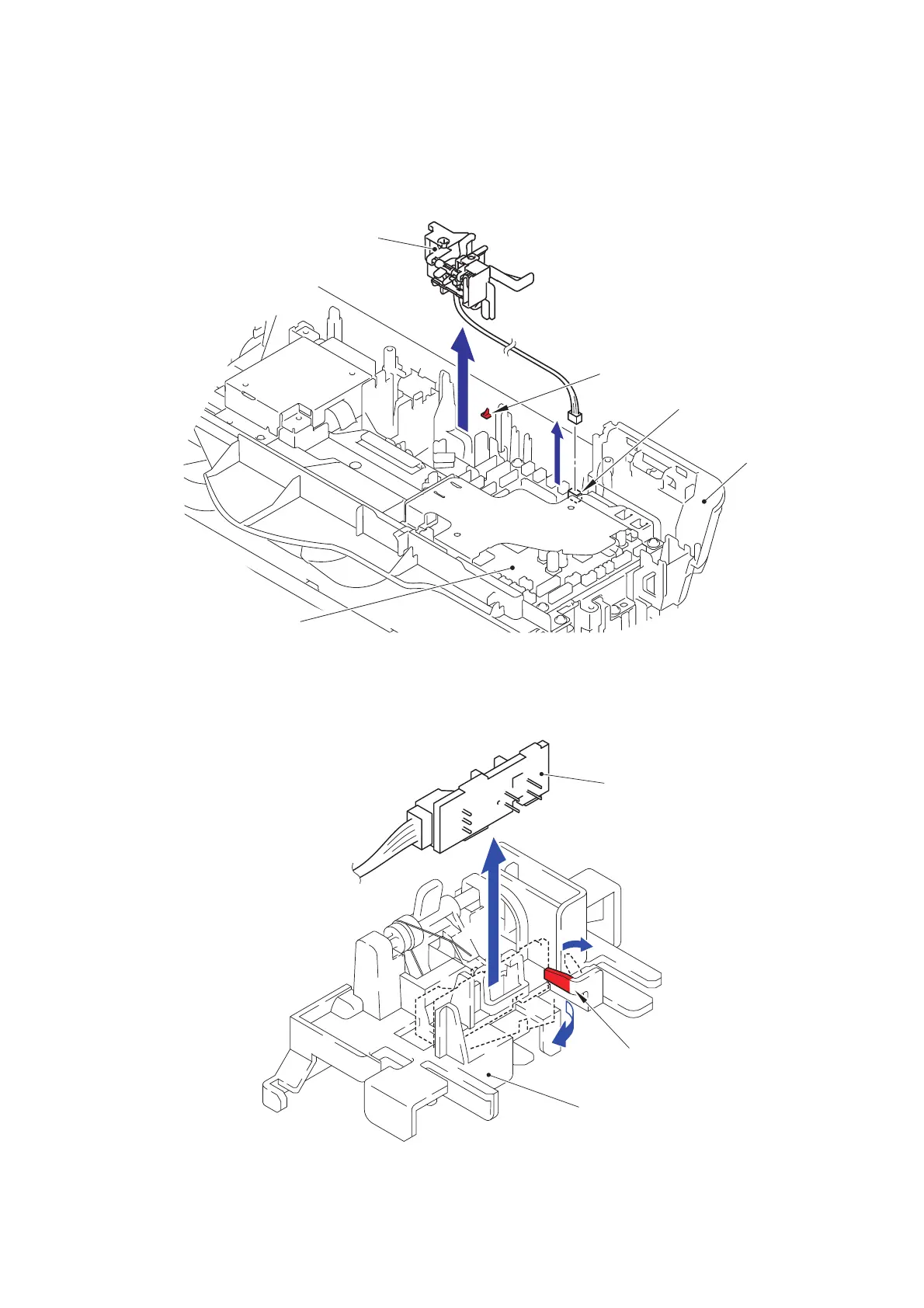

9.38 Document Scanner Sensor PCB
(1) Disconnect the Connector from the Main PCB ASSY.
(2) Release the Hook on the Lower cover and remove the Document scanner sensor
base.
Fig. 3-99
(3) Push the Lock arm in the direction of the arrow 3a and remove the Document
scanner sensor PCB from the Document scanner sensor base.
Fig. 3-100
Main PCB ASSY
Hook
Document scanner sensor base
Connector
1
2
<Front>
<Rear>
Lower cover
Document scanner sensor base
Document scanner sensor PCB
3a
3b
3c
Lock arm

Brother MFC-J6920DW Specifications

General

Type	all in one
Tray Capacity	500
Automatic Document Feeder Capacity	35 sheets
Paper Size	11" x 17"
Paper Handling	up to 500 sheets
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 6000 x 1200
Print Resolution Color	up to 6000 x 1200
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 2400 x 1200
Copier Resolution Color	up to 2400 x 1200
Fax Function	yes
Cartridges	lc103bk/c/m/y
Number Of Cartridges	4
Internal Memory	no
Memory Card	yes
Network	wireless
Connectivity	usb
OS Compatibility	pc: windows server 2003, server 2003 r2, server 2008, server 2008 r2, server 2012, xp home, xp professional, vista, 7 or 8, mac: os x v10.6x, 10.7x or 10.8x
Mobile Devices Connection	yes

Weight and Dimensions

Height	21.9 inches
Width	17 inches
Net Weight	36.4 pounds
