Brother MFC-J6920DW Service Manual

3-114
Confidential
9.56 Paper Feed Motor

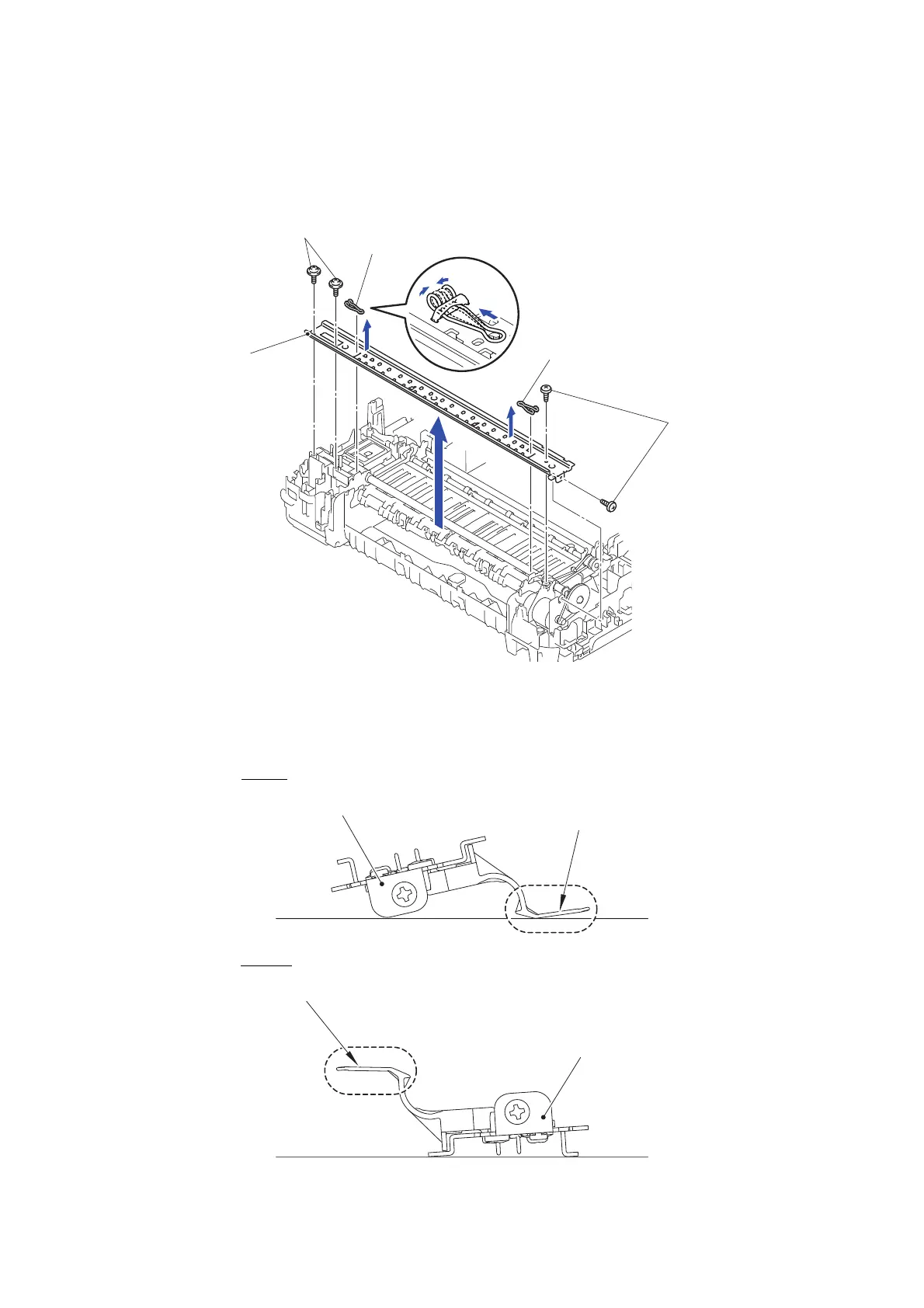

(1) Remove the two screws (SCREW BIND M3x6) from the CR guide rail.
(2) Remove the two screws (TAPTITE CUP B M3x10) from the CR guide rail.
(3) Remove the two CR guide rail springs and remove the CR guide rail.
Fig. 3-135
Note: Do not place the removed CR guide rail with the Recording paper holder down.
Fig. 3-136
SCREW BIND M3x6
TAPTITE CUP B M3x10
CR guide rail
CR guide rail spring
CR guide rail spring
<Front>
<Rear>
Recording paper holder
Recording paper holder
CR guide rail
CR guide rail
Wrong
Correct
