3-27
Confidential
9.2 Head Joint Rubber, Head/carriage Unit and CR Timing Belt

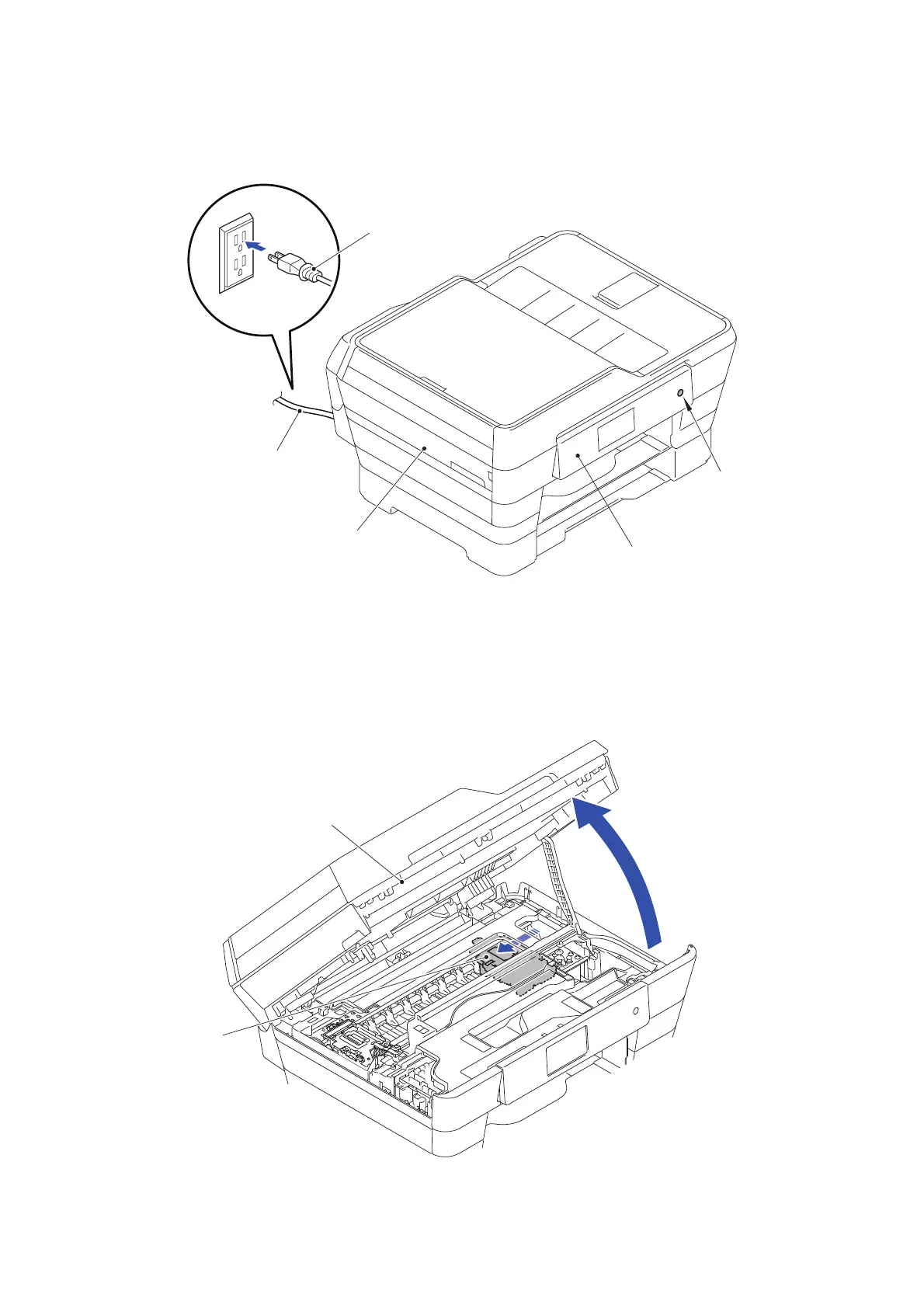

(1) Plug the Power cord into an electrical outlet.
Fig. 3-1
(2) Switch the machine to the maintenance mode and press the
6
,
3
,
Mono Start
, and
*
keys in this order to automatically move the Head/carriage unit to the position shown
in the figure.
(3) Pull out the Power cord from the electrical outlet.
(4) Open the Scanner cover.
Fig. 3-2
Power cord
Panel ASSY
Power cord
Machine body
Power switch
Head/carriage unit
Scanner cover
