Brother MFC-J6920DW Service Manual

3-58
Confidential

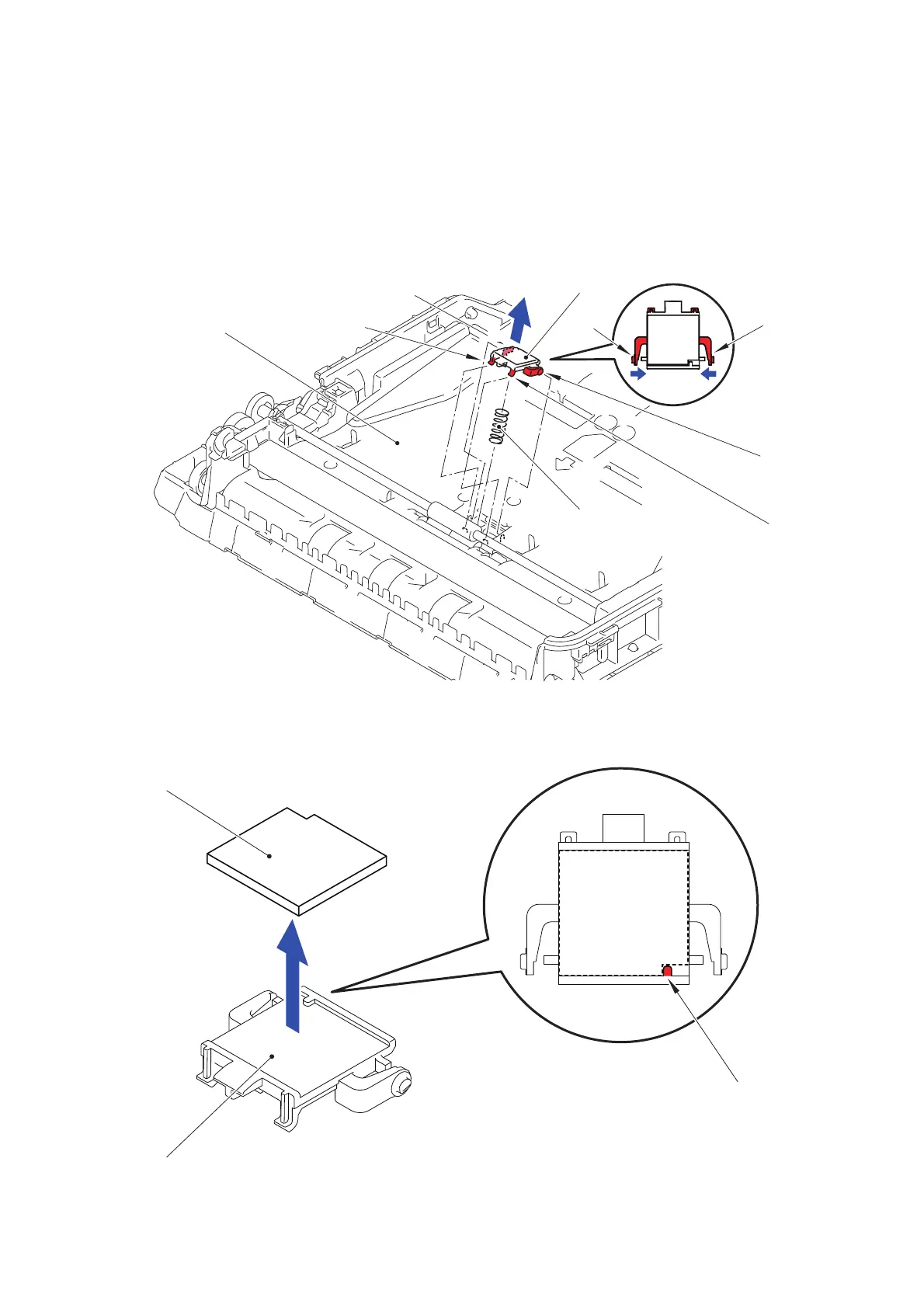

9.16 ADF Separation Pad
(1) Release the two Hooks of the ADF separation pad holder from the Upper
document chute.
(2) Remove the two Pins and remove the ADF separation pad holder from the Upper
document chute.
Note: When removing the ADF separation pad holder, be careful not to lose the ADF
separation pad spring.
Fig. 3-52
(3) Peel off the ADF separation pad which is secured with Double-sided adhesive tape
from the ADF separation pad holder.
Fig. 3-53
ADF separation pad holder
Pin
Pin
Hook
HookUpper document chute
ADF separation
2a
2b
pad spring
PinPin
ADF separation pad
ADF separation pad holder
Guide

Brother MFC-J6920DW Specifications

General

Type	all in one
Tray Capacity	500
Automatic Document Feeder Capacity	35 sheets
Paper Size	11" x 17"
Paper Handling	up to 500 sheets
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 6000 x 1200
Print Resolution Color	up to 6000 x 1200
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 2400 x 1200
Copier Resolution Color	up to 2400 x 1200
Fax Function	yes
Cartridges	lc103bk/c/m/y
Number Of Cartridges	4
Internal Memory	no
Memory Card	yes
Network	wireless
Connectivity	usb
OS Compatibility	pc: windows server 2003, server 2003 r2, server 2008, server 2008 r2, server 2012, xp home, xp professional, vista, 7 or 8, mac: os x v10.6x, 10.7x or 10.8x
Mobile Devices Connection	yes

Weight and Dimensions

Height	21.9 inches
Width	17 inches
Net Weight	36.4 pounds
