Brother MFC-J6920DW Service Manual

3-129
Confidential
9.65 Base Pad

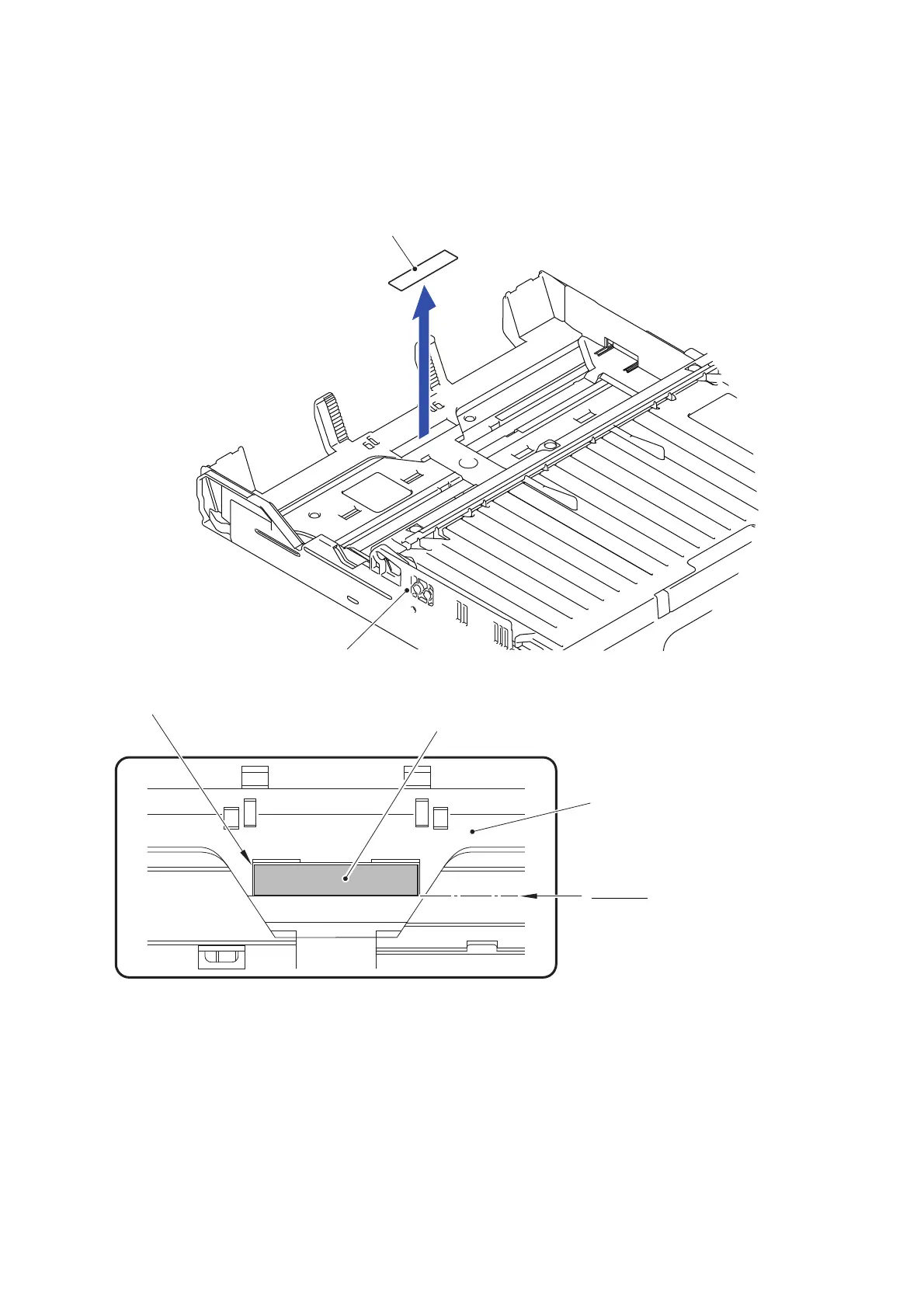

(1) Peel off the Base pad from the Paper tray 1.
Note: Once removed, the base pad will become unusable and a new pad will have to
be put back in.
Fig. 3-158
Assembling Note: When attaching a new Base pad to the paper tray, align the front
edge of the pad with that of the depressed section on the paper
tray 1 and center the pad widthways as shown above.
(2) Peel off the Base pad of the Paper tray 2 in the same way.
Base pad
Paper tray 1
Base pad
Paper tray 1
Align the edge of the base pad with the
front edge
of the depressed section
on the paper tray 1.
Depressed section
