2.2 Document Feeding Path/Recording Paper Feeding Path

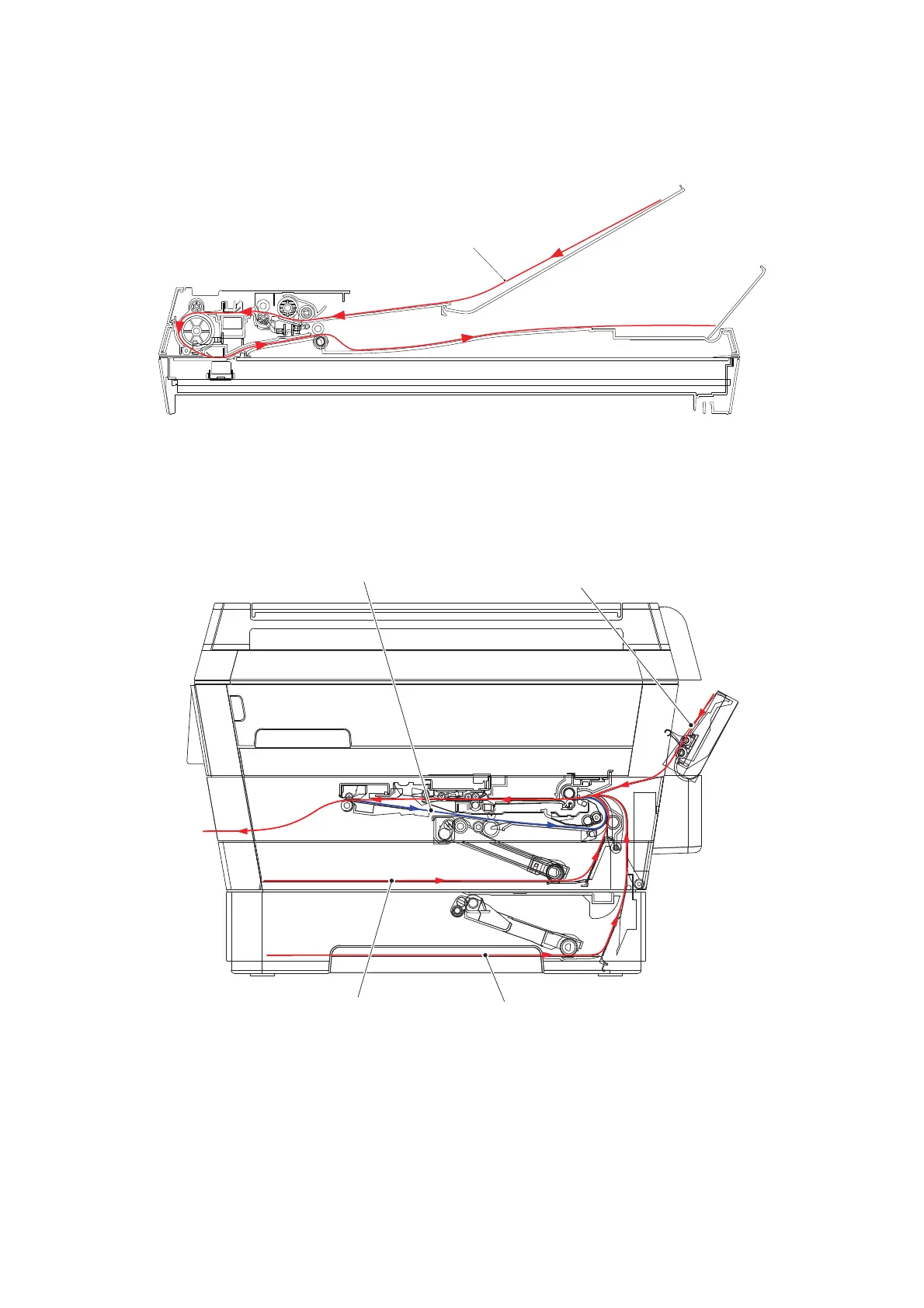

2.2.1 Document Feeding Path

Fig. 2-3

2.2.2 Recording Paper Feeding Path

Fig. 2-4

Document feeding path during ADF scanning

Feeding path during duplex-printing

Feeding path from the manual feed slot

Feeding path from paper tray 1

Feeding path from lower tray
