Brother MFC-J6920DW Service Manual

3-70
Confidential
9.22 First Side CIS Flat Cable and FFC Film
(1) Peel off the First side CIS flat cable which is secured at three locations with the
Double-sided adhesive tape from the Document scanner base ASSY.
(2) Pull out the First side CIS flat cable from the Hole of the Document scanner base
ASSY.
(3) Peel off the FFC film which is secured with Double-sided adhesive tape from the
First side CIS flat cable.

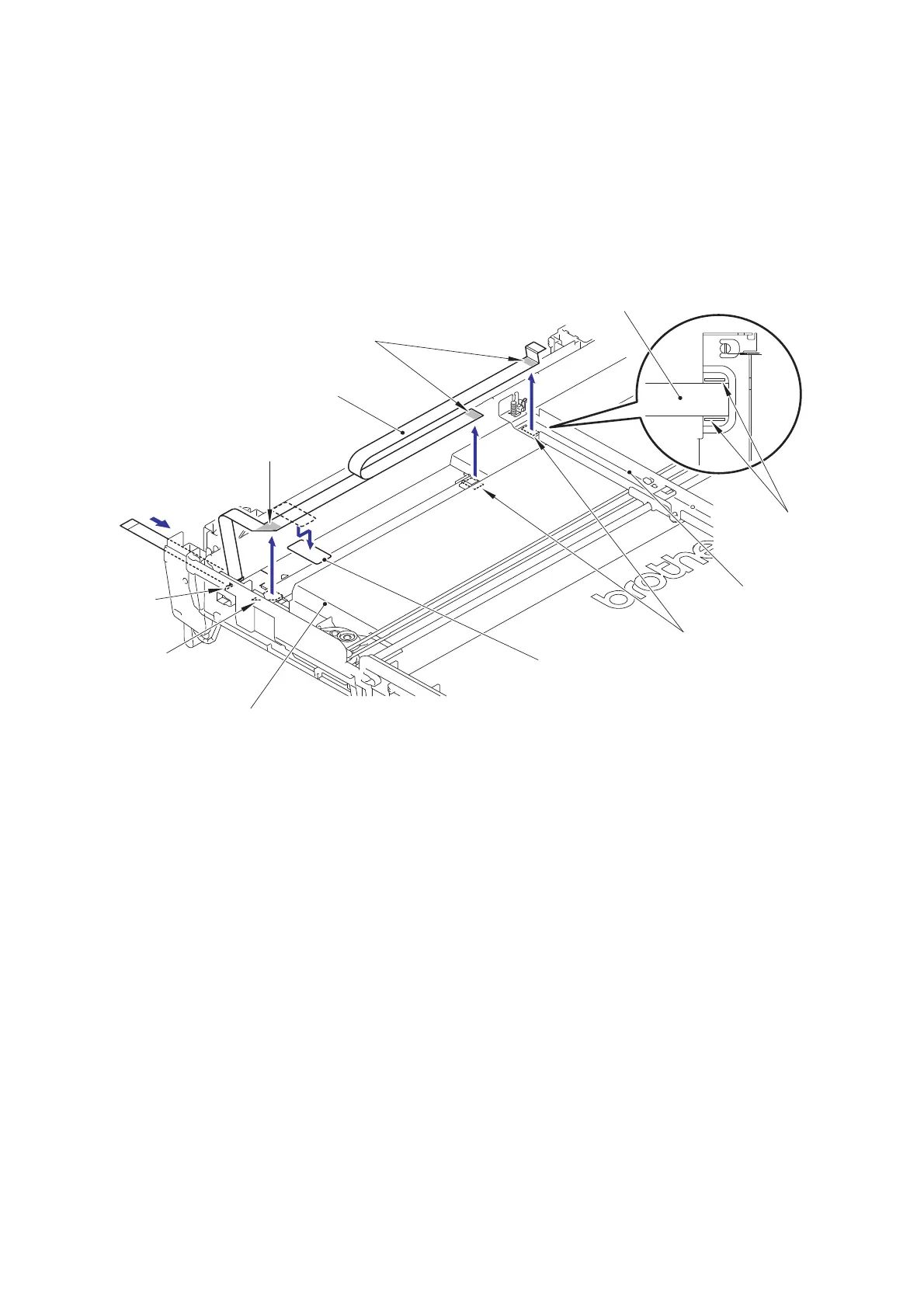

Fig. 3-73
Double-sided
Double-sided adhesive tape
First side CIS flat cable
First side CIS flat cable
Document scanner base ASSY
CIS carriage
Rib
Hole
FFC film
adhesive tape
Double-sided
adhesive tape
attachment position
Double-sided adhesive tape
attachment position
