Brother MFC-J6920DW Service Manual

4-12
Confidential
2.1 Update the head property data (Maintenance mode 68)
Update the head property data, referring to Chapter 5, Section 1.3.25 "Updating of
Head Property Data and Backup/Restoration of Head Calibration Data."
The head property data can also be updated with the service setting tool
(BrUsbSn.exe).
The head property data updating procedure is given below.
(1) Turn the machine ON and switch it to the maintenance mode.
(2) Connect the machine to your PC using a USB cable.

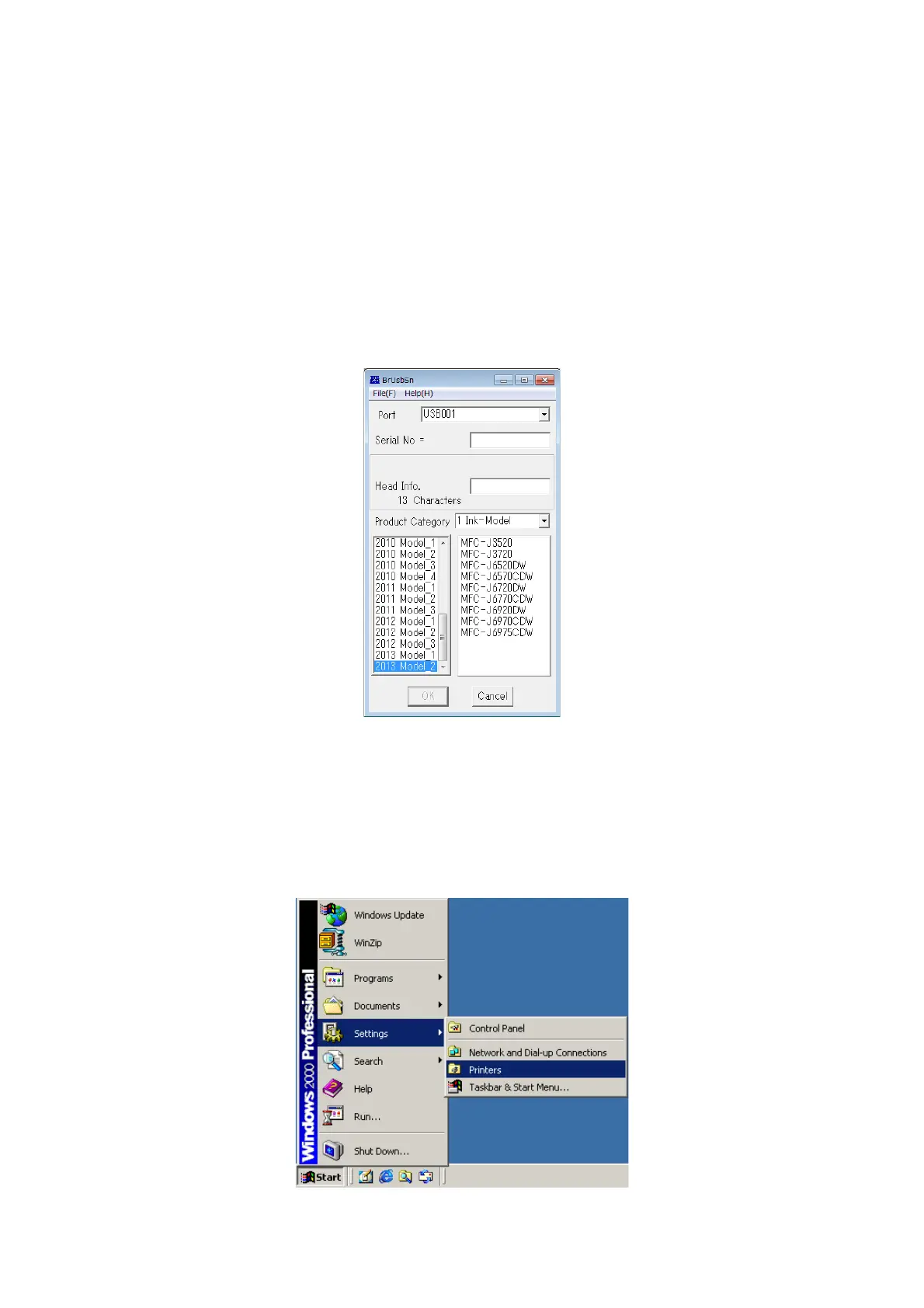

(3) On the PC, run the service setting tool (BrUsbSn.exe) to display the following
window.
(4) In Product Category, select 1 Ink-Model.
(5) Select 2013 Model_2.
(6) In Port on the BrUsbSn screen, select the port number assigned to the Brother
Maintenance USB Printer.
If the port number is unknown, follow steps 1) through 4) below.
1) Click Start | Settings | Printers.

Brother MFC-J6920DW Specifications

General

Type	all in one
Tray Capacity	500
Automatic Document Feeder Capacity	35 sheets
Paper Size	11" x 17"
Paper Handling	up to 500 sheets
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 6000 x 1200
Print Resolution Color	up to 6000 x 1200
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 2400 x 1200
Copier Resolution Color	up to 2400 x 1200
Fax Function	yes
Cartridges	lc103bk/c/m/y
Number Of Cartridges	4
Internal Memory	no
Memory Card	yes
Network	wireless
Connectivity	usb
OS Compatibility	pc: windows server 2003, server 2003 r2, server 2008, server 2008 r2, server 2012, xp home, xp professional, vista, 7 or 8, mac: os x v10.6x, 10.7x or 10.8x
Mobile Devices Connection	yes

Weight and Dimensions

Height	21.9 inches
Width	17 inches
Net Weight	36.4 pounds
