Brother MFC-J6920DW Service Manual

3-121
Confidential
9.60 Inner Chute ASSY
(1) Take off the Gear shift prevention block.
(2) Release the wiring of the Registration sensor harness.
(3) Remove the Resin retaining ring from the Frame base.
(4) Remove the one screw (TAPTITE CUP B M3x10) to release the Engine FG wire
from the Frame base.
(5) Remove the two screws (TAPTITE CUP B M3x10) and remove the Frame base.

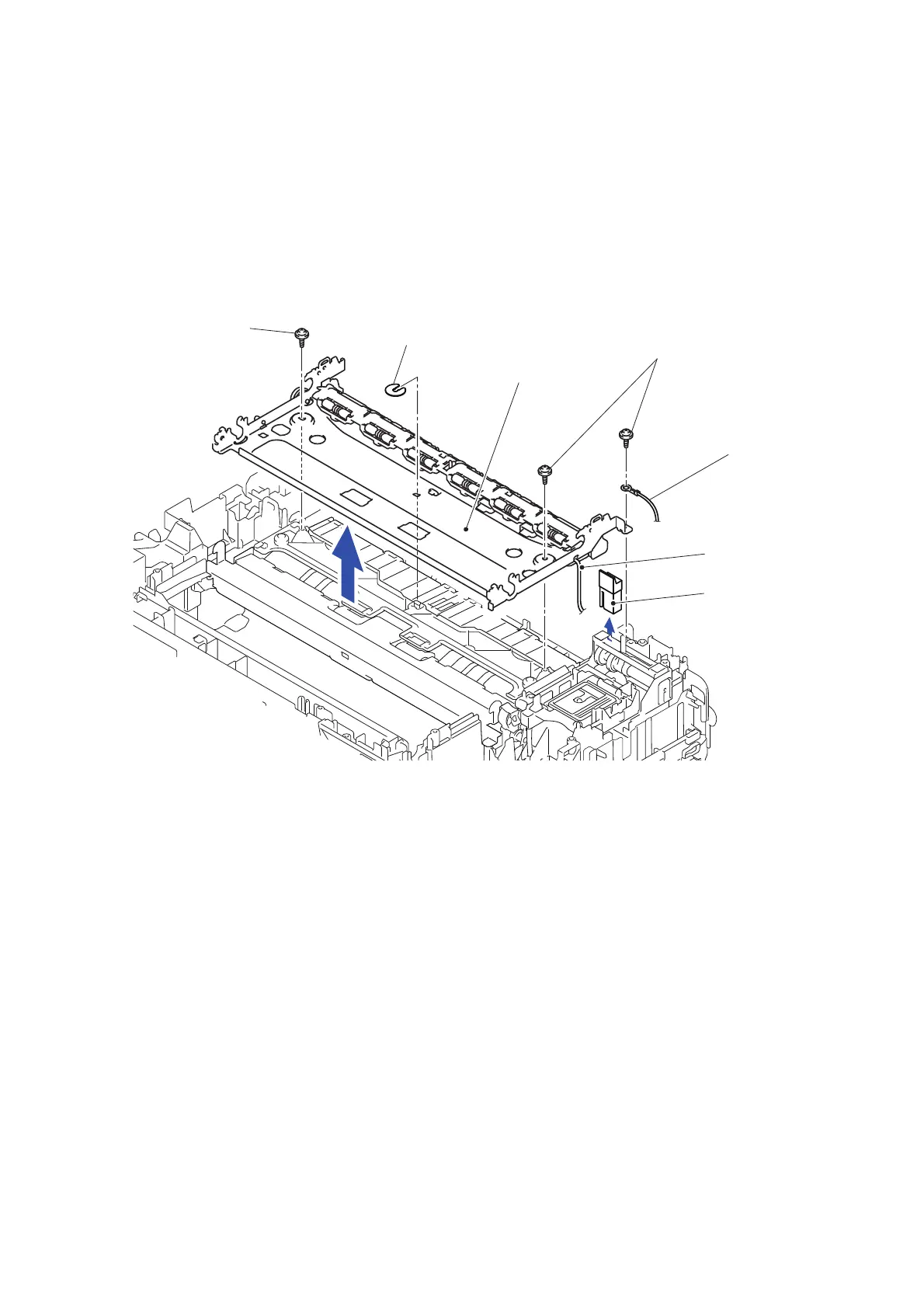

Fig. 3-145
Frame base
TAPTITE CUP B M3x10
TAPTITE CUP B M3x10
Engine
Resin retaining ring
Gear shift
Registration
prevention block
sensor harness
<Front>
<Rear>
FG wire
