Brother MFC-J6920DW Service Manual

3-82
Confidential
9.31 Lower Side Cover L
(1) Release the two Hooks at the rear side of the Lower side cover L.
(2) Release the three Hooks at the front side of the Lower side cover L.
(3) Slide off the Lower side cover L in the direction of the arrow.

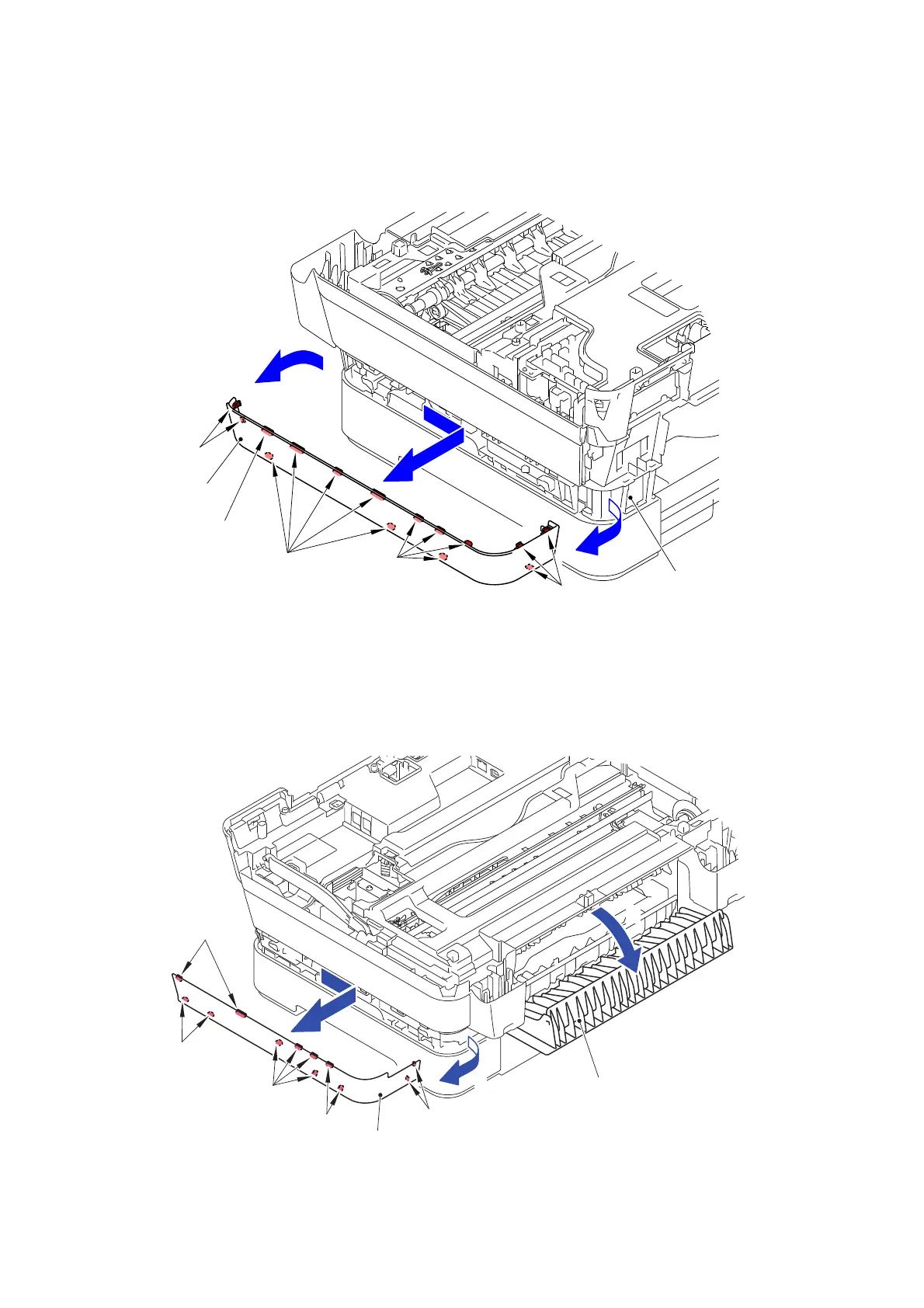

Fig. 3-92
9.32 Lower Side Cover R
(1) Open the Jam clear cover.
(2) Release the two Hooks at the rear side of the Lower side cover R.
(3) Slide off the Lower side cover R in the direction of the arrow.
Fig. 3-93
Lower side cover L
Hooks
Hooks
Hooks
Hooks
1
2
3
<Rear>
<Front>
Lower cover
Hook
Jam clear cover
Hooks
Hooks
Hooks
Hooks
Hooks
Lower side cover R
1
2
3
<Rear>
<Front>
