Brother MFC-J6920DW Service Manual

3-46
Confidential
9.6 Document Scanner Side Cover L

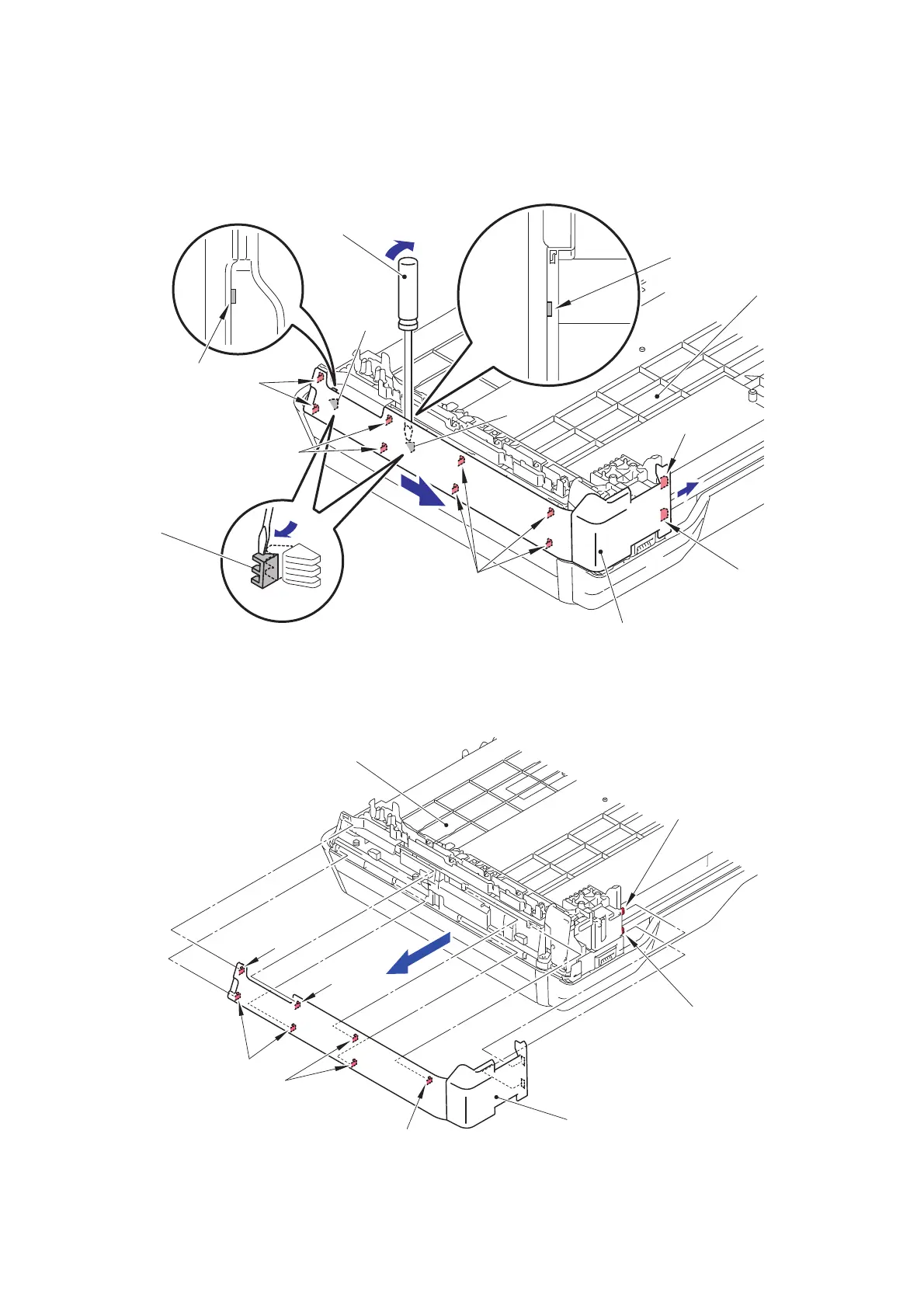

(1) Insert a Flat screwdriver into the Cutout and release the sections “A” and “B”.
(2) Slide the Document scanner side cover L to release the nine Hooks.
Fig. 3-32
(3) Remove the Document scanner side cover L from the Document scanner unit.
Fig. 3-33
Hook
Document scanner side cover L
Hooks
Hooks
Hooks
Document scanner unit
Cutout
Flat screwdriver
“A”
“A”
Hook
Cutout
“B”
“B”
Document scanner side cover L
Hook
Hooks
Hooks
Hook
Hook
Hook
Hook
Document scanner unit
