Brother MFC-J6920DW Service Manual

5-54
Confidential

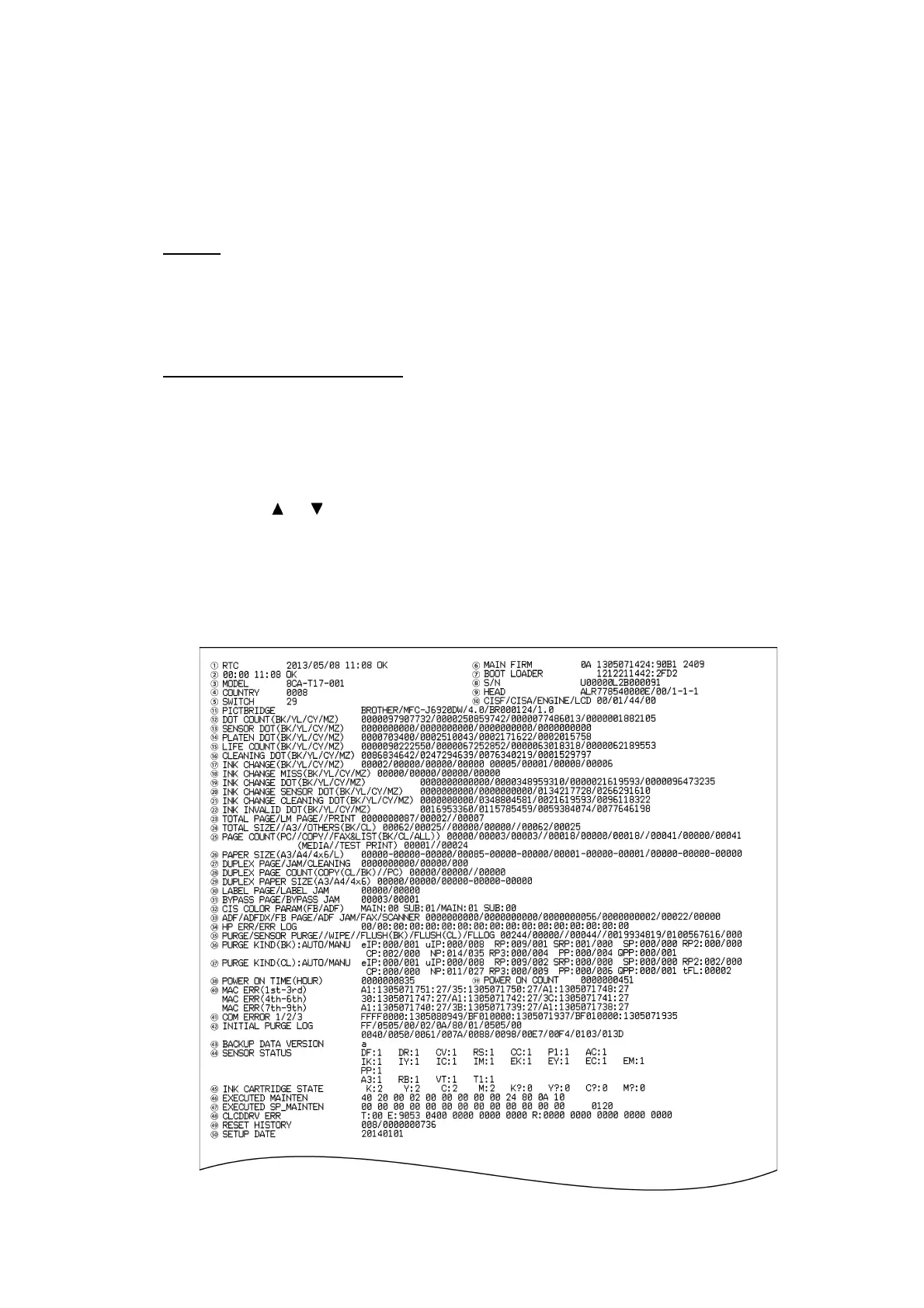

1.3.30 Print of the Maintenance Information (Maintenance mode 77)
< Function >
The machine prints out its log information or saves it into an external memory.
< Operating Procedure >
Printing
(1) Press the 7 key twice in the initial stage of the maintenance mode.
The machine prints out the maintenance information.
(2) Upon completion of the printing, the machine returns to the initial stage of the
maintenance mode.
Saving into an external memory
(1) Insert an external memory into the memory slot in the initial stage of the
maintenance mode.
The "****Active" or "?" appears on the LCD (where "****" is the name of the
inserted external memory).
(2) Press the 7 key twice to display "Print out" on the LCD.
(3) Press the or key to select "Save Data."
(4) Press the Mono Start key.
The LCD shows "******" (where "******" is "Model name + Lower 9 digits of the
machine’s serial number").
(5) Upon completion of the saving, the machine returns to the initial stage of the
maintenance mode.

Brother MFC-J6920DW Specifications

General

Type	all in one
Tray Capacity	500
Automatic Document Feeder Capacity	35 sheets
Paper Size	11" x 17"
Paper Handling	up to 500 sheets
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 6000 x 1200
Print Resolution Color	up to 6000 x 1200
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 2400 x 1200
Copier Resolution Color	up to 2400 x 1200
Fax Function	yes
Cartridges	lc103bk/c/m/y
Number Of Cartridges	4
Internal Memory	no
Memory Card	yes
Network	wireless
Connectivity	usb
OS Compatibility	pc: windows server 2003, server 2003 r2, server 2008, server 2008 r2, server 2012, xp home, xp professional, vista, 7 or 8, mac: os x v10.6x, 10.7x or 10.8x
Mobile Devices Connection	yes

Weight and Dimensions

Height	21.9 inches
Width	17 inches
Net Weight	36.4 pounds
