Brother MFC-J6920DW Service Manual

Confidential
2-3
2OVERVIEW

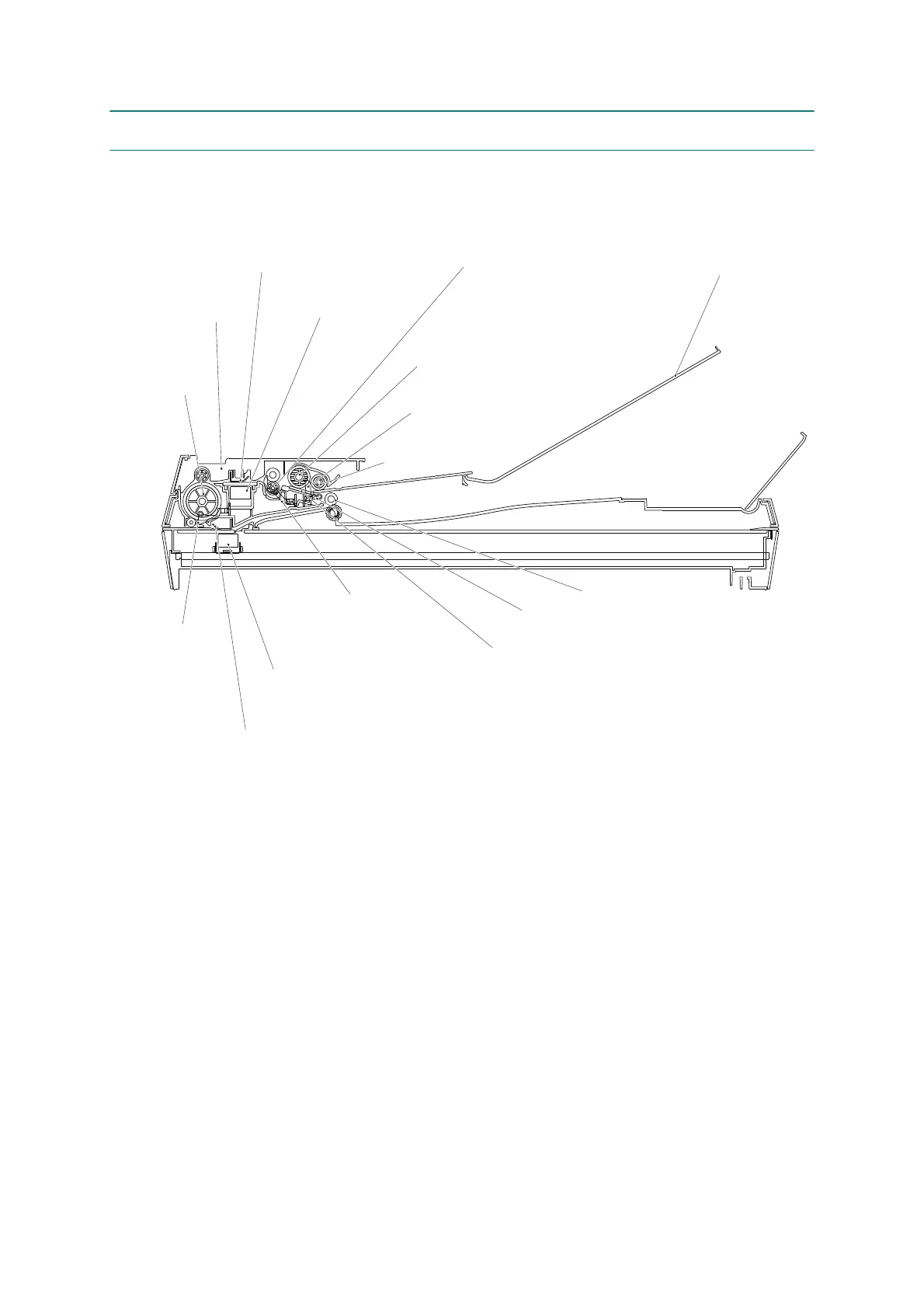

2.1 Cross-section Drawings
2.1.1 Document scanning
Fig. 2-1
ADF cover
Document
Second side document pressure bar
Document pick-up roller
Document separation roller
Document feed roller1
First side document pressure bar
First side CIS unit
scanning position
First side document
Document ejection roller
Document width actuator
Document detection actuator
ADF separation pad
actuator
Second side CIS unit
feed roller2
Second side document
scanning position actuator
Document tray
(Duplex scanning models only)
(Duplex scanning models only)
(Duplex scanning
models only)
(Duplex scanning models only)

Brother MFC-J6920DW Specifications

General

Type	all in one
Tray Capacity	500
Automatic Document Feeder Capacity	35 sheets
Paper Size	11" x 17"
Paper Handling	up to 500 sheets
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 6000 x 1200
Print Resolution Color	up to 6000 x 1200
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 2400 x 1200
Copier Resolution Color	up to 2400 x 1200
Fax Function	yes
Cartridges	lc103bk/c/m/y
Number Of Cartridges	4
Internal Memory	no
Memory Card	yes
Network	wireless
Connectivity	usb
OS Compatibility	pc: windows server 2003, server 2003 r2, server 2008, server 2008 r2, server 2012, xp home, xp professional, vista, 7 or 8, mac: os x v10.6x, 10.7x or 10.8x
Mobile Devices Connection	yes

Weight and Dimensions

Height	21.9 inches
Width	17 inches
Net Weight	36.4 pounds
