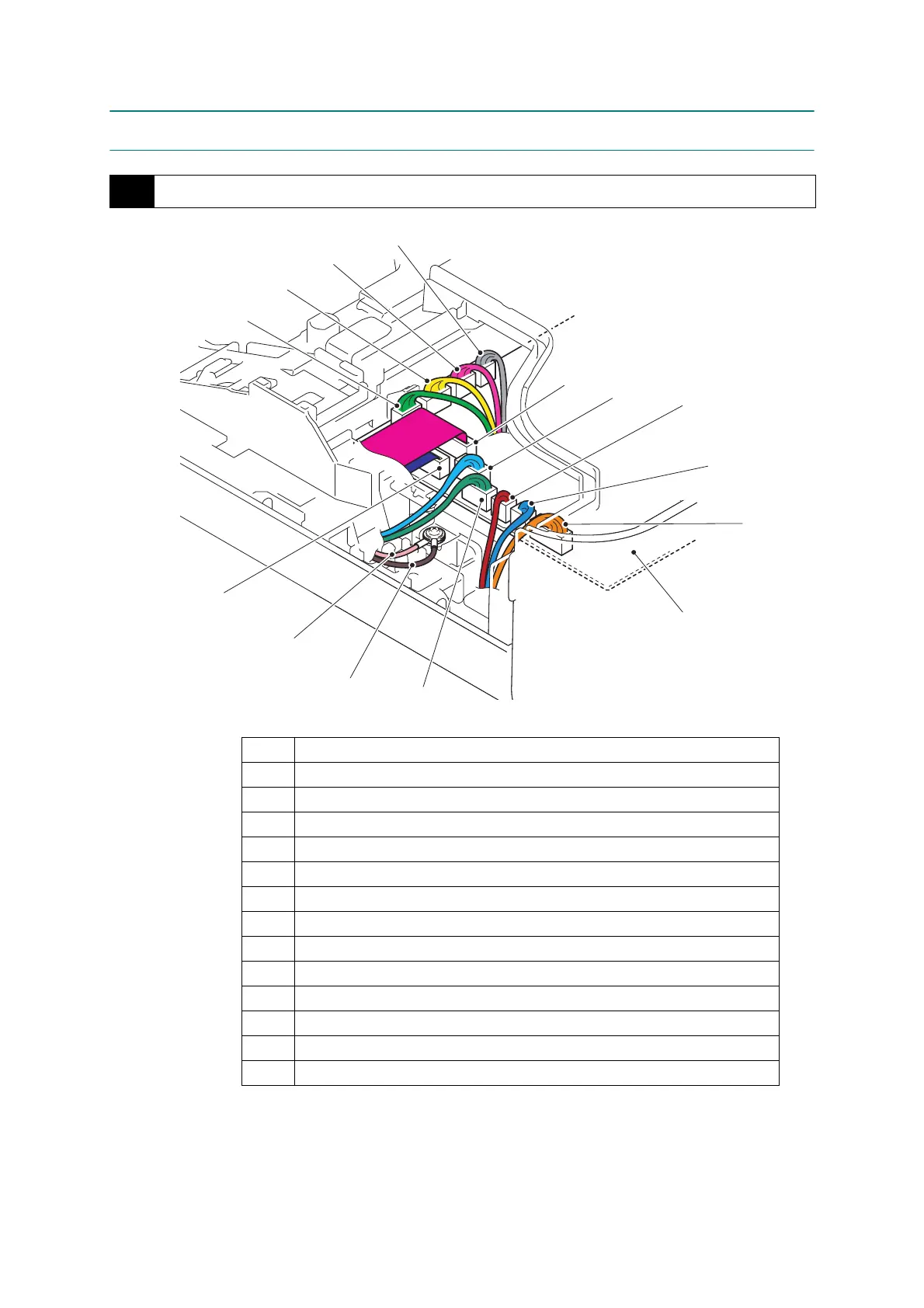

7 ROUTING OF HARNESSES AND INK SUPPLY TUBES
1 Main PCB ASSY
No. Harness name
1 ADF cover sensor harness
2 First side document scanning position sensor harness
3 Document detection sensor/Document width sensor harness
4 Second side document scanning position sensor harness
5 Scanner motor harness
6 ADF motor harness
7 FB FG wire
8 First side CIS flat cable
9 Second side CIS flat cable
10 Carriage motor harness
11 Paper feed motor harness
12 Power supply harness
13 ADF FG wire
1
2
3
4
8
5
10
11
12
9
7
6
Main PCB ASSY
13
