Brother MFC-J6920DW Service Manual

3-42
Confidential
9.4 FB Hinge

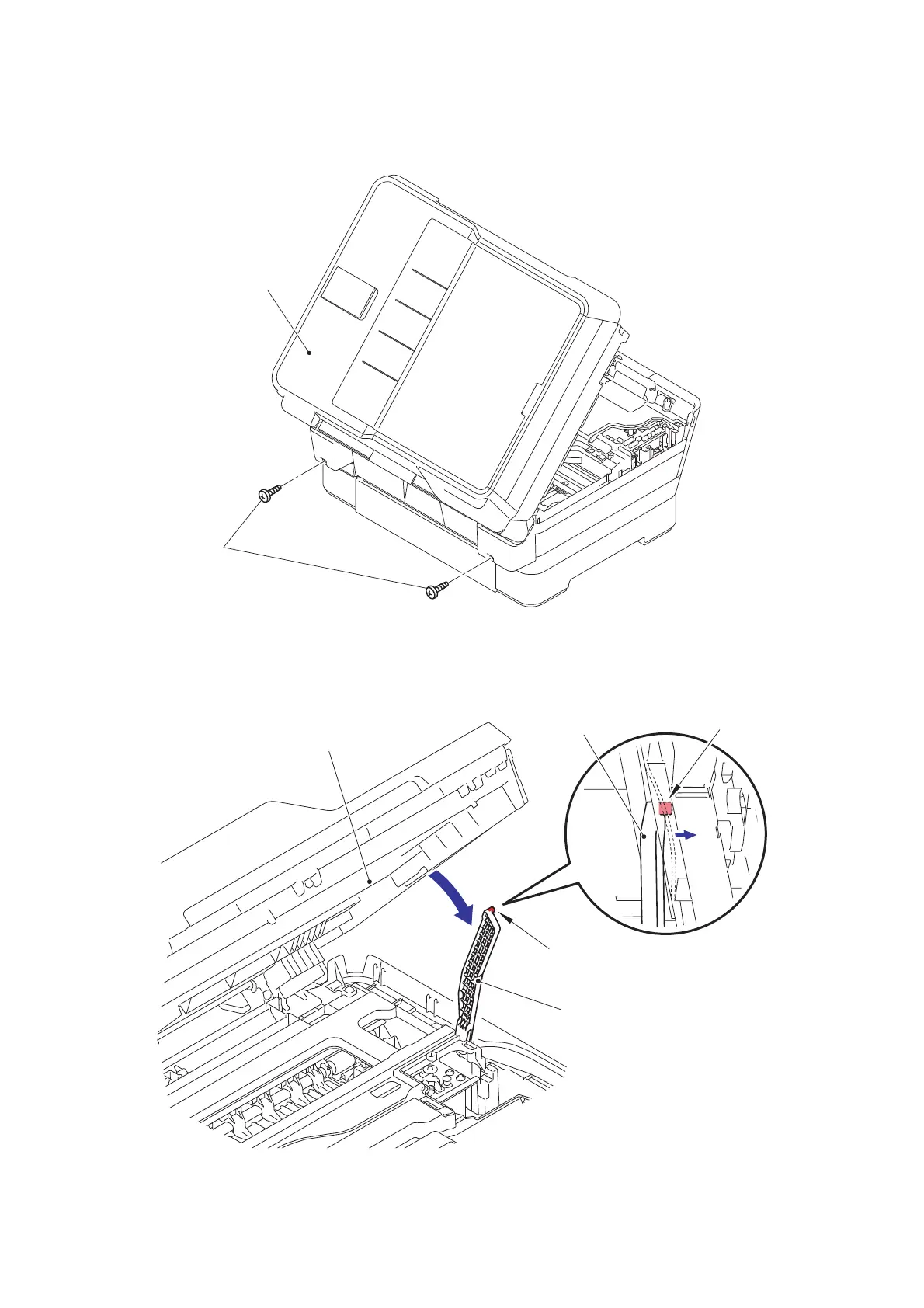

(1) Remove the two screws (TAPTITE BIND B M4x12).
Fig. 3-26
(2) Tilt the Scanner cover to the position shown in the figure.
(3) Remove the Pin of the Scanner cover support from the Scanner cover.
Fig. 3-27
TAPTITE BIND
B M4x12
Scanner cover
Scanner cover support
Pin
Scanner cover
Scanner cover support
Pin
