Brother MFC-J6920DW Service Manual

3-81
Confidential
9.29 NFC PCB
(1) Release the three Hooks and remove the NFC PCB from the Panel upper cover.

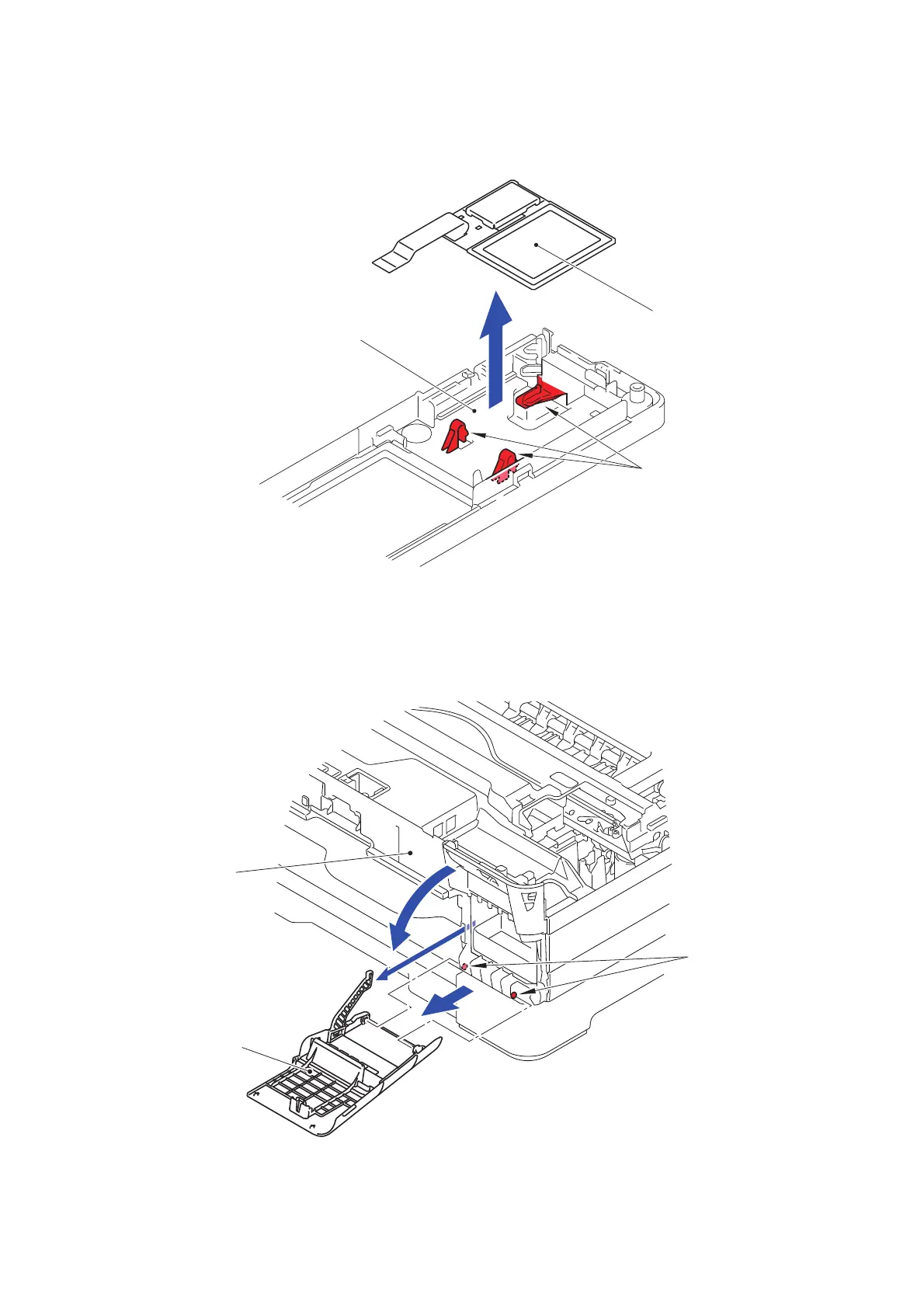

Fig. 3-90
9.30 Ink Cartridge Cover
(1) Open the Ink cartridge cover.
(2) Release the two Bosses and remove the Ink cartridge cover.
Fig. 3-91
Hooks
NFC PCB
Panel upper cover
Bosses
Ink cartridge cover
1
2
Machine body
