Brother MFC-J6920DW Service Manual

3-76
Confidential
9.25 Panel ASSY

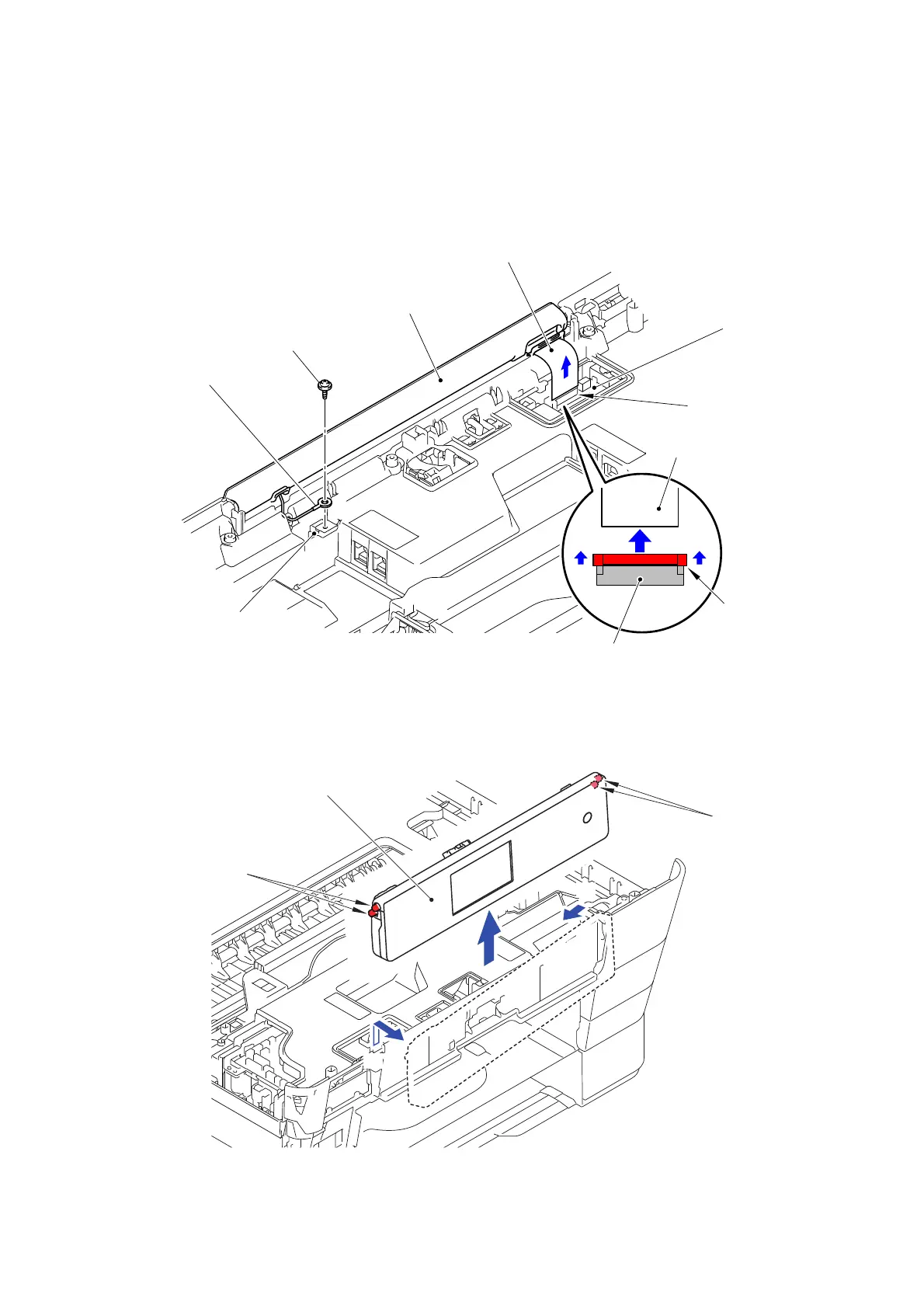

(1) Unlock the Connector and disconnect the Flat cable from the Main PCB ASSY.
(2) Remove the one screw (TAPTITE CUP S M3x6) and release the Panel grounding
wire from the Main PCB frame.
Fig. 3-81
(3) Release the four Bosses and remove the Panel ASSY.
Fig. 3-82
TAPTITE CUP S M3x6
Flat cable
Panel ASSY
Panel grounding wire
Connector
Main PCB
Main PCB frame
Pull here to unlock.
Flat cable
ASSY
Connector
Bosses
Bosses
Panel ASSY
3a
3c
3b

Brother MFC-J6920DW Specifications

General

Type	all in one
Tray Capacity	500
Automatic Document Feeder Capacity	35 sheets
Paper Size	11" x 17"
Paper Handling	up to 500 sheets
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 6000 x 1200
Print Resolution Color	up to 6000 x 1200
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 2400 x 1200
Copier Resolution Color	up to 2400 x 1200
Fax Function	yes
Cartridges	lc103bk/c/m/y
Number Of Cartridges	4
Internal Memory	no
Memory Card	yes
Network	wireless
Connectivity	usb
OS Compatibility	pc: windows server 2003, server 2003 r2, server 2008, server 2008 r2, server 2012, xp home, xp professional, vista, 7 or 8, mac: os x v10.6x, 10.7x or 10.8x
Mobile Devices Connection	yes

Weight and Dimensions

Height	21.9 inches
Width	17 inches
Net Weight	36.4 pounds
