Brother MFC-J6920DW Service Manual

Confidential
2-9

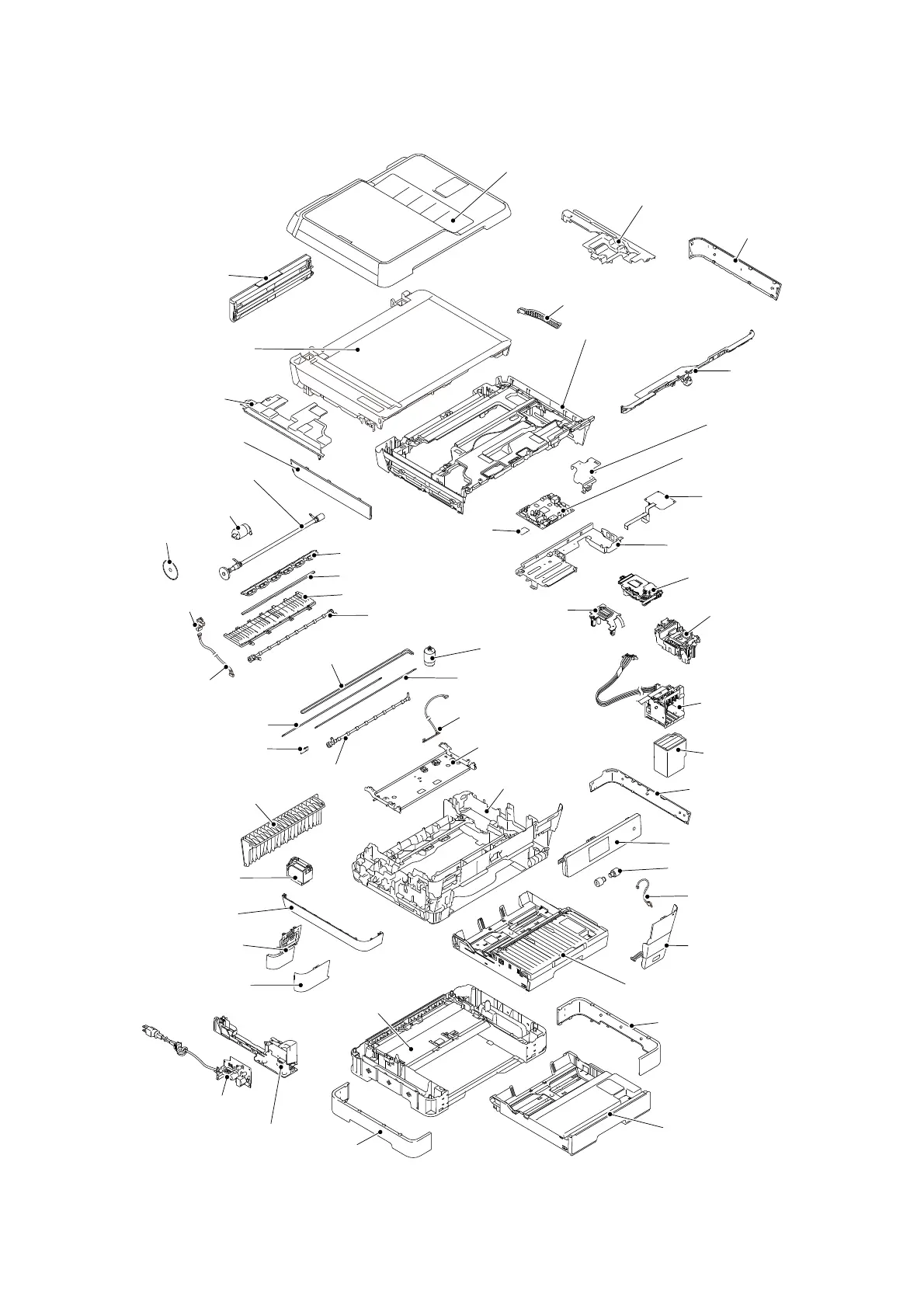

2.5 Components
Fig. 2-6
ADF unit
Ink absorber box cover
Upper side cover R
Main PCB ASSY
MJ PCB
Main PCB frame
Panel holder
Maintenance unit
Lower side cover R
Panel ASSY
Front cover L
Media cover
Lower side cover L
Jam clear cover
Upper side cover L
Upper cover
Frame base
Lower cover
Harness cover
Scanner cover support
Wireless LAN PCB ASSY
Head/carriage unit
Ink refill ASSY
Ink cartridge cover
sensor ASSY
Ink absorber box
Ink cartridge cover
Power supply PCB ASSY
PF encoder/registration
sensor harness
PF encoder
sensor PCB ASSY
Flushing box
Registration sensor
PCB ASSY
Document scanner unit
Manual feed slot
cover ASSY
Paper tray 1
Lower power supply frame
PF encoder disk
Inner chute ASSY
Paper feed roller
Paper feed motor
Platen foam
Paper ejection
Platen
CR timing belt
CR encoder strip
Encoder strip guard film
Switchback sensor PCB
Switchback roller
Carriage motor ASSY
Main PCB shield
Side cover L
Side cover R
Lower tray
Carriage PCB
T1 paper pull-in roller
Lower tray unit
roller
ASSY

Brother MFC-J6920DW Specifications

General

Type	all in one
Tray Capacity	500
Automatic Document Feeder Capacity	35 sheets
Paper Size	11" x 17"
Paper Handling	up to 500 sheets
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 6000 x 1200
Print Resolution Color	up to 6000 x 1200
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 2400 x 1200
Copier Resolution Color	up to 2400 x 1200
Fax Function	yes
Cartridges	lc103bk/c/m/y
Number Of Cartridges	4
Internal Memory	no
Memory Card	yes
Network	wireless
Connectivity	usb
OS Compatibility	pc: windows server 2003, server 2003 r2, server 2008, server 2008 r2, server 2012, xp home, xp professional, vista, 7 or 8, mac: os x v10.6x, 10.7x or 10.8x
Mobile Devices Connection	yes

Weight and Dimensions

Height	21.9 inches
Width	17 inches
Net Weight	36.4 pounds
