Brother MFC-J6920DW Service Manual

3-47
Confidential
9.7 Document Scanner Side Cover R

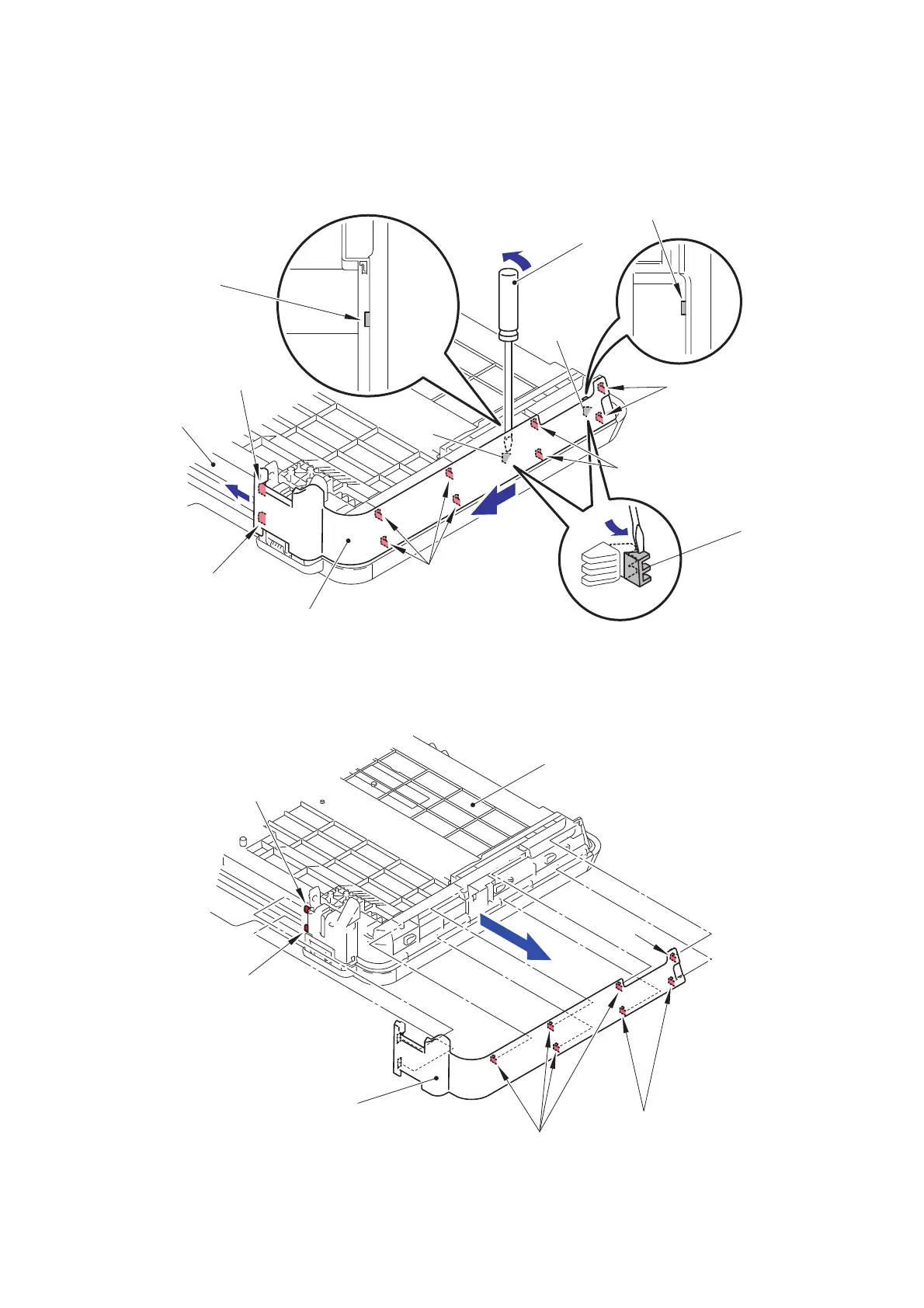

(1) Insert a Flat screwdriver into the Cutout and release the sections “A” and “B”.
(2) Slide the Document scanner side cover R to release the nine Hooks.
Fig. 3-34
(3) Remove the Document scanner side cover R from the Document scanner unit.
Fig. 3-35
Hook
Hook
Cutout
Document scanner side cover R
Hooks
Hooks
Hooks
Document
“A”
“A”
Flat screwdriver
“B”
Cutout
“B”
scanner unit
Document scanner side cover R
Hooks
Hooks
Hook
Hook
Document scanner unit
Hook
