Brother MFC-J6920DW Service Manual

3-6
Confidential

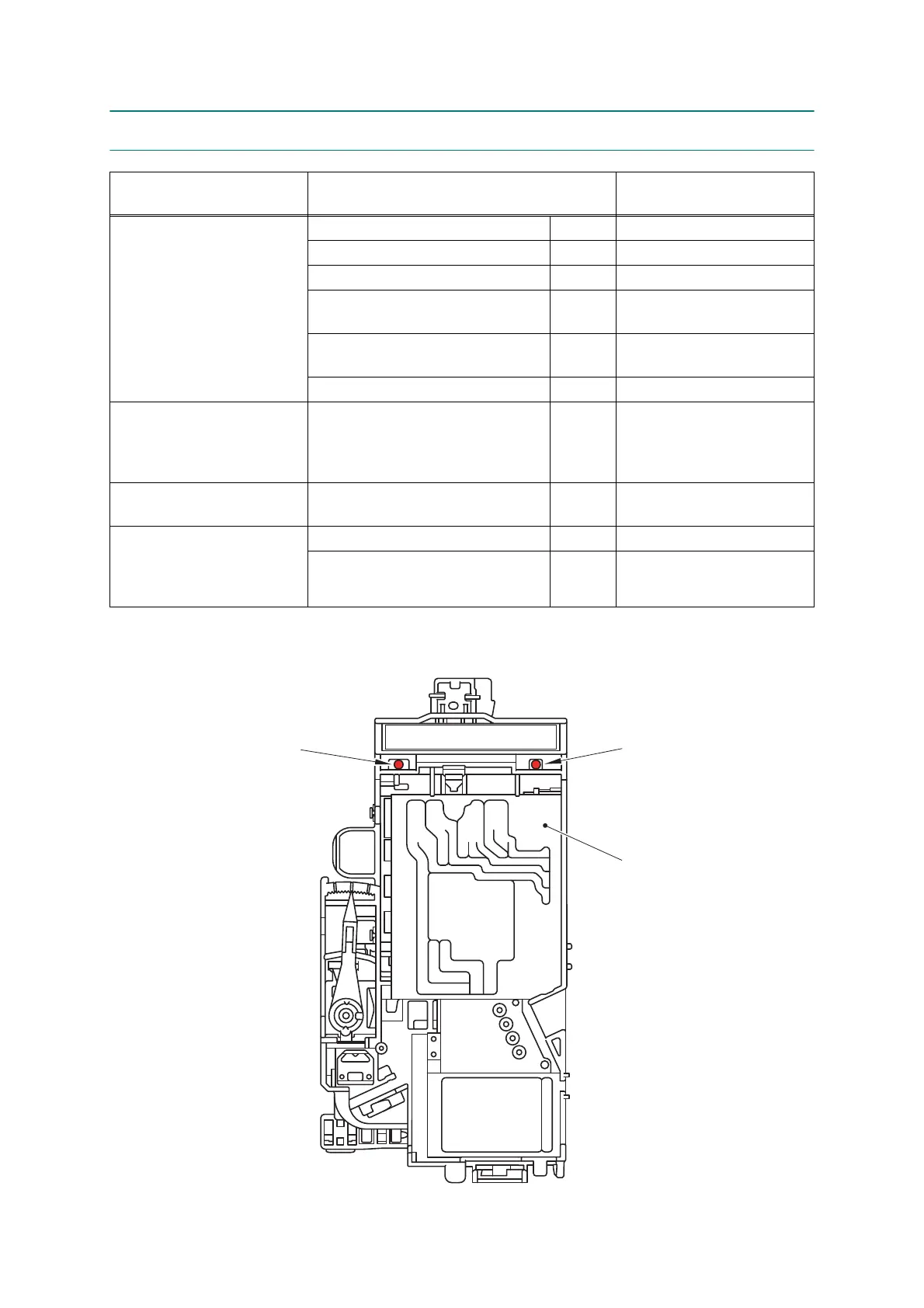

5 LUBRICATION
 Head/carriage unit
Lubricant type
(Manufacturer)
Lubrication points Lubricant amount per point
FLOIL BG-1319
(Kanto Kasei)
Head/carriage unit 2 1.0 mm diameter ball
CR guide rail (Top surface) 24 2.0 mm diameter ball
CR frame (Top surface) 24 2.0 mm diameter ball
CR frame (Inner side face of
vertical edge at the front side)
30 2.0 mm diameter ball
CR frame (Inner side face of
vertical edge at the rear side)
30 2.0 mm diameter ball
CR frame (Rear surface) 2 1.0 mm diameter ball
Molykote EM-30LP
(Dow Corning) or
FLOIL BG-10KS
(Kanto Kasei)
Platen 4 1.0 mm diameter ball
Permalub BAN-5
(Nippeco)
Paper feed roller 2 2.0 mm diameter ball x 2
Molykote EM-30LP
(Dow Corning) or
FLOIL BG-10KS
(Kanto Kasei)
T1 paper pull-in roller 2 2.0 mm diameter ball
T2 paper pull-in roller 2 2.0 mm diameter ball
Apply grease here.
Apply grease here.
Head/carriage unit

Brother MFC-J6920DW Specifications

General

Type	all in one
Tray Capacity	500
Automatic Document Feeder Capacity	35 sheets
Paper Size	11" x 17"
Paper Handling	up to 500 sheets
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 6000 x 1200
Print Resolution Color	up to 6000 x 1200
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 2400 x 1200
Copier Resolution Color	up to 2400 x 1200
Fax Function	yes
Cartridges	lc103bk/c/m/y
Number Of Cartridges	4
Internal Memory	no
Memory Card	yes
Network	wireless
Connectivity	usb
OS Compatibility	pc: windows server 2003, server 2003 r2, server 2008, server 2008 r2, server 2012, xp home, xp professional, vista, 7 or 8, mac: os x v10.6x, 10.7x or 10.8x
Mobile Devices Connection	yes

Weight and Dimensions

Height	21.9 inches
Width	17 inches
Net Weight	36.4 pounds
