Brother MFC-J6920DW Service Manual

3-7
Confidential
 CR guide rail and CR frame (Top surface)

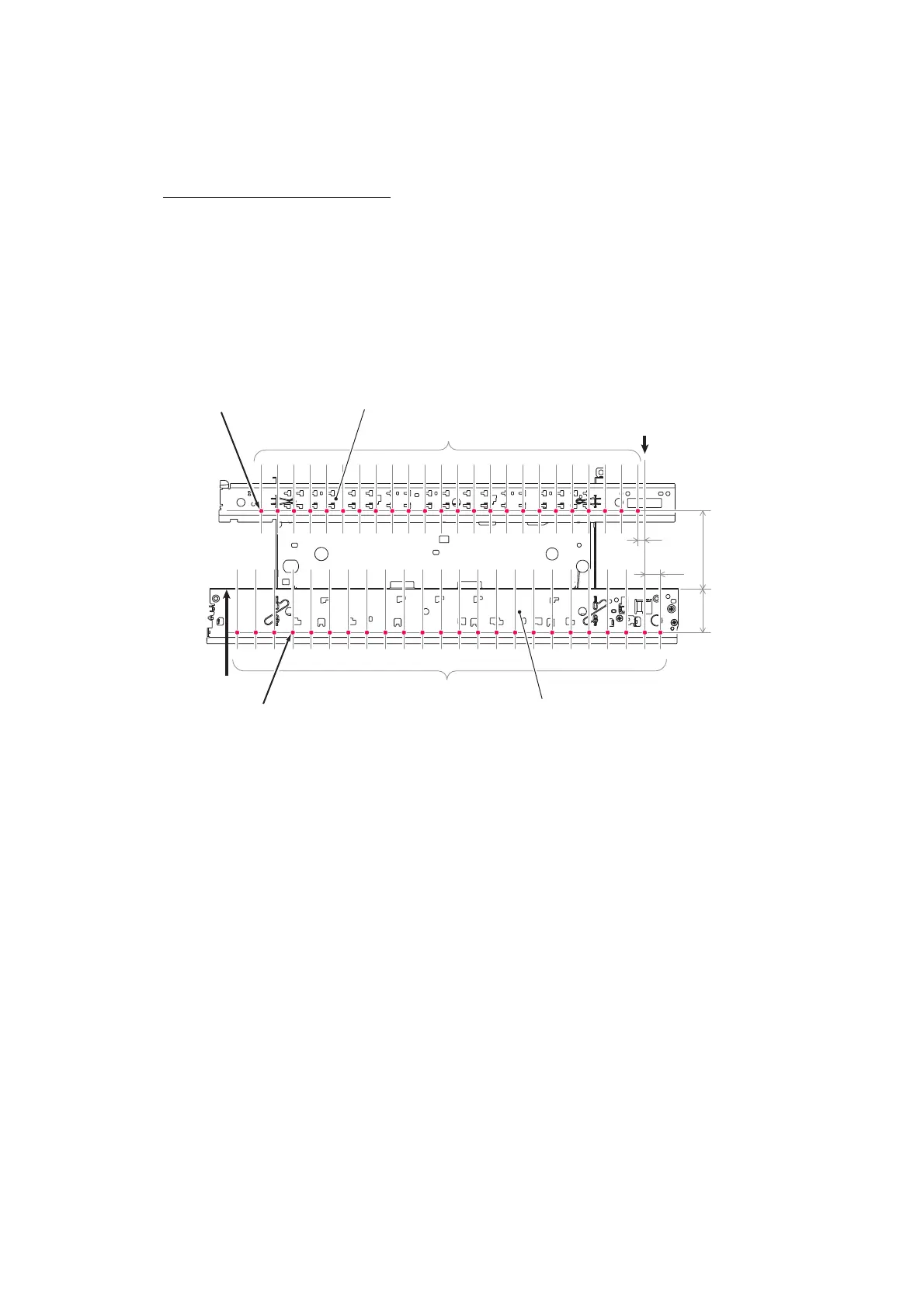

Apply grease (FLOIL BG1319) at the size of 2 mm diameter to 48 locations in total shown in the
figure below.
Grease application procedures
(1) Move the Head/carriage unit to the left end.
(2) Before applying grease, wipe dirt and dust on the area to which grease is to be applied with
a cloth damped with alcohol.
(3) After applying grease, move the Head/carriage unit from the left end to the right end in
order to spread grease.
Apply grease here.
Apply grease here.
CR guide rail
CR frame
(mm)
Reference Y
24 locations at intervals of 16.2
24 locations at intervals of 17.8
76.05±0.542.65±0.5
14
4
Carriage home position

Brother MFC-J6920DW Specifications

General

Type	all in one
Tray Capacity	500
Automatic Document Feeder Capacity	35 sheets
Paper Size	11" x 17"
Paper Handling	up to 500 sheets
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 6000 x 1200
Print Resolution Color	up to 6000 x 1200
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 2400 x 1200
Copier Resolution Color	up to 2400 x 1200
Fax Function	yes
Cartridges	lc103bk/c/m/y
Number Of Cartridges	4
Internal Memory	no
Memory Card	yes
Network	wireless
Connectivity	usb
OS Compatibility	pc: windows server 2003, server 2003 r2, server 2008, server 2008 r2, server 2012, xp home, xp professional, vista, 7 or 8, mac: os x v10.6x, 10.7x or 10.8x
Mobile Devices Connection	yes

Weight and Dimensions

Height	21.9 inches
Width	17 inches
Net Weight	36.4 pounds
