Brother MFC-J6920DW Service Manual

3-8
Confidential

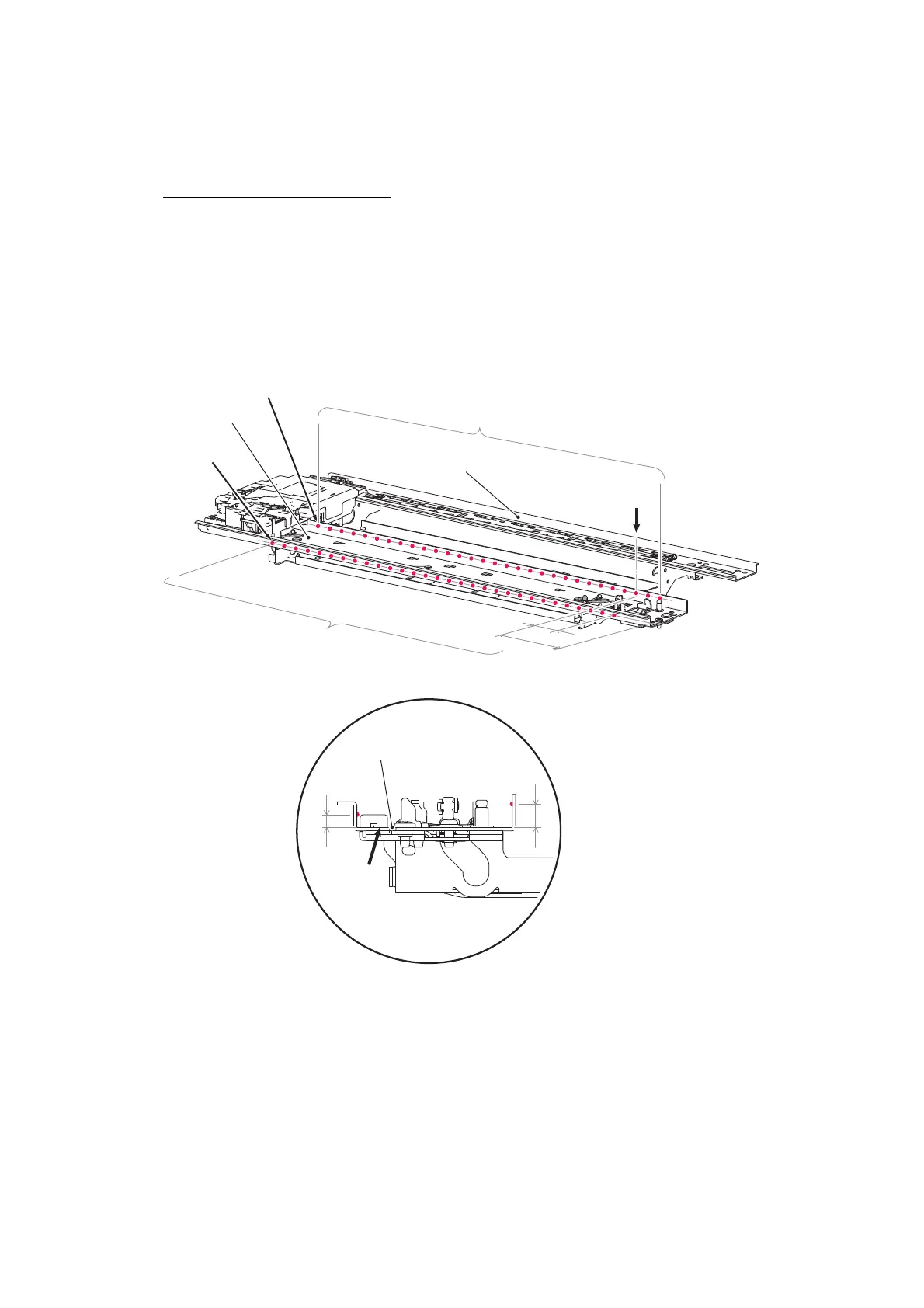

 CR frame (Inner side face of vertical edge at the front and rear sides)
Apply grease (FLOIL BG1319) at the size of 2 mm diameter to 60 locations in total shown in the
figure below.
Grease application procedures
(1) Move the Head/carriage unit to the left end.
(2) Before applying grease, wipe dirt and dust on the area to which grease is to be applied with
a cloth damped with alcohol.
(3) After applying grease, move the Head/carriage unit from the left end to the right end in
order to spread grease.
30 locations at intervals of 14.2
30 locations at intervals of 14.2
Carriage
Reference
CR frame
Apply grease here.
Apply grease here.
CR frame
CR guide rail
3.7±0.5
7.65±0.5
（mm）
34.3
26
home position
on the
sliding surface Z

Brother MFC-J6920DW Specifications

General

Type	all in one
Tray Capacity	500
Automatic Document Feeder Capacity	35 sheets
Paper Size	11" x 17"
Paper Handling	up to 500 sheets
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 6000 x 1200
Print Resolution Color	up to 6000 x 1200
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 2400 x 1200
Copier Resolution Color	up to 2400 x 1200
Fax Function	yes
Cartridges	lc103bk/c/m/y
Number Of Cartridges	4
Internal Memory	no
Memory Card	yes
Network	wireless
Connectivity	usb
OS Compatibility	pc: windows server 2003, server 2003 r2, server 2008, server 2008 r2, server 2012, xp home, xp professional, vista, 7 or 8, mac: os x v10.6x, 10.7x or 10.8x
Mobile Devices Connection	yes

Weight and Dimensions

Height	21.9 inches
Width	17 inches
Net Weight	36.4 pounds
