Brother MFC-J6920DW Service Manual

3-59
Confidential
9.17 Second Side CIS Unit

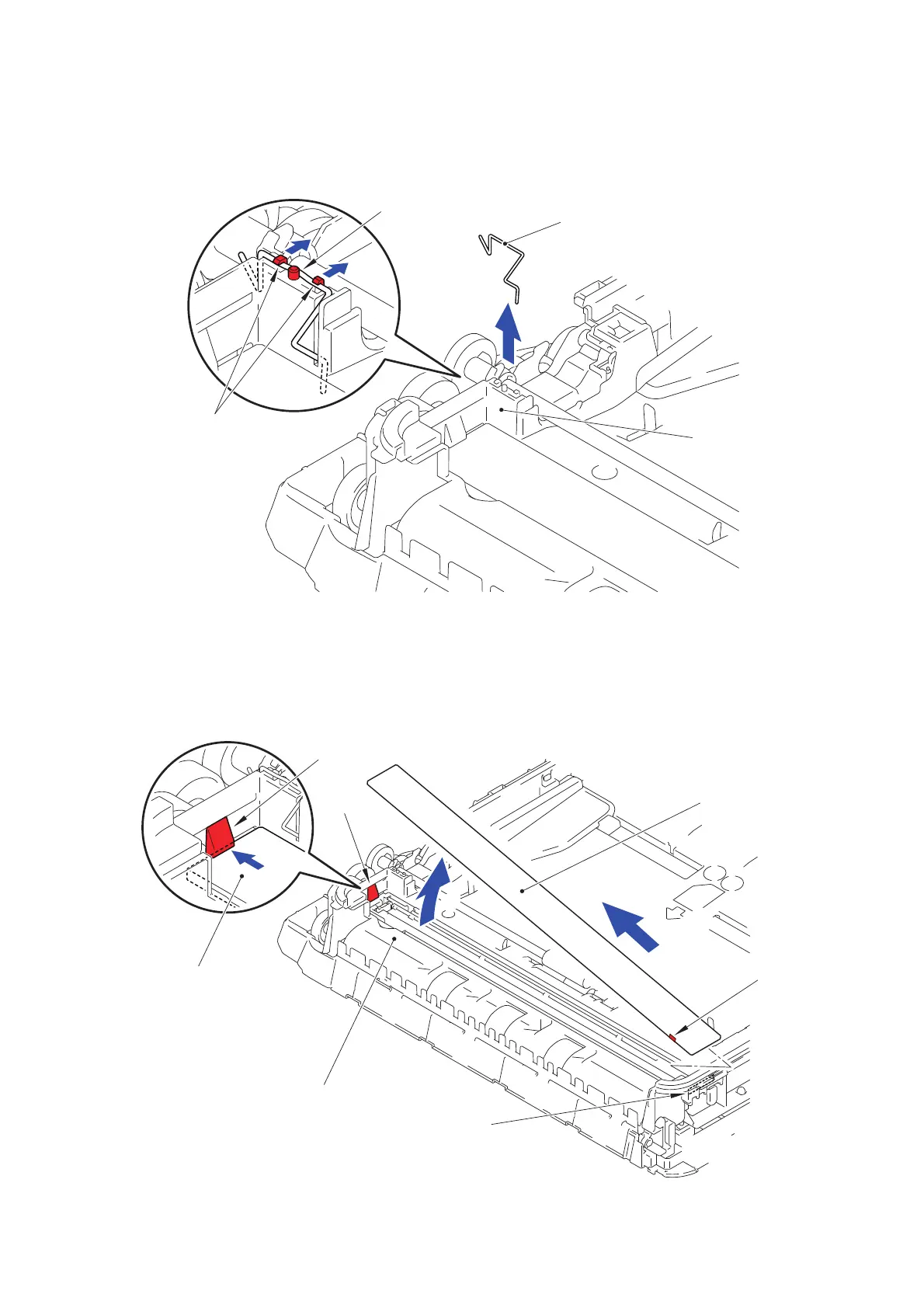

(1) Release the two Hooks on the Upper document chute and remove the ADF earth
spring from the Upper document chute.
Fig. 3-54
(2) Release the Hook on the Upper document chute and remove the CIS glass from
the Upper document chute.
Assembling Note: Mount the CIS glass to the Upper document chute in the mounting
direction so that the color mark point of the CIS glass comes to the
position shown in the figure.
Fig. 3-55
Hooks
ADF earth spring
Upper document
chute
Boss
1a
1b
Upper document chute
CIS glass
CIS glass
Hole
Color
Hook
2c
Hook
2a
2b
mark
