Brother MFC-J6920DW Service Manual

3-115
Confidential

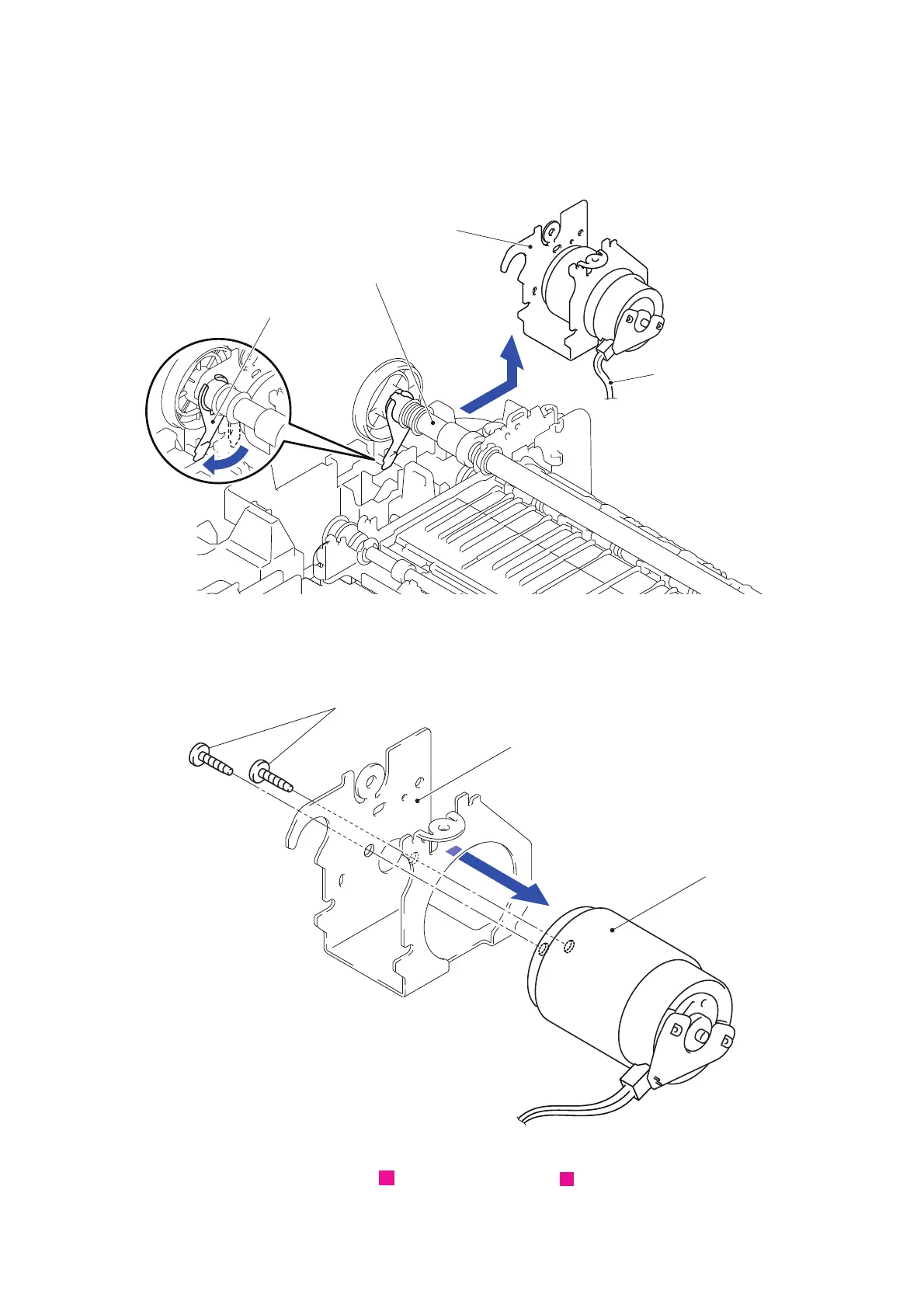

(4) Release the wiring of the Paper feed motor harness.
(5) Turn the Bushing in the direction of the arrow 5 to unlock it.
(6) Remove the Paper feed motor frame ASSY from the Paper feed roller.
Fig. 3-137
(7) Remove the two screws (SCREW BIND M3x6) and take off the paper feed motor
from the Paper feed motor frame.
Fig. 3-138
Harness routing: Refer to " Paper feed motor", " Lower cover (Left side)"
Bushing
Paper feed motor frame ASSY
Paper feed roller
5
6
Paper feed motor harness
<Front>
<Rear>
SCREW BIND M3x6
Paper feed motor
Paper feed motor frame
11
12

Brother MFC-J6920DW Specifications

General

Type	all in one
Tray Capacity	500
Automatic Document Feeder Capacity	35 sheets
Paper Size	11" x 17"
Paper Handling	up to 500 sheets
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 6000 x 1200
Print Resolution Color	up to 6000 x 1200
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 2400 x 1200
Copier Resolution Color	up to 2400 x 1200
Fax Function	yes
Cartridges	lc103bk/c/m/y
Number Of Cartridges	4
Internal Memory	no
Memory Card	yes
Network	wireless
Connectivity	usb
OS Compatibility	pc: windows server 2003, server 2003 r2, server 2008, server 2008 r2, server 2012, xp home, xp professional, vista, 7 or 8, mac: os x v10.6x, 10.7x or 10.8x
Mobile Devices Connection	yes

Weight and Dimensions

Height	21.9 inches
Width	17 inches
Net Weight	36.4 pounds
