3-19

Confidential

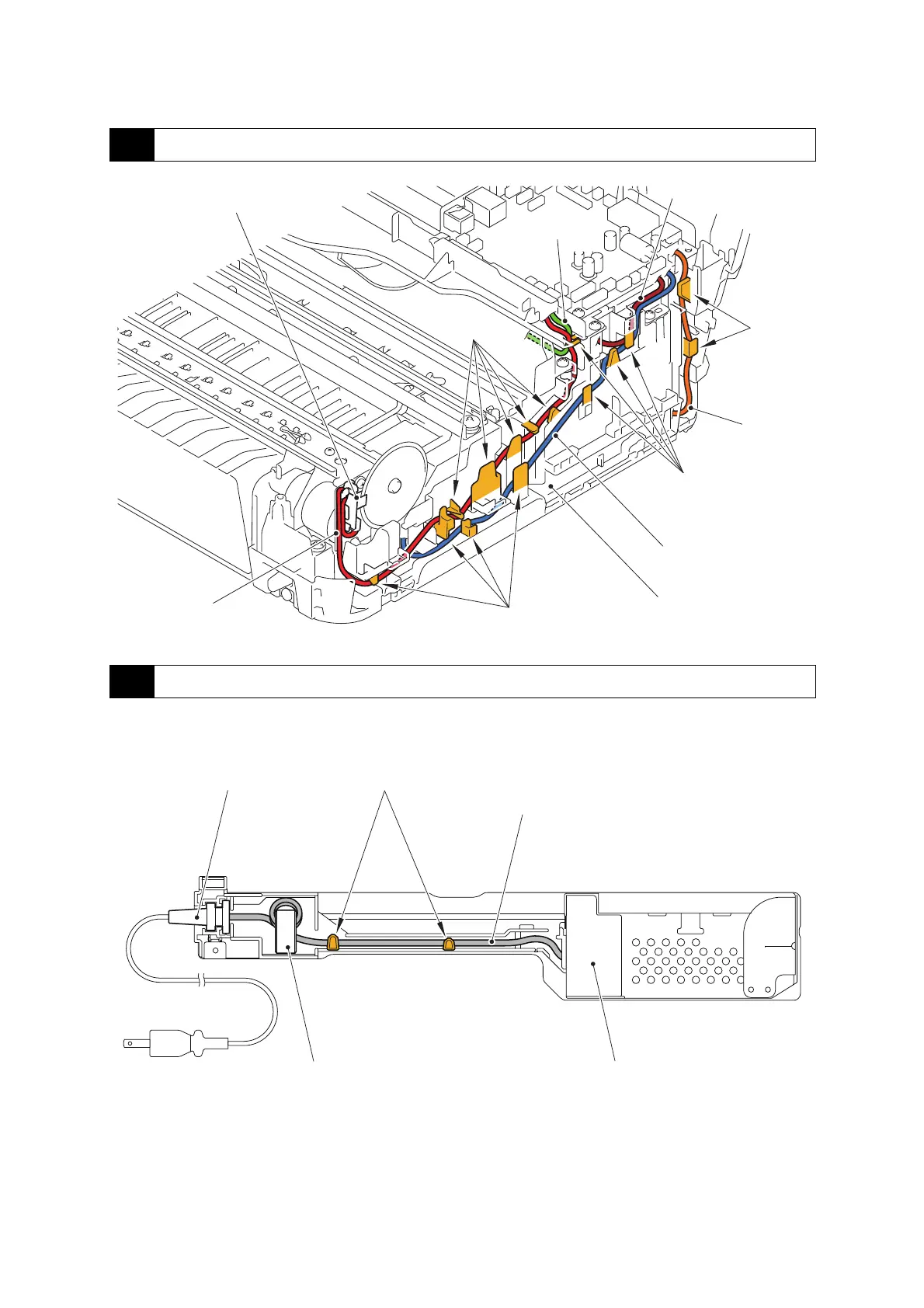

12 Lower cover (Left side)

13 Power supply PCB ASSY

Carriage motor harness

Cable

guides

Power

supply

harness

Switchback

sensor harness

Cable guides

Paper feed motor

harness

Lower cover

Cable guides

PF encoder sensor PCB ASSY

PF encoder/registration

sensor harness

Power cord bushing

Cable guides

Power cord

Ferrite core

Power supply shield

Default Chapter4
