Brother MFC-J6920DW Service Manual

3-113
Confidential
(3) Release the wiring of the PF encoder/registration sensor harness.
(4) Remove the one screw (SCREW BIND M2x12) and remove the PF encoder
sensor holder from the Paper feed motor frame ASSY.
(5) Remove the PF encoder sensor PCB ASSY from the PF encoder sensor holder.
(6) Disconnect the PF encoder/registration sensor harness from the PF encoder
sensor PCB ASSY.

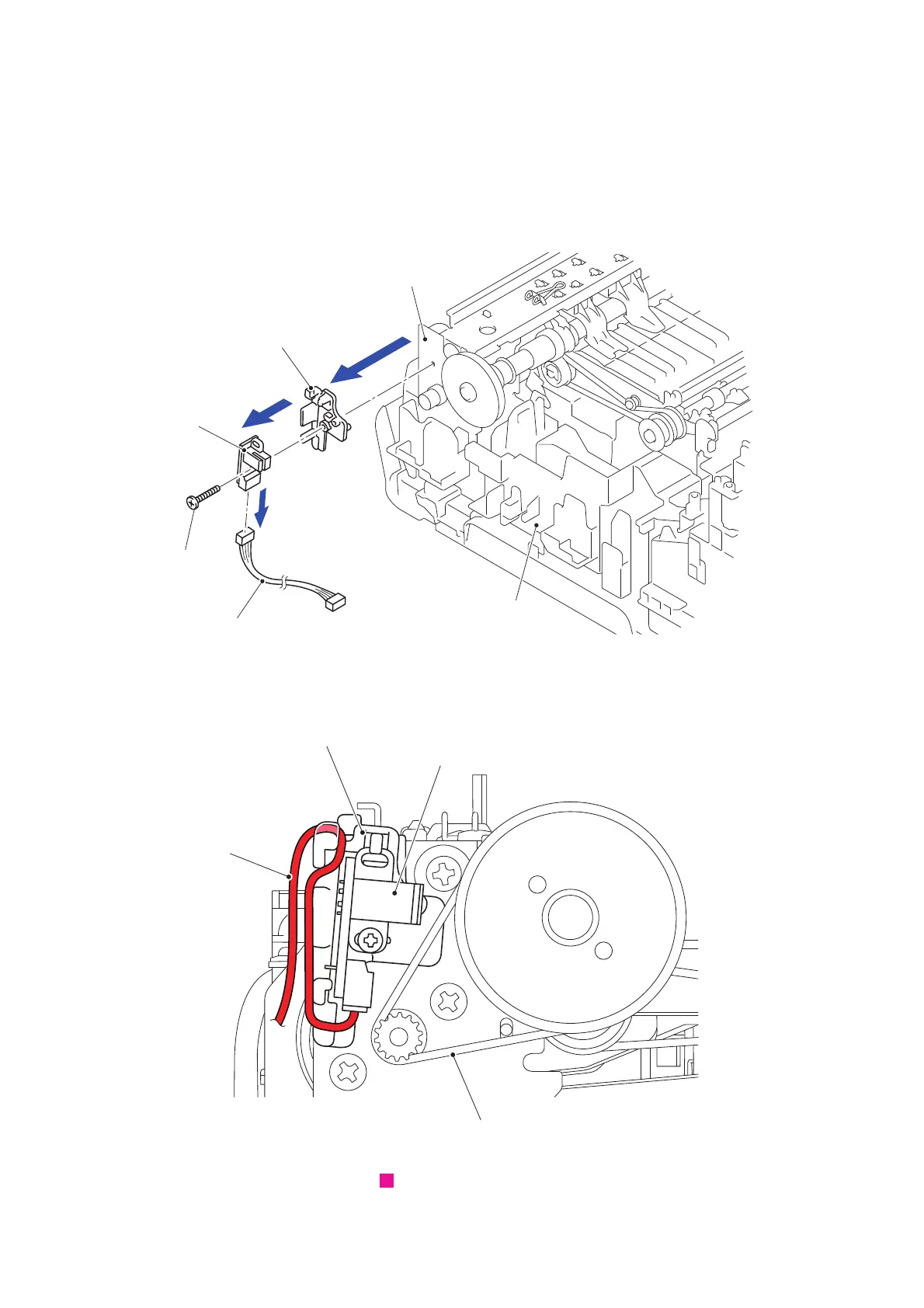

Fig. 3-133
Assembling Note: Mount the PF encoder sensor PCB ASSY as shown in the figure
below.
Fig. 3-134
Harness routing: Refer to " Lower cover (Left side)"
SCREW BIND M2x12
PF encoder sensor
PCB ASSY
PF encoder sensor holder
Paper feed motor frame ASSY
4
5
PF encoder/registration sensor harness
Lower cover
Paper feed roller belt
PF encoder/
registration sensor harness
PF encoder sensor PCB ASSY
PF encoder sensor holder
12

Brother MFC-J6920DW Specifications

General

Type	all in one
Tray Capacity	500
Automatic Document Feeder Capacity	35 sheets
Paper Size	11" x 17"
Paper Handling	up to 500 sheets
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 6000 x 1200
Print Resolution Color	up to 6000 x 1200
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 2400 x 1200
Copier Resolution Color	up to 2400 x 1200
Fax Function	yes
Cartridges	lc103bk/c/m/y
Number Of Cartridges	4
Internal Memory	no
Memory Card	yes
Network	wireless
Connectivity	usb
OS Compatibility	pc: windows server 2003, server 2003 r2, server 2008, server 2008 r2, server 2012, xp home, xp professional, vista, 7 or 8, mac: os x v10.6x, 10.7x or 10.8x
Mobile Devices Connection	yes

Weight and Dimensions

Height	21.9 inches
Width	17 inches
Net Weight	36.4 pounds
