Brother MFC-J6920DW Service Manual

3-29
Confidential

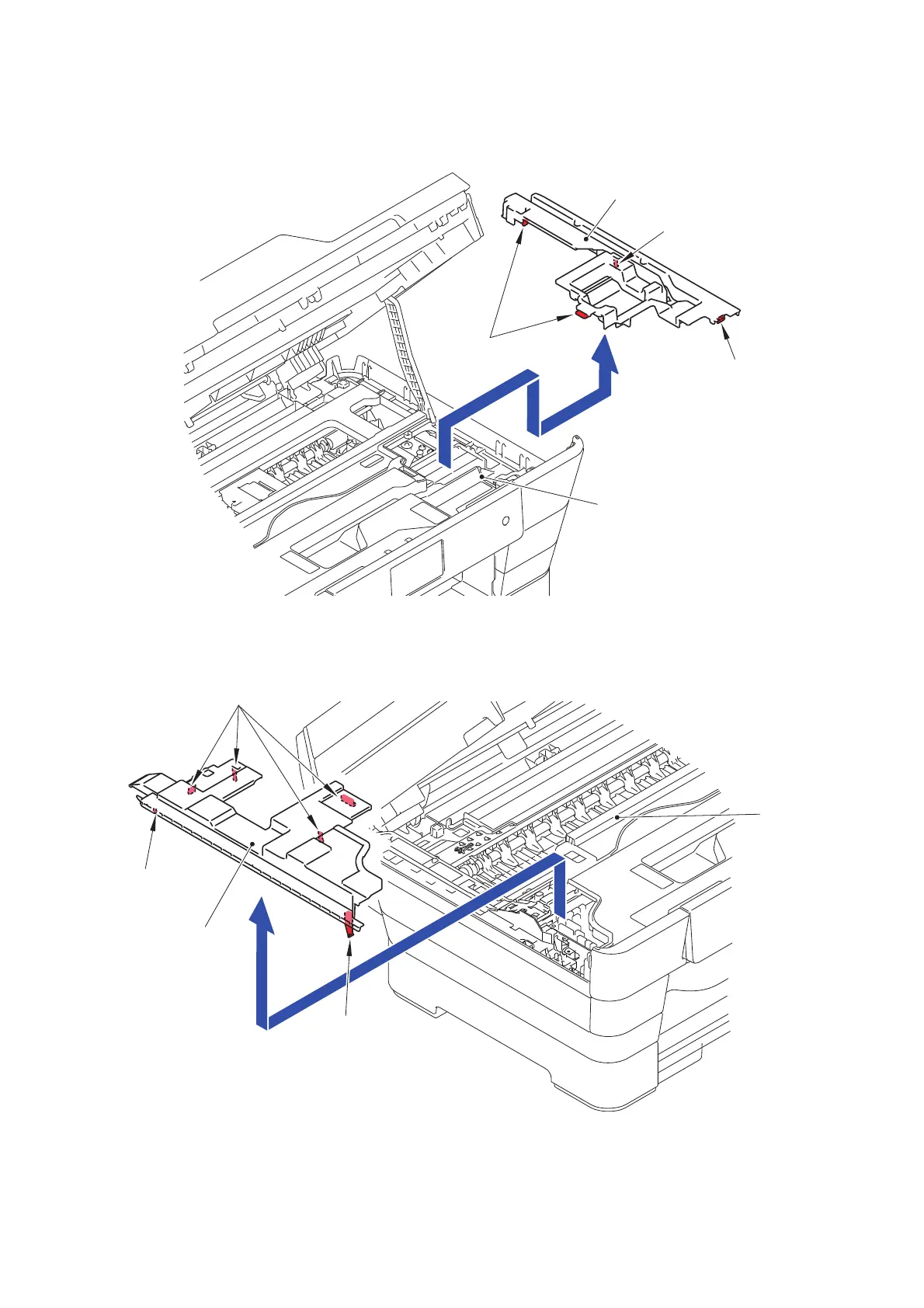

(5) Release the four Hooks and remove the Ink absorber box cover from the Upper
cover.
Fig. 3-4
(6) Release the six Hooks and remove the Harness cover from the Upper cover.
Fig. 3-5
Hooks
Hook
Hook
Ink absorber box cover
Upper cover
Hooks
Upper
Hook
Hook
cover
Harness cover
Hooks
Upper
Hook
cover
Harness cover
