Brother MFC-J6920DW Service Manual

3-50
Confidential
(5) Turn the Document scanner unit right side up.
(6) Remove the two screws (TAPTITE BIND B M4x12) from the Document scanner unit.
(7) Open the ADF unit fully.
Note: Lifting up the ASSY without fully opening it in step (8) opens the ADF hinge
suddenly and unexpectedly with great force. It is DANGEROUS!
Hinweis: Das Anheben der Baugruppe, ohne sie zuvor vollständig geöffnet zu haben,
führt in Schritt (8) dazu, dass der Scharnierarm L plötzlich und unerwartet mit
großer Kraft nach oben schnellt. Dies ist GEFÄHRLICH!

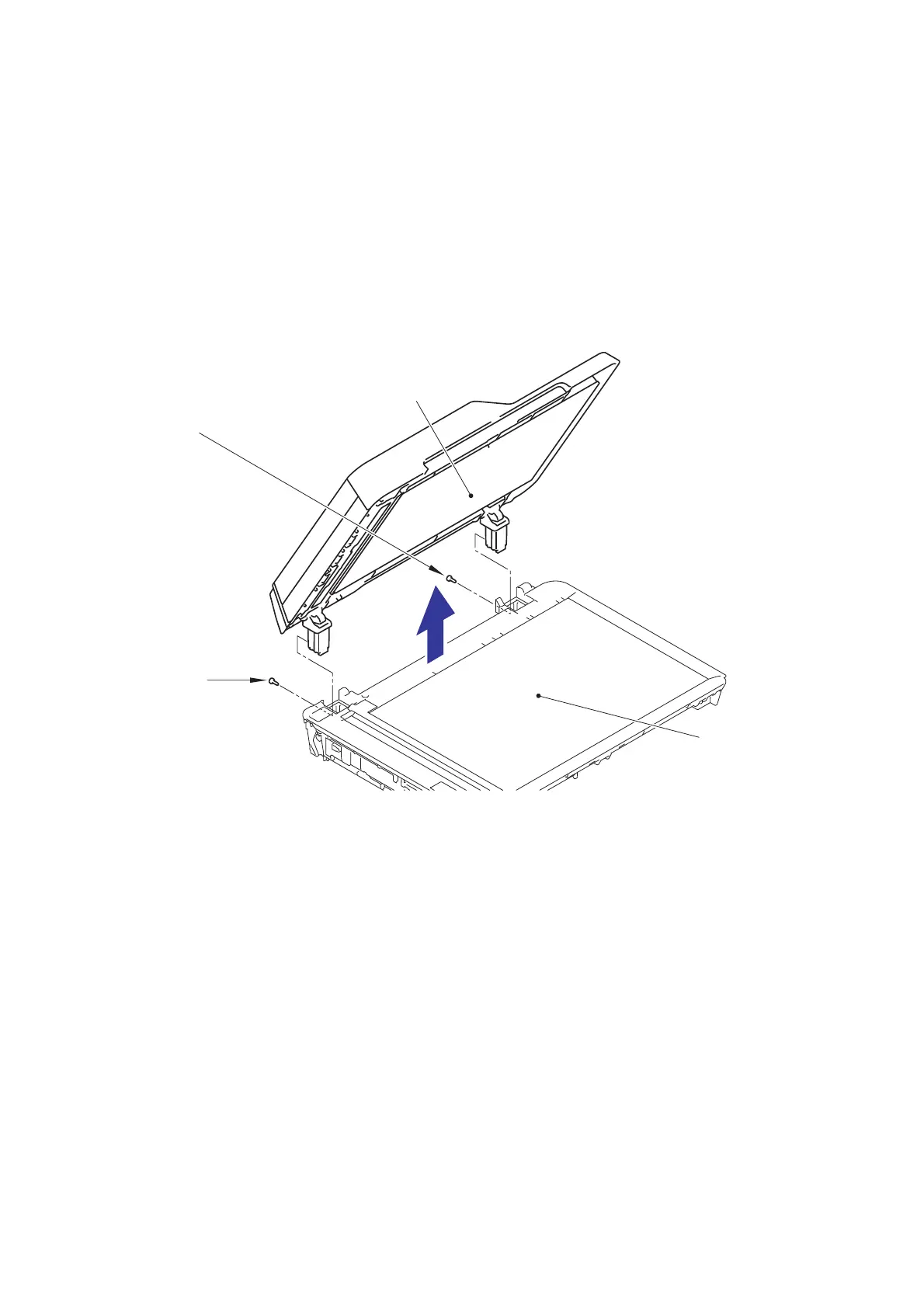

(8) Remove the ADF unit from the Document scanner unit.
Fig. 3-40
TAPTITE BIND B M4x12
TAPTITE BIND
B M4x12
ADF unit
Document scanner
unit

Brother MFC-J6920DW Specifications

General

Type	all in one
Tray Capacity	500
Automatic Document Feeder Capacity	35 sheets
Paper Size	11" x 17"
Paper Handling	up to 500 sheets
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 6000 x 1200
Print Resolution Color	up to 6000 x 1200
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 2400 x 1200
Copier Resolution Color	up to 2400 x 1200
Fax Function	yes
Cartridges	lc103bk/c/m/y
Number Of Cartridges	4
Internal Memory	no
Memory Card	yes
Network	wireless
Connectivity	usb
OS Compatibility	pc: windows server 2003, server 2003 r2, server 2008, server 2008 r2, server 2012, xp home, xp professional, vista, 7 or 8, mac: os x v10.6x, 10.7x or 10.8x
Mobile Devices Connection	yes

Weight and Dimensions

Height	21.9 inches
Width	17 inches
Net Weight	36.4 pounds
