Brother MFC-J6920DW Service Manual

3-63
Confidential

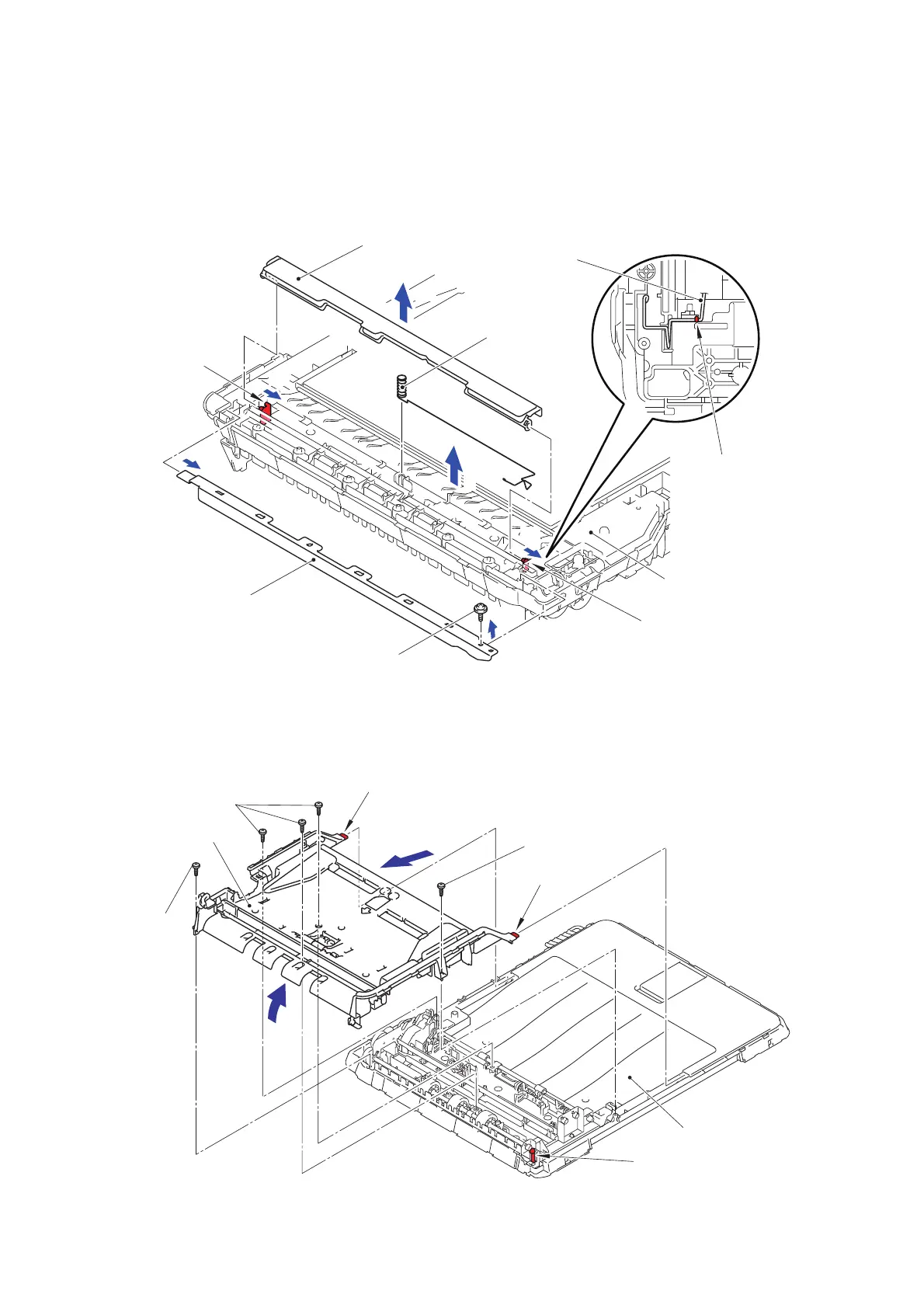

(5) Turn the ADF unit upside down.
(6) Release the two Pins on the ADF unit and remove the Document pressure bar
from the ADF unit.
(7) Remove the one screw (
TAPTITE CUP B M3x10 ) and remove the ADF
reinforcement plate from the ADF unit.
(8) Remove the Earth spring from the ADF unit.
Fig. 3-61
(9) Turn the ADF unit right side up.
(10)Remove the five screws (TAPTITE CUP B M3x10) from the Upper document chute.
(11) Release the three Hooks and remove the Upper document chute from the Document
cover ASSY.
Fig. 3-62
Pin
Hook
Pin
Earth spring
ADF unit
TAPTITE CUP B M3x10
6a
6c
8
Earth spring
6b
7b
7a
ADF reinforcement plate
Document pressure bar
TAPTITE CUP
Hook
Hook
Upper document chute
Document cover ASSY
TAPTITE
M3x10
TAPTITE CUP B M3x10
10a
10b
Hook
CUP B
B M3x10

Brother MFC-J6920DW Specifications

General

Type	all in one
Tray Capacity	500
Automatic Document Feeder Capacity	35 sheets
Paper Size	11" x 17"
Paper Handling	up to 500 sheets
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 6000 x 1200
Print Resolution Color	up to 6000 x 1200
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 2400 x 1200
Copier Resolution Color	up to 2400 x 1200
Fax Function	yes
Cartridges	lc103bk/c/m/y
Number Of Cartridges	4
Internal Memory	no
Memory Card	yes
Network	wireless
Connectivity	usb
OS Compatibility	pc: windows server 2003, server 2003 r2, server 2008, server 2008 r2, server 2012, xp home, xp professional, vista, 7 or 8, mac: os x v10.6x, 10.7x or 10.8x
Mobile Devices Connection	yes

Weight and Dimensions

Height	21.9 inches
Width	17 inches
Net Weight	36.4 pounds
