Brother MFC-J6920DW Service Manual

3-65
Confidential

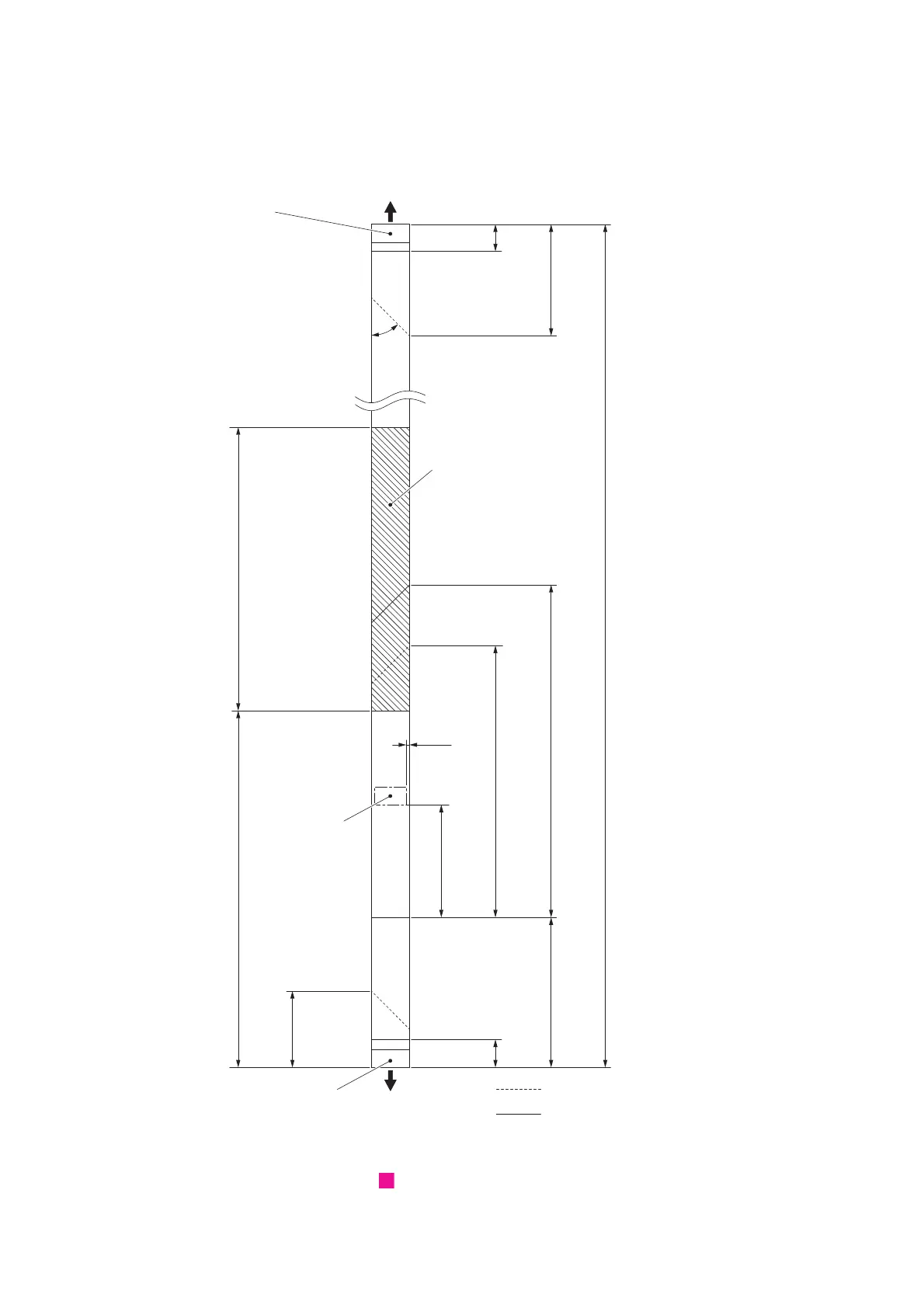

Assembling Note: Assemble a new Second side CIS flat cable by bending the
Second side CIS flat cable and affixing the Double-sided adhesive
tape as shown in the figure below.
Fig. 3-65
Harness routing: Refer to " ADF unit and document scanner unit"
Supporting tape
Supporting tape
Tape
45°
34.04 mm
12.44±1
mm
66.9±1
mm
50.2±2
mm
153.87±1
mm
180.92±1
mm
785±8
mm
1.5±1 mm
(191.7 mm)
(126.2 mm)
49.67±1
mm
12±1.5
mm
Double-sided
adhesive tape
To main body
To CIS unit
Valley fold
Mountain fold
4

Brother MFC-J6920DW Specifications

General

Type	all in one
Tray Capacity	500
Automatic Document Feeder Capacity	35 sheets
Paper Size	11" x 17"
Paper Handling	up to 500 sheets
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 6000 x 1200
Print Resolution Color	up to 6000 x 1200
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 2400 x 1200
Copier Resolution Color	up to 2400 x 1200
Fax Function	yes
Cartridges	lc103bk/c/m/y
Number Of Cartridges	4
Internal Memory	no
Memory Card	yes
Network	wireless
Connectivity	usb
OS Compatibility	pc: windows server 2003, server 2003 r2, server 2008, server 2008 r2, server 2012, xp home, xp professional, vista, 7 or 8, mac: os x v10.6x, 10.7x or 10.8x
Mobile Devices Connection	yes

Weight and Dimensions

Height	21.9 inches
Width	17 inches
Net Weight	36.4 pounds
