Brother MFC-J6920DW Service Manual

3-118
Confidential

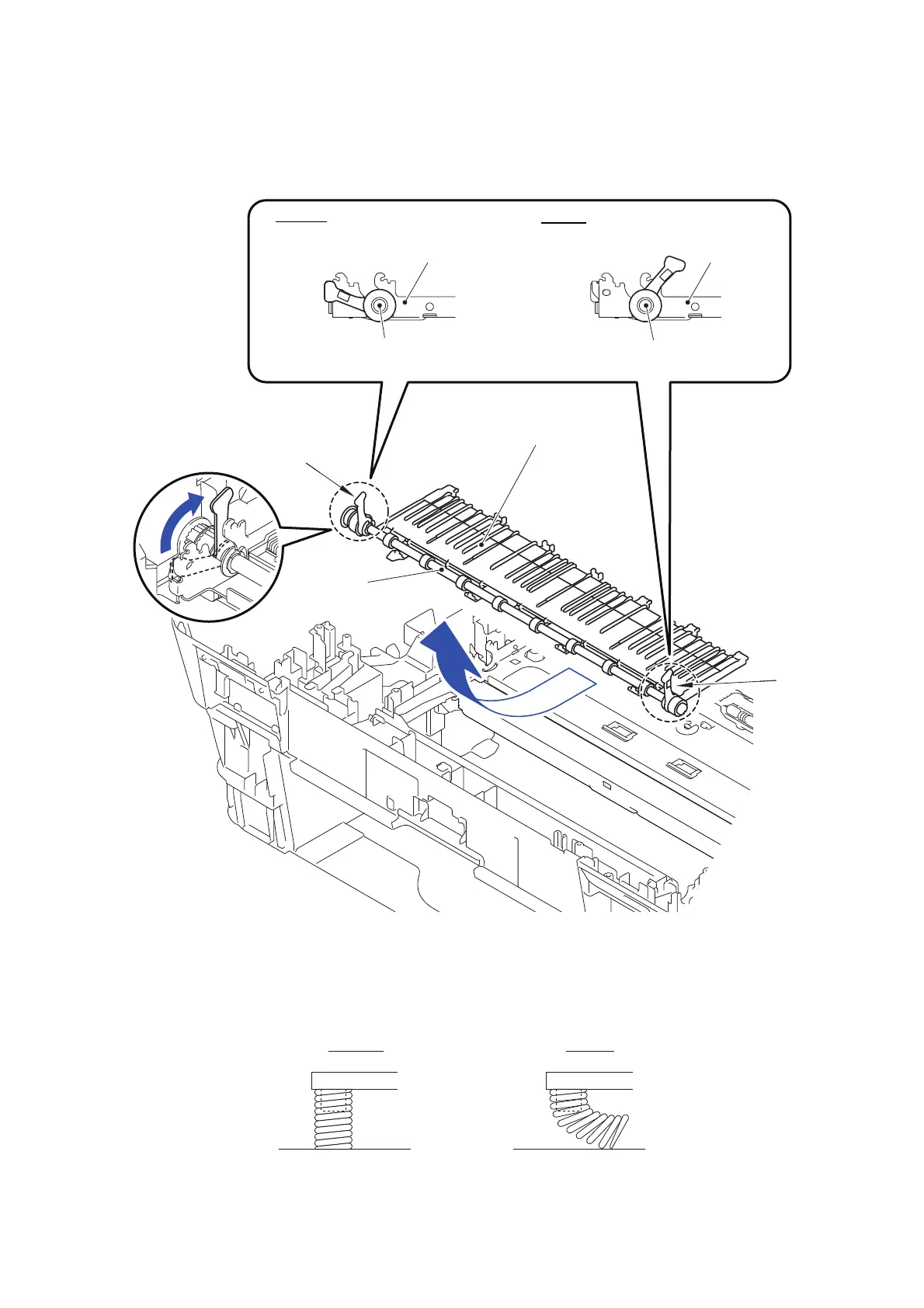

(2) Hold the section “A” and remove the Paper ejection roller and Platen.
Assembling Note: Mount the paper ejection roller with its bushing lever tilted forward
as shown below.
Fig. 3-141
Assembling Note: Platen springs should not be bent or turned over.
Fig. 3-142
“A”
2a
2b
“A”
Platen
Paper ejection
roller
Platen
Platen
Paper ejection roller
Paper ejection roller
<Front>
<Front><Rear>
<Rear>
Correct
Wrong
Wrong
Correct
